WHEELS AND TIRES
Examine wheels and tires periodically for correct inflation
pressures, tight wheel bolts, and any physical damage
that may be a detriment to tractor operation and operator
safety. Correct condition prior to tractor operation.
Tire Inflation Pressures
Maintaining correct tire pressure will help insure tire long
life. If tires have deep scratches, cuts or punctures, the
respective tire should be repaired or replaced by qualified
personnel as soon as possible.
IMPORTANT: If necessary to replace any tire(s), ensure
original tire size is used. This is particularly true
on 4WD models to ensure correct amount of
front axle overspeed (or lead) is maintained.
Wheel Bolt Torque
FIG. 6: Periodically check all wheel bolt torques. Correct
bolt torques:
m
CAUTION: Correct wheel bolt torque must
be maintained. Installation of front mounted
implements (ex; loaders) impose increased
loads and require frequent checking of
wheel bolts.
Type Tires Tire
Location / Size
Pressure
PSI (KPA)
Ag
Ag
Front
Rear
9.5-16 - 6PR
13.6-28 - 6PR
31 (216)
20 (137)
Ag Front 35 x 12.0 - 16.5 25 (174)
Ag Rear 14.9 - 28 - 6PR 16 (111)
Turf Front 29 x 12.00-15 - 4PR 23 (157)
Turf Rear 475/65D - 20 - 4PR 11 (78)
Industrial R4 Front 10 x 16.5 30 (209)
Industrial R4 Rear 17.5L - 24 20 (137)

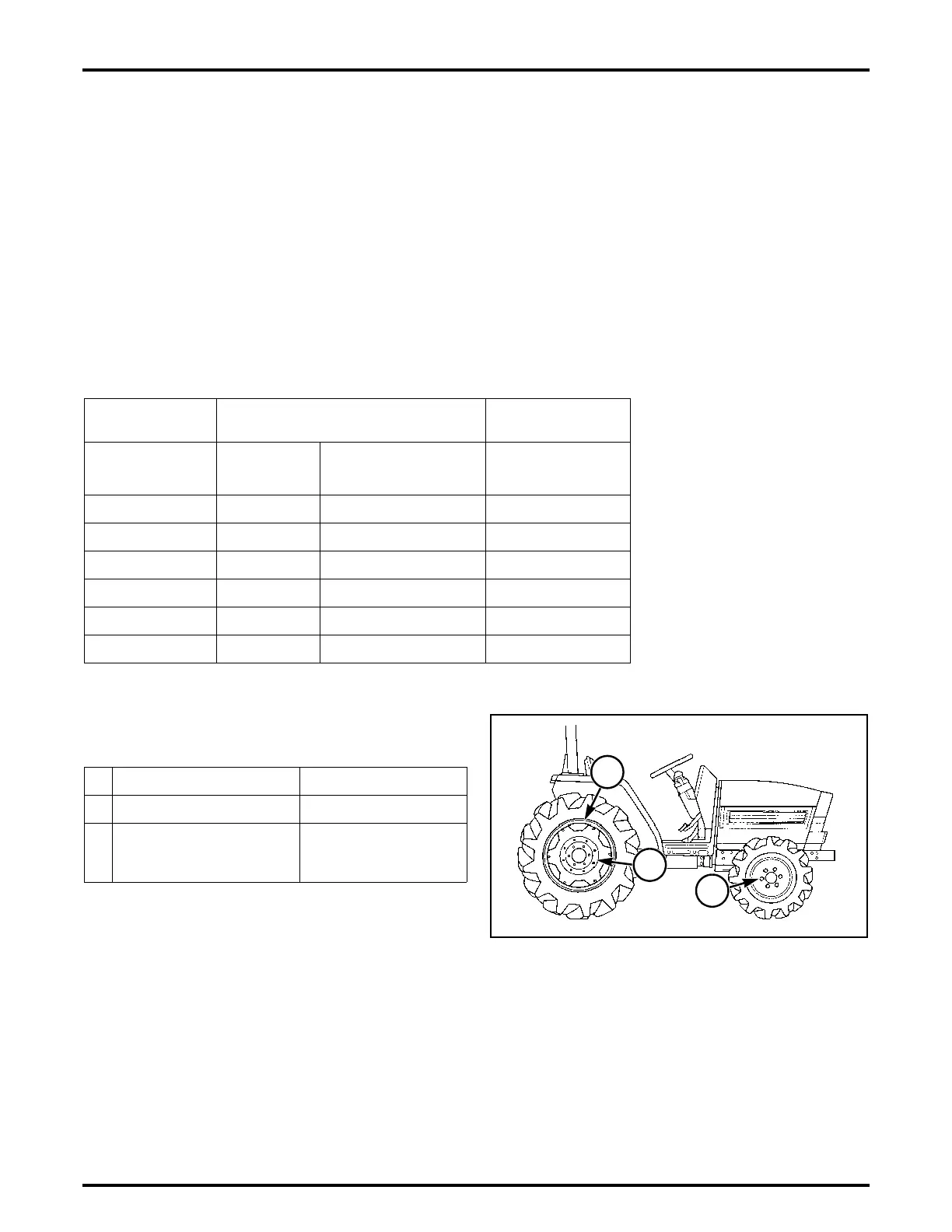

FIG. 6
I5261
3
2
1
1 Front Wheel Bolts 120 ft/lbs (163 Nm)
2 Rear Wheel Bolts 120 ft/lbs (163 Nm)
3
Rear Wheel Center to
Rim Bolts
(Ag. Tires Only)
120 ft/lbs (163 Nm)
