Separation Of Major Components
02-12 79028569 A Rev.
SPLITTING TRACTOR BETWEEN ENGINE
AND FRONT TRANSMISSION
Parts which can be inspected during this operation:
• Flywheel
• Main Clutch
• Input Gears
Removal
Drain transmission oil.

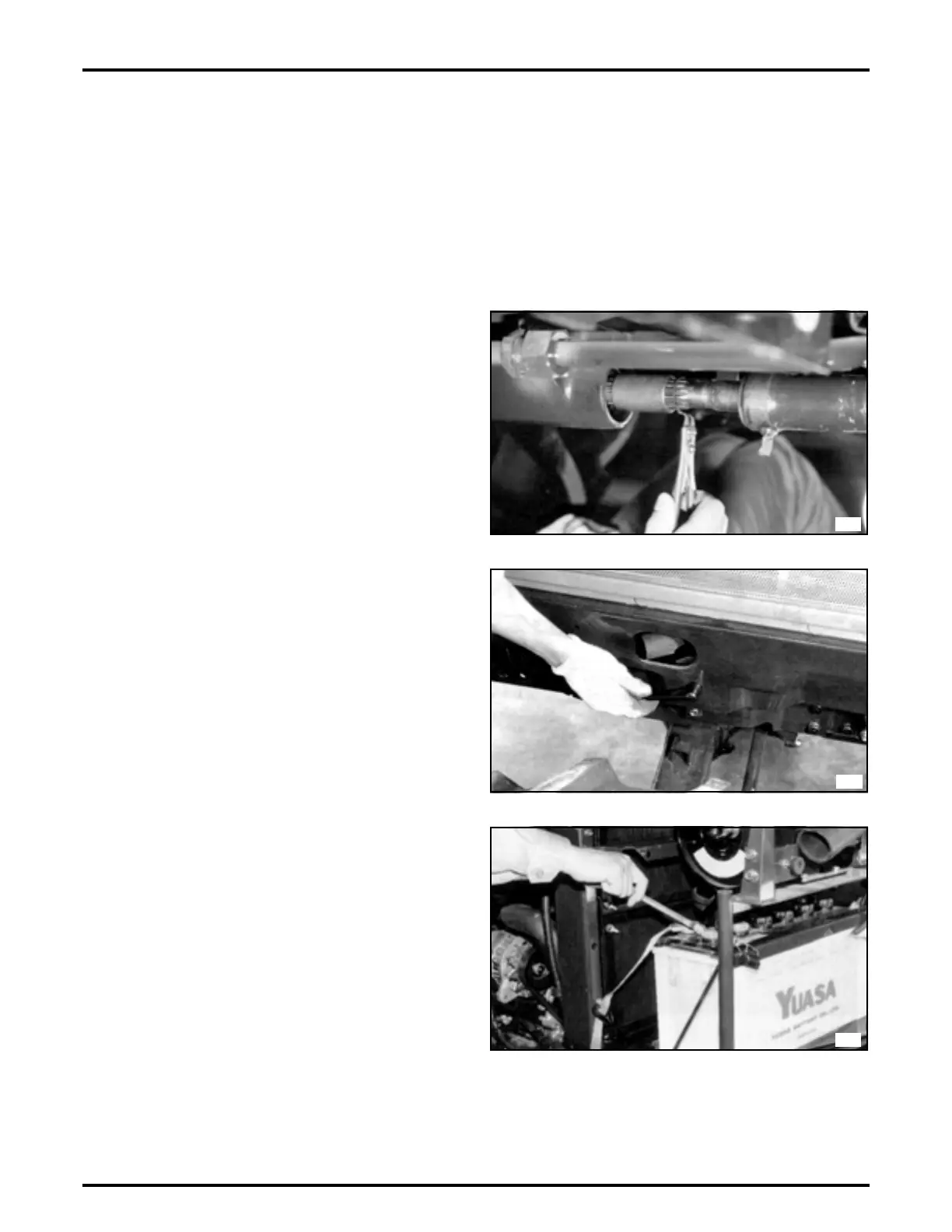

FIG. 16: Remove front wheel drive shaft (4wd only).
Support engine on the bottom with a jack or stands.
Support transmission with a jack or a crane so that rear of
tractor can be moved when needed.
FIG. 17: Remove both side covers (RH and LH) engine
and hood.
FIG. 18: Disconnect negative battery cable.
FIG. 16
I5449
FIG. 17
I3423
FIG. 18
I5451
