Separation Of Major Components

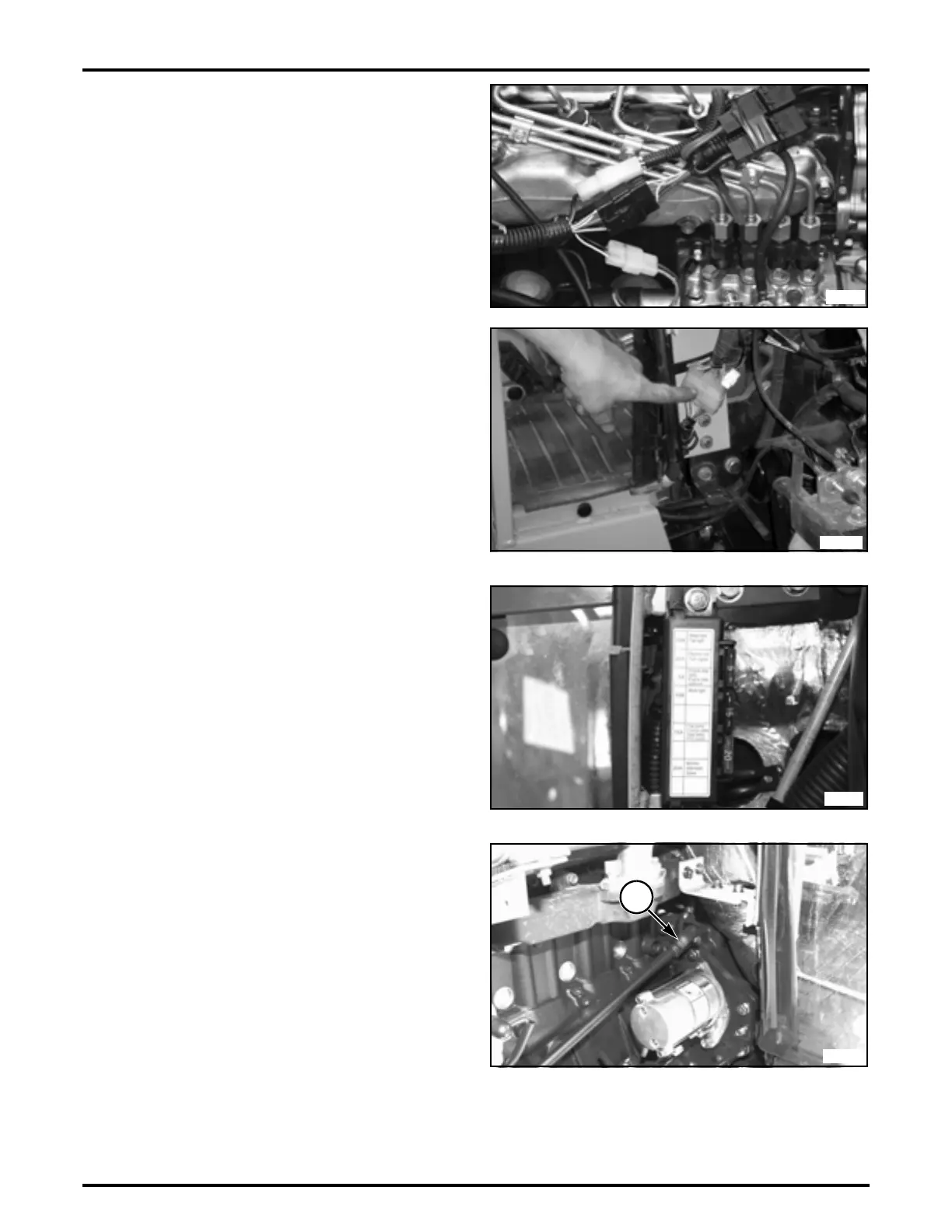

FIGS. 25–26: Disconnect the wiring for the following parts
and disconnect related couplers:
• Glow plugs
• Oil pressure switch
• Temperature gauge
• Grounding wire
•Slow Blow Fuses
• Fuel shut off solenoid
• Main harness
FIG. 27: Remove fuse holder.
FIG. 28: Remove bolt from u-joint (1) of steering shaft
assembly.
Make match marks on steering shaft and universal joint to
aid in assembly.
FIG. 25
FIG. 26
J411541
J411043N206462
FIG. 27
J411044
FIG. 28
J411517
