79028569 A Rev. 01-15
Specifications and Capacities
Front Wheel Alignment

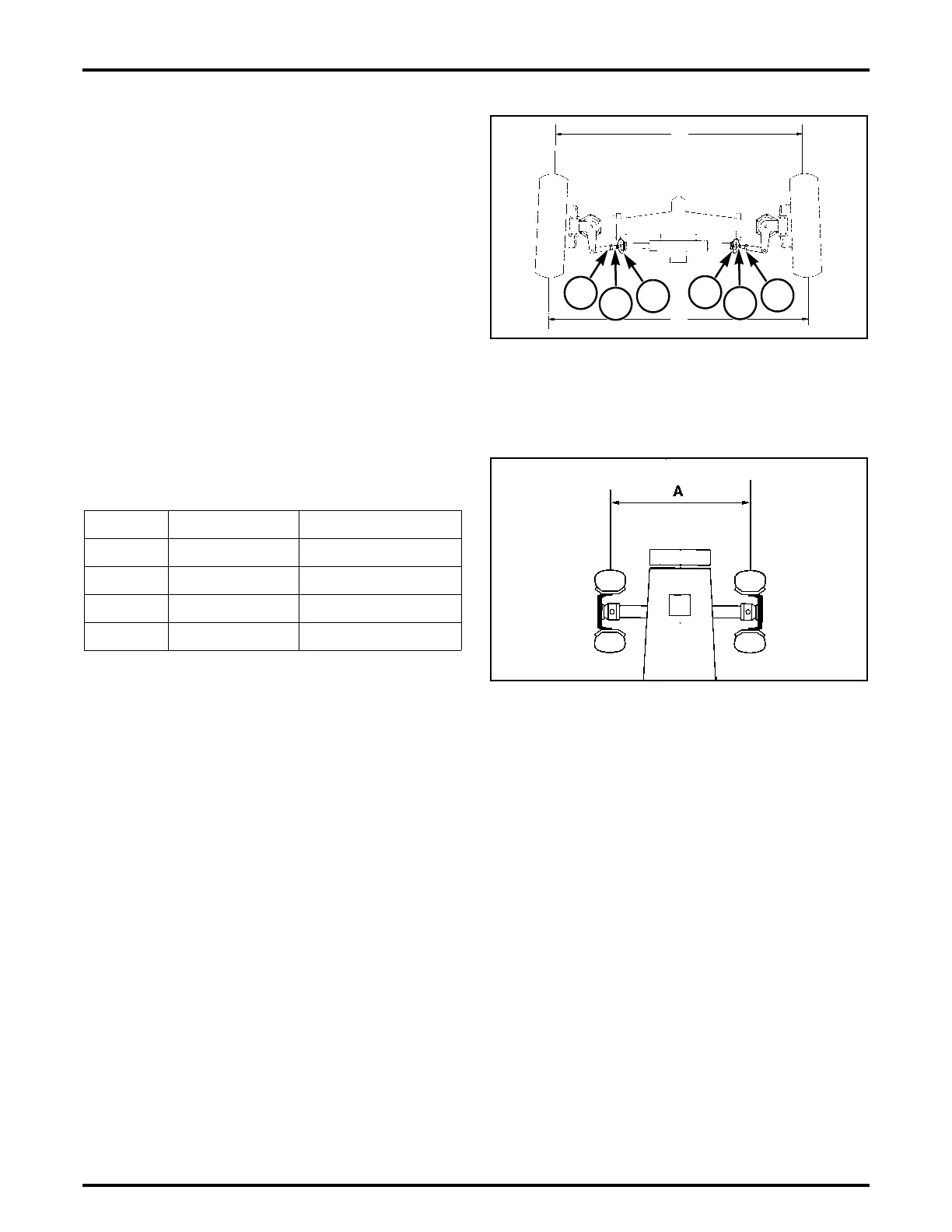

FIG. 7: Correct toe-in dimension of front wheels (A
minus B) is 0.08 to 0.24 in (2-6 mm).
NOTE: Measure toe-in from the tire center to tire center
at a point halfway up on face of each tire.
To adjust, remove clip securing rubber boot to tie rod (3).
Loosen lock nut (2), and rotate the tie rod (3) to adjust. Tie
roll ball joints (1) should freely rotate in cylinder ends.
Adjust each side evenly. Ball joints must move freely after
lock nuts are tightened.
Wheel Spacing
Tread widths may be varied by using the following
methods, as applicable. Tread widths are measured tire
center to tire center as close to the ground as possible.
NOTE: Make certain desired settings are compatable
with implements to be used to prevent clearance
and interference problems.
FIG. 8: Front wheels - Due to design, agricultural tires or
turf tires can not be reversed.
FIG. 7
I5262
2
3
1
1
3
2
B
A
FIG. 8
I3148a
Ref. Tires Settings
A (4WD) 9.5 - 16 Ag 51.8” (1315 mm)
A (4WD) 35 x 12.00 - 16.5 54.5” (1384 mm)
A (4WD) Turf 53.0” (1345 mm)
A (4WD) R4 52.5” (1334 mm)
