Separation Of Major Components
FRONT WHEEL DRIVE SHAFT (4WD)

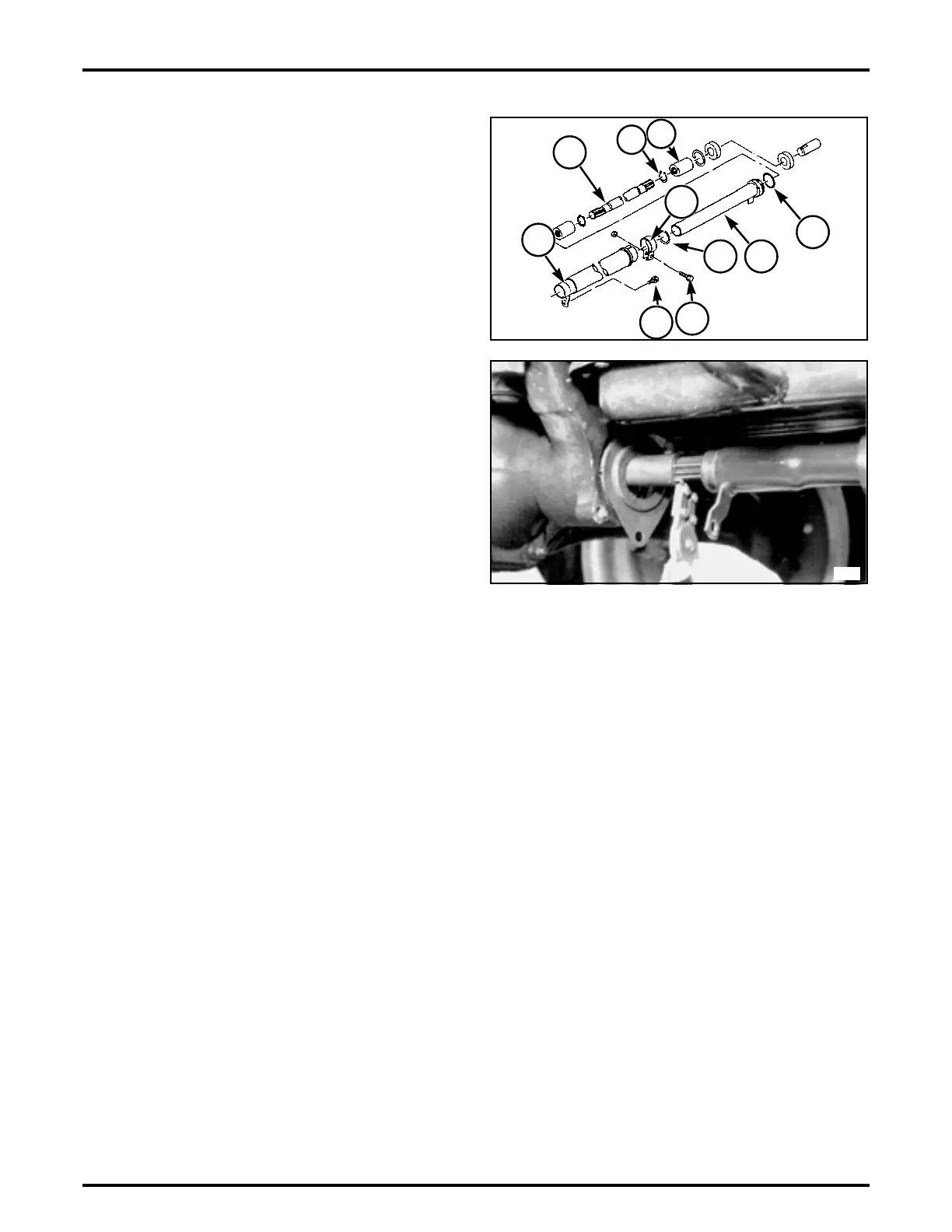

FIGS. 6–7: Drive shaft component list.
1. Drive shaft
2. Snap ring
3. Coupling
4. Tube
5. Tube
6. O-ring
7. O-ring
8. Clamp
9. Clamp bolt
10. Bolt
Removal and Installation
Loosen clamp bolt (9) holding telescoping drive tubes.
Remove bolt (10).
Slide tubes (4) and (5) together to expose couplers (3)
and snap rings (2).
Move snap rings in toward center of shaft.
Slide couplers (3) up shaft and remove shaft.
Reverse procedures to install drive shaft, making certain
snap rings are located in groove.
FIG. 6
FIG. 7
I5039
1
3
2
8
4
7
56
9
10
I3420
