79028569 A Rev. 02-13
Separation Of Major Components

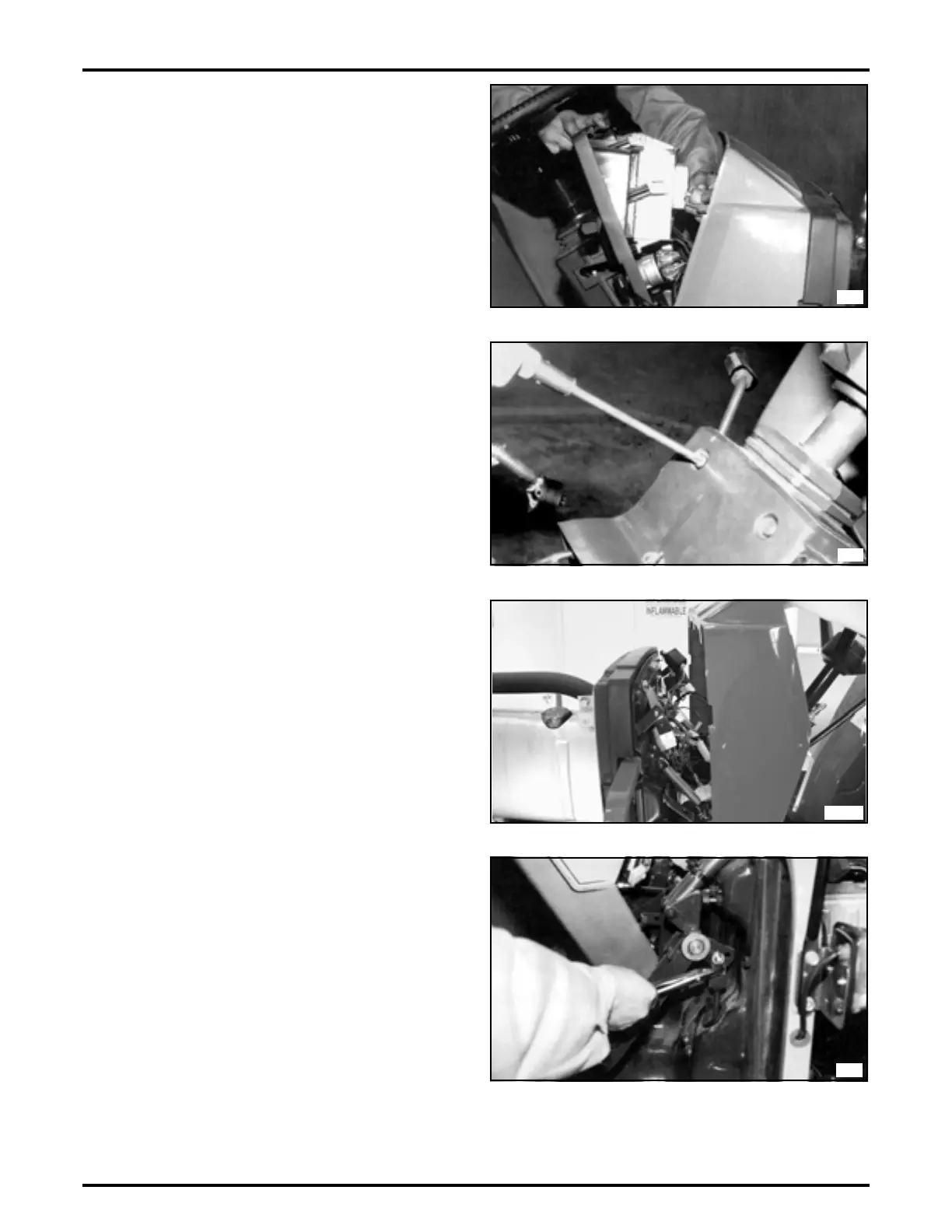

FIG. 19: Remove instrument panel.
FIG. 20: Remove steering column cover.
FIG. 21: Remove the shroud around the instrument
panel.
NOTE: When removing shroud, take care not to damage
the panel brace and observe how the couplers
pass through the upper part of the brace.
FIG. 22: Remove both brake rods (RH and LH) by
removing retaining pins from upper ends.
FIG. 19
I5452
FIG. 20
I5454
FIG. 21
J411026
FIG. 22
I5455
