Chamberlain RSW12UL - Manual Disconnect; Operator Alarm

28

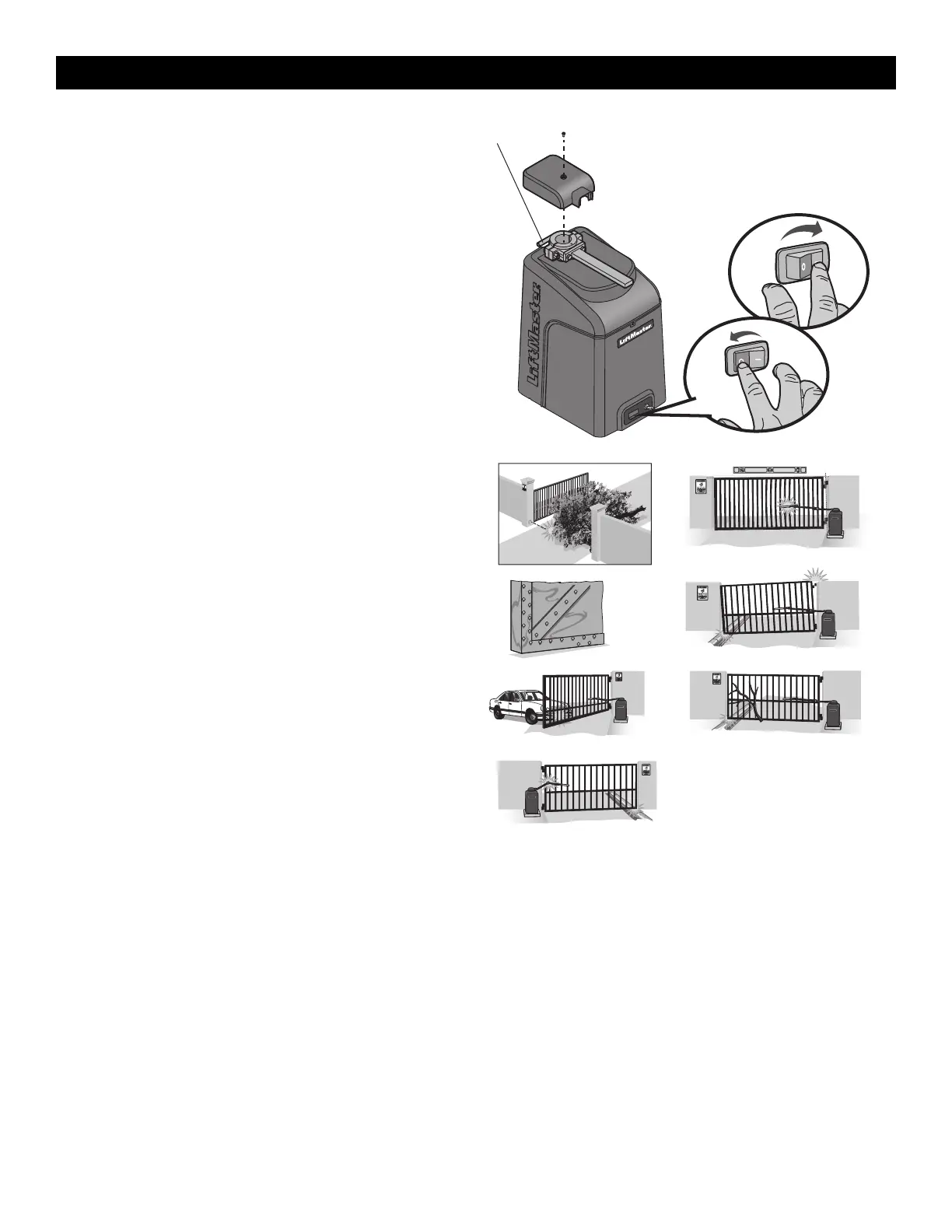

Manual Disconnect
Press the reset switch to RESET/DISCONNECT. Release the handle on
the operator arm to allow the gate to be opened and closed manually. On
a dual gate application the handle must be released on both operators.
To resume normal function tighten the handle by pushing it down.
Reset Switch
The reset switch is located on the front of the operator and serves
several functions.
Toggling the reset switch will stop a moving gate during a normal open/
close cycle, like a stop button. The operator does not need to be reset
after doing this. The reset switch will disable the gate in the present
position and will energize the solenoid lock for two minutes and disable
the maglock for two minutes.
Reset/
Disconnect
Normal operation
Manual Disconnect
Handle
Operator Alarm
When the inherent force of the operator detects the following twice
consecutively, the alarm will sound up to 5 minutes and the operator will
need to be reset.
A. The gate is hitting an obstruction.
B. The operator arm or gate is incorrectly installed.
C. The gate does not meet specifications.
D. Gate hinges are too tight or broken and the gate is not moving
freely.
E. The gate is moving and a car pushes the gate.
F. A foreign object is on the gate frame while the gate is moving.
G. The gate hits the driveway or curb and gets stuck or bent in an
awkward position.
Remove any obstructions. Press the reset button to shut off the alarm
and reset the operator. After the operator is reset, normal functions will
resume.
The operator alarm will beep 3 times with a command if the battery is
low.
The operator alarm will beep 2 times with a command if the continuous
run force is over the threshold.
F
G
E
C D
BA
Remote control
Single Button Control (SBC) Functionality
Once the remote control has been programmed the operator will operate as follows:
When gate is in the closed position, activation of the remote control button will open the gate. During the open cycle another activation of the remote
control will stop the gate and the next activation of the remote control will close the gate.
When the gate is in the open position, activation of the remote control button will close the gate. If the remote control is activated while the gate is closing,
the gate will stop and the next activation will open the gate.
OPERATION
