41

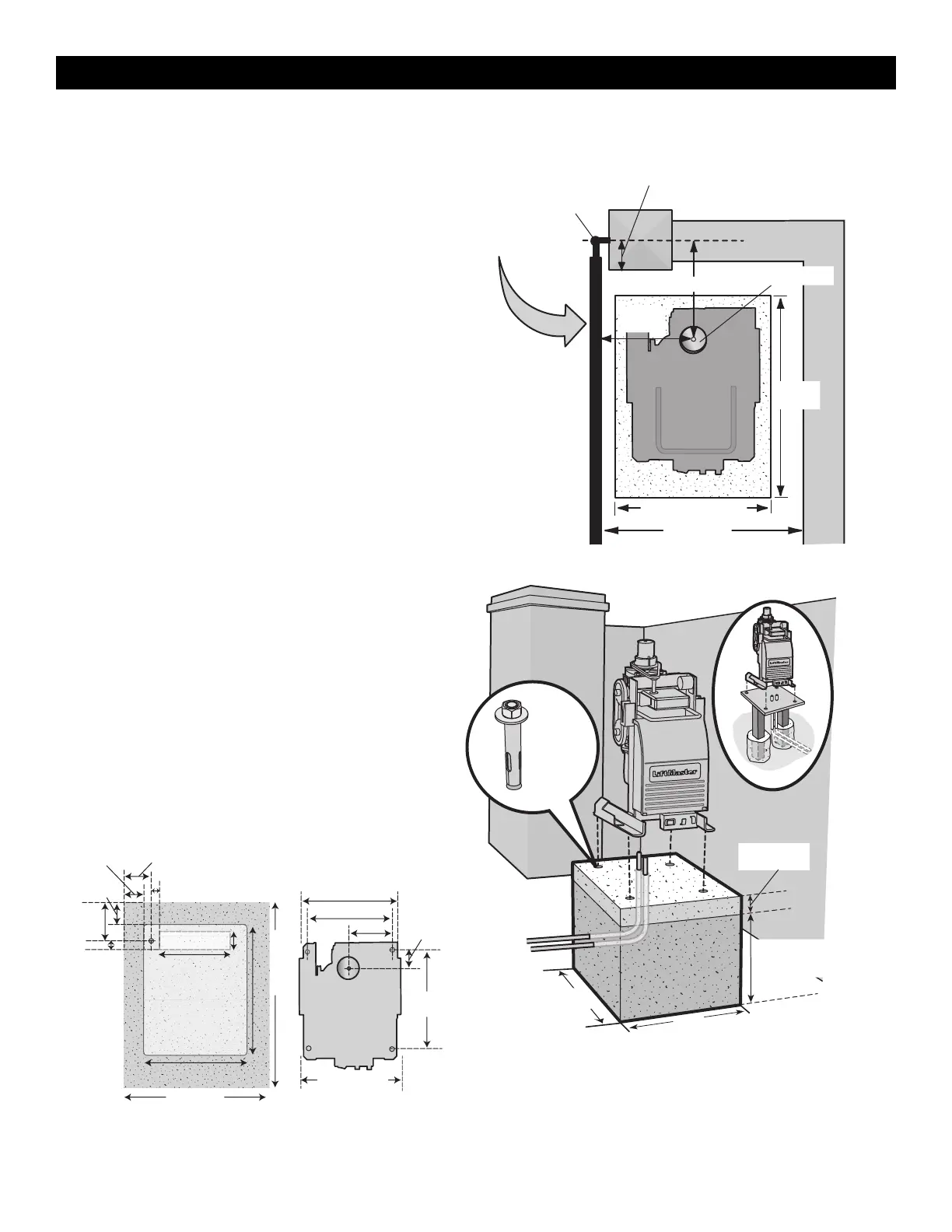

Step 1 Determine Location for
Concrete Pad and Operator
Compact Installation Only
DO NOT run the operator until instructed.
Refer to the illustration to determine the measurements and location of
the concrete pad.
NOTE: When lifting the operator use the handle to avoid damaging the
operator.
NOTE: There should only be a
maximum of 4" (10.2 cm) from the
center of the hinge to the edge of the
post or column. If the distance is
greater than 4" (10.2 cm) entrapment
protection for this area is required.
TOP VIEW OF OPERATOR AND GATE
4" (10.2 cm) maximum
Gate Hinge Center
Gate Open
90°
26-1/2" (67.3 cm)
Output Shaft Center
28"
(71.1 cm)
9"
(22.8 cm)
24"-32" (60.9-81.2 cm)
24" (60.9 cm)
Step 2 Concrete Pad and Operator
Attachment
Compact Installation Only
CHECK the national and local building codes before installation.
NOTE: When lifting the operator use the handle to avoid damaging the
operator
1. Install the electrical conduit.
2. Pour a concrete pad (reinforced concrete is recommended). The
concrete pad should be 6 inches (15.2 cm) above the ground and
deeper than the frost line. Ensure the pad is tall enough to avoid
possible flooding.
3. Secure the operator to the concrete pad with appropriate fasteners.
NOTE: An alternative to a concrete pad is to post mount the operator, see
Accessories.
Pad
15" (38.1 cm)
10" (25.4 cm)
1" (2.5 cm)
5.5" (14 cm)
4.5" (11.4 cm)
4" (10.1 cm)
1.5"
(3.8 cm)
Conduit
3" (7.6 cm)
Mounting FootprintConduit Location
2.5"
(6.3 cm)
13.6" (34.5 cm)
12.2" (31 cm)
6.1"
(15.5 cm)
20" (50.8 cm)
6.5"
(16.5 cm)
Cover Mounting Distance
14.8" (37.6 cm)
24" (61 cm)
14"
(35.6 cm)
28" (71.1 cm)
28"
(71.1 cm)
24"
(61 cm)
Post Mount
4 Concrete
Anchors
1/2" x 3 1/2"
Below the frost line.
Check all national
and local codes.
6" (15.2 cm)
Above Ground
1
2
3
