To AVOID damaging gas, power or other underground utility lines,

contact underground utility locating companies BEFORE digging

more than 18 inches (46 cm) deep.

•

ALWAYS wear protective gloves and eye protection when changing

the battery or working around the battery compartment.

Step 1 Determine Location for Concrete Pad and Operator

For compact installation refer to the Appendix for installation steps 1-4, page 41.

DO NOT run the operator until instructed.

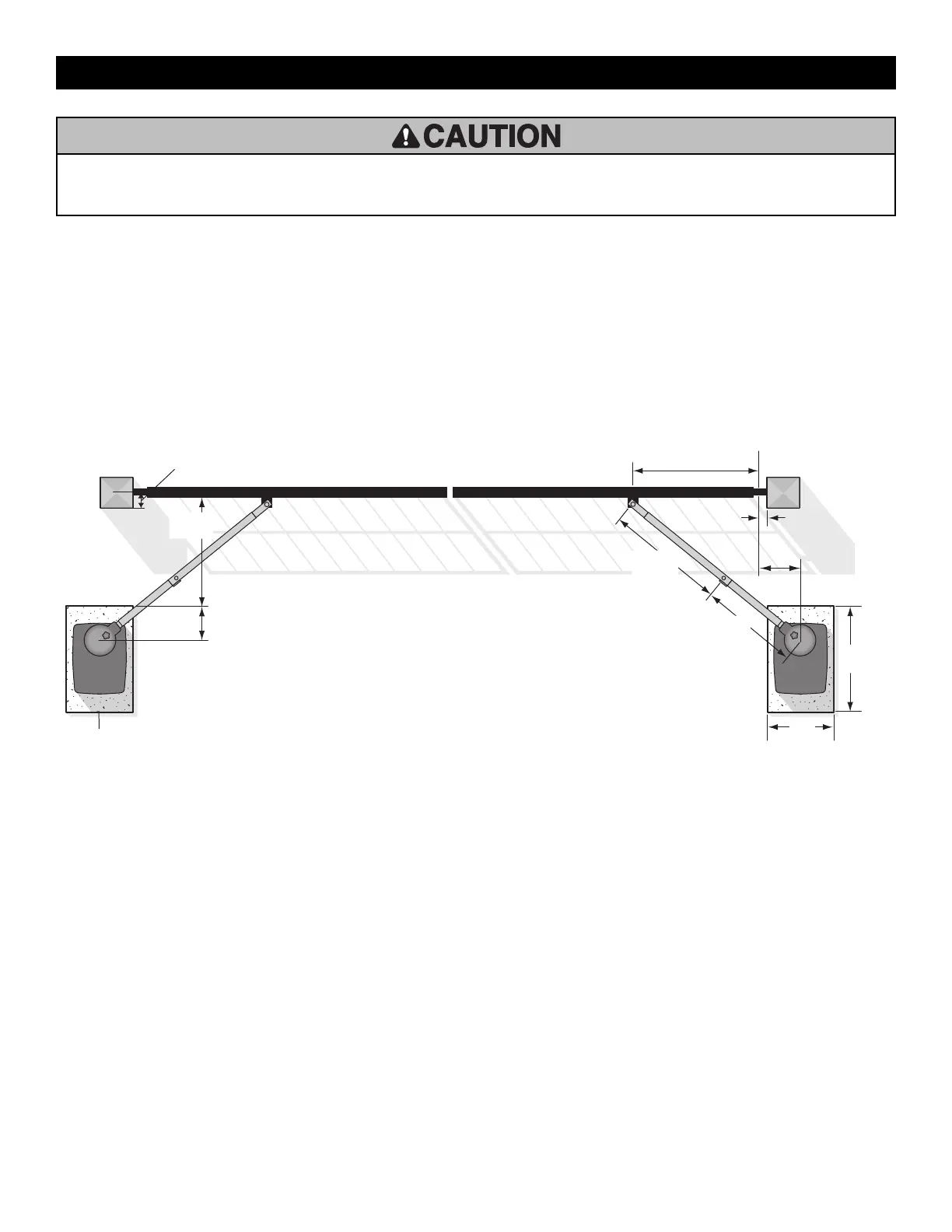

The illustration below shows the recommended dimensions for a standard installation. If these dimensions are not applicable for your installation refer to

the chart on the following page for alternate dimensions.

Standard Installation

Refer to the illustration to determine the measurements and location of the concrete pad.

NOTE: There should only be a maximum of 4" (10.2 cm) from the center of the hinge to the edge of the post or column. If the distance is greater than 4"

(10.2 cm) entrapment protection for this area is required.

Outside Property

46" (116.8 cm)

Hinge Center

2" (5.1 cm)

11"

27.9 cm)

Inside Property

Concrete Pad

10" (25.4 cm)

4" (10.2 cm) maximum

25"
