Chamberlain RSW12UL - Operator Specifications

7
Operator Specifications
Usage Classification
Class I & II
Main AC Supply
120 Vac, .5 Amps (6.5 Amps including Accessory Outlets)
System Operating Voltage
12 Vdc Battery Run / Battery Backup
Accessory Power
12 Vdc, 500mA max. for ON + SW (switched)
Solar Power Max
12 Vdc at 30 watts max.
Maximum Gate Weight/Length
400 lbs. (181.4 kg)/16 ft. (4.9 m)
600 lbs. (272.2 kg)/12 ft. (3.7 m)
700 lbs. (317.5 kg)/10 ft. (3 m)
800 lbs. (362.9 kg)/8 ft. (2.4 m)
1000 lbs. (543.5 kg)/6 ft. (1.8 m)
90 Degree Travel Time*
< 17 seconds
Maximum Travel Range*
115 degrees
Maximum Daily Cycle Rate
250 cycles/day
Maximum Duty Cycle
Continuous
Operating Temperature
Without Heater: -20°C to 60°C (-4°F to 140°F)
With Optional Heater: -40°C to 60°C (-40°F to 140°F)
Expansion Board
Optional
External Entrapment Protection Device Inputs (non-
contact and/or contact)
Main board - up to 2 close entrapment protection devices and 1 open entrapment
protection device.
Expansion board - up to 3 entrapment protection devices configurable to either close or
open and up to 84 edge sensors using wireless edge sensor kit model LMWEKITU.
*Travel time and range are affected by A and B mounting dimensions, see INSTALLATION.

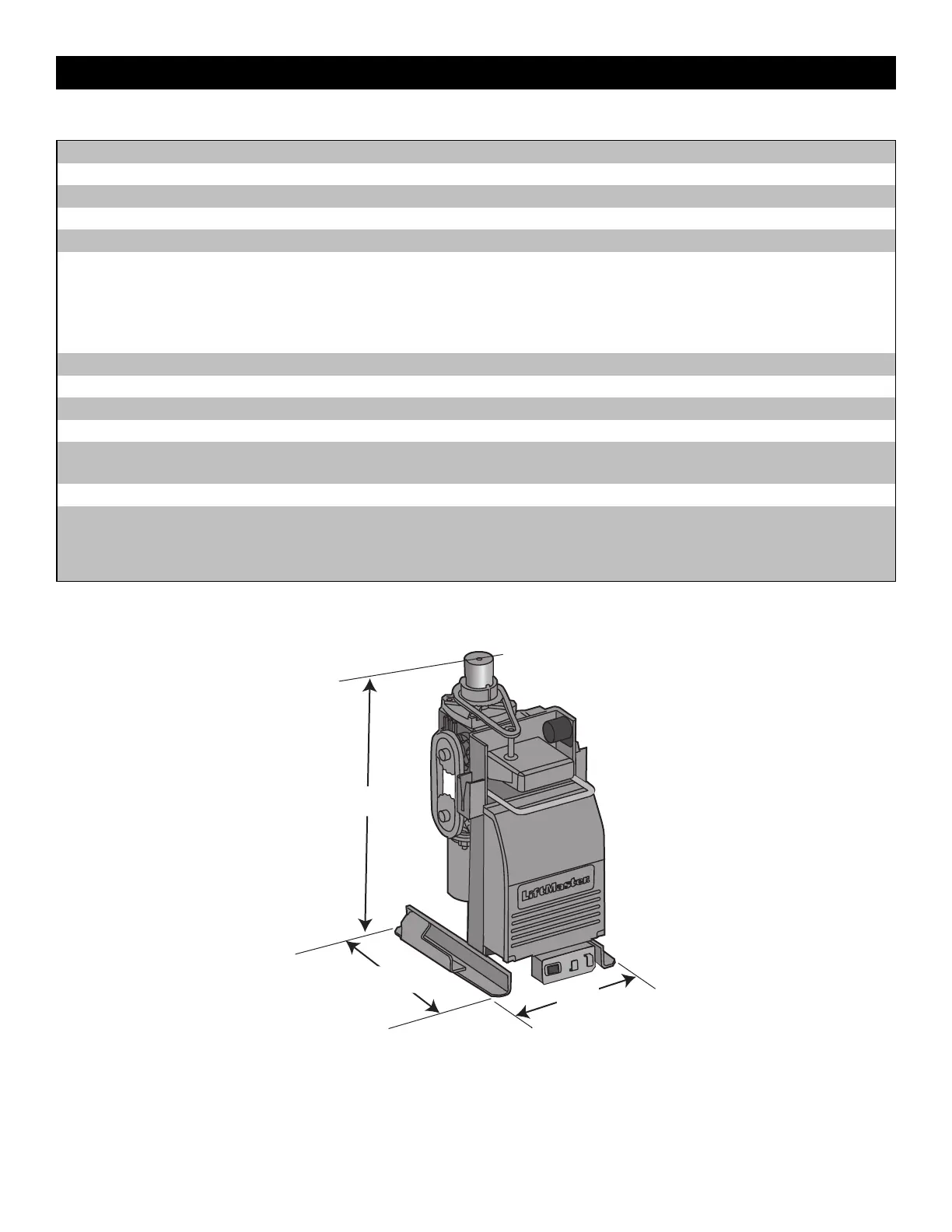

27.7"
(70.3 cm)
14.8"
(37.6 cm)
18.8"
(47.7 cm)
