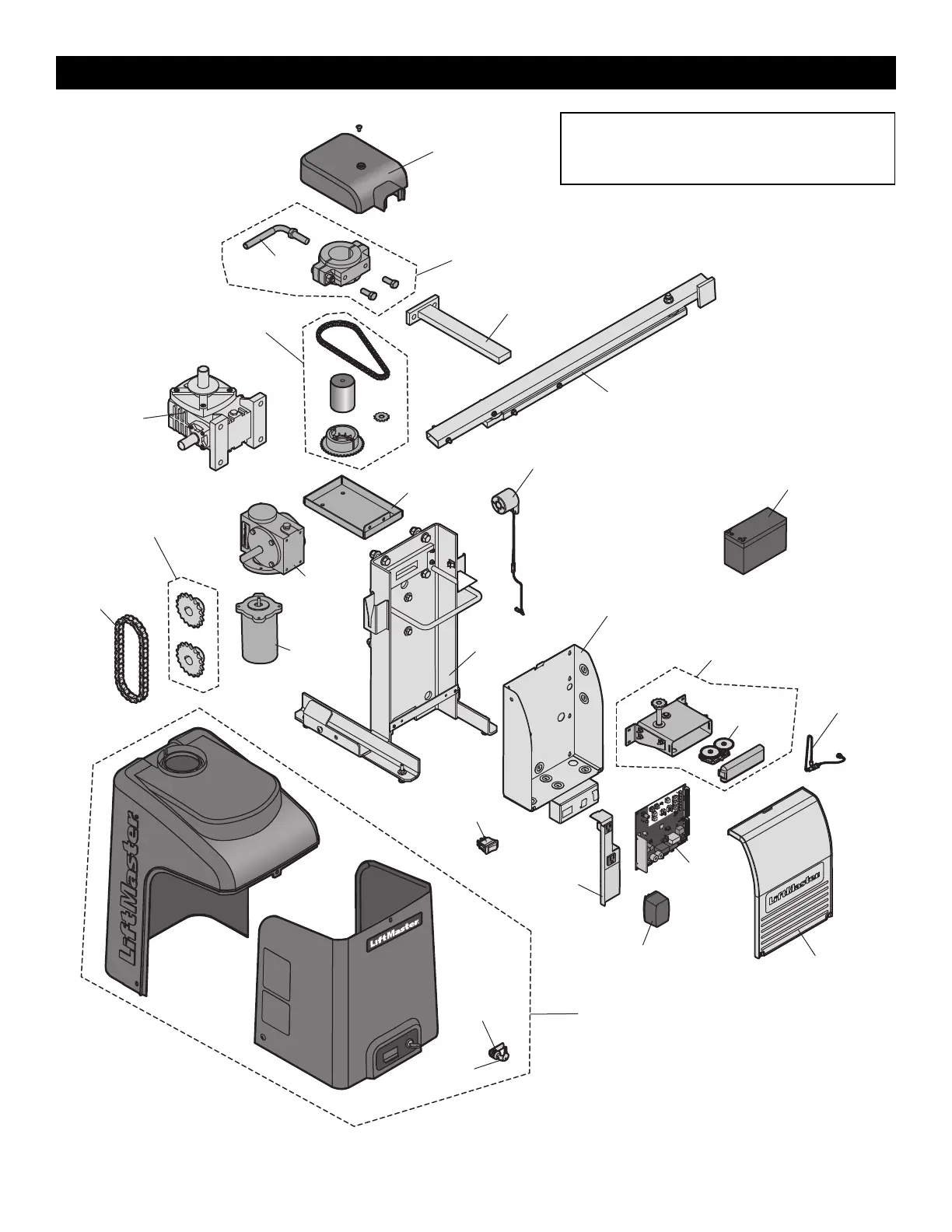

Chamberlain RSW12UL - Repair Parts

49
NOT SHOWN
K94-37336 Wiring Harness with product ID assembly
K94-37230 Battery Harness (for 7AH batteries)
K94-37236 Battery Harness (for 33AH batteries)
Output Arm
Q059
Release Handle
Q060
Cludge Assembly
Q061
Output Shaft with sprocket,
#35 limit chain, and APS sprocket roll pin
K77-36539
Gear Box (top)
K32-34656-1
Gear Reducer Sprockets
with set screws and key
K70-35678-1
Battery Tray
K10-36395
Gear Reducer
(bottom)
K32-36513-1
Motor, 1/8 HP,
12 Vdc
K77-37334
Chassis
K73-36109-1
Electrical Box
K77-37335
Reset Switch
K180A0357
120V receptacle
assembly
K76-37016
Front Cover (gray)
K77-39425
Lock and Keys
K75-36260
Operator Cover with labels,
keys, and lock assembly
K77-39430
Plug-in Transformer
APOW3
Main Board
with heat sink
K1D8389-1CC
Dust Guard
K13-34729
Antenna
K77-36541
APE Assembly
K1A6408
APS Encoder with cable
K76-34644
Battery, 7AH, 12 Vdc
29-NP712
Alarm with harness
K94-35152
Keys
Q118
#41 Drive Chain and
Master Link
K19-41043M
Standard Arm Assembly
Q104
Cludge Cover
K13-36117-1
REPAIR PARTS
