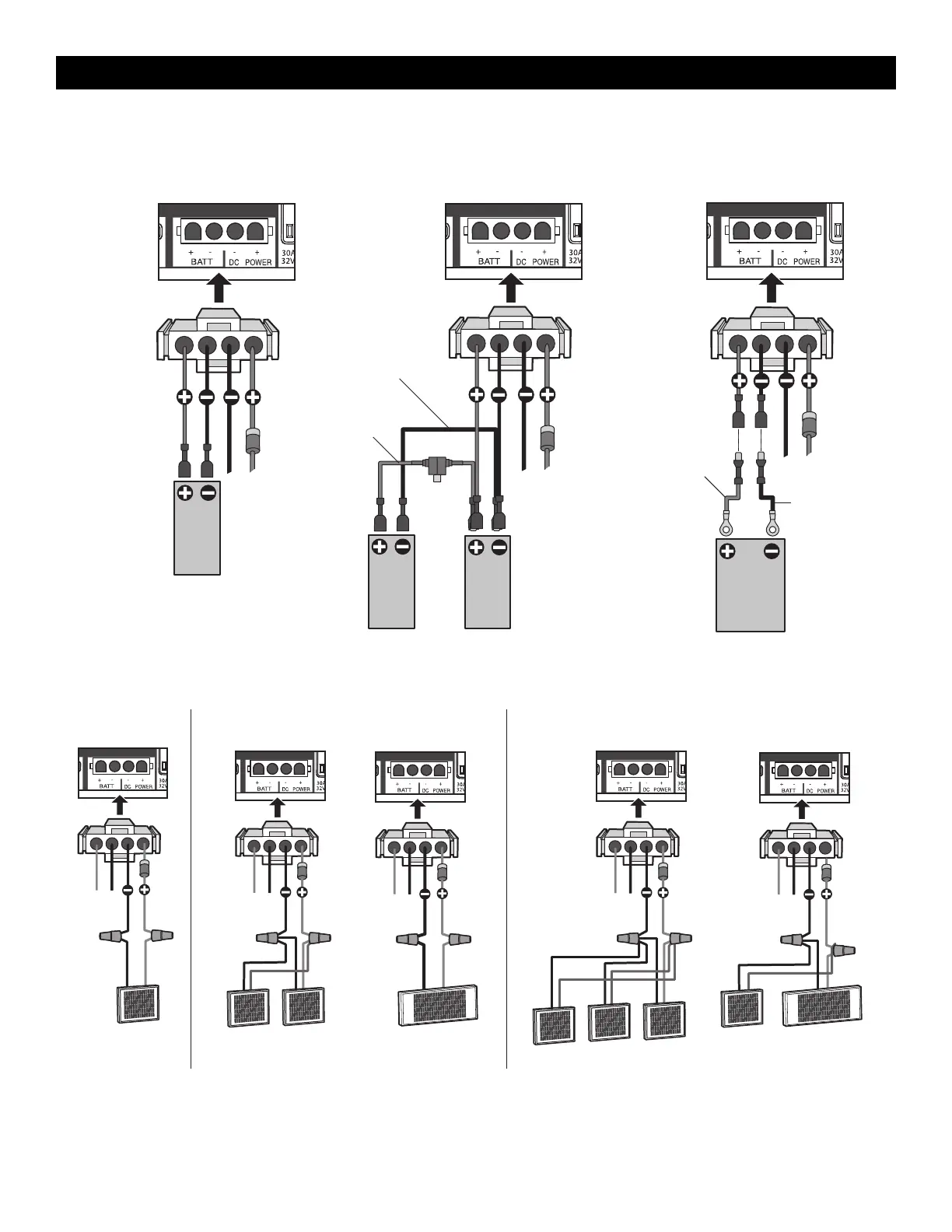

Wire the Batteries
Solar panel applications require the Solar Harness Kit model K94-37236, see Accessories.
To “BATT DC POWER”
input on control board
To “BATT DC POWER”
input on control board
To “BATT DC POWER”
input on control board
To Solar Panels
To Solar Panels
Fuse
To Solar Panels
ONE 7AH BATTERY
TWO 7AH BATTERIES
IN PARALLEL
ONE 33AH BATTERY
Black jumper wire
for two 7AH
battery connections
Red wire for
33AH battery
connections
Black wire for
33AH battery
connections
Red jumper wire
for two 7AH battery
connections
Wire the Solar Panels
10W APPLICATION
IN PARALLEL
20W APPLICATION
IN PARALLEL
30W APPLICATION
IN PARALLEL
To Battery(ies) To Battery(ies) To Battery(ies) To Battery(ies) To Battery(ies)
10W 10W 10W
10W
10W
10W
10W
20W 20W
Proceed to the Dual Gate section (if applicable) or proceed to the Adjustment section.
