37
2
1
11
7
3
8
6
4
5
9
10
10
KEY PART
NO. NO. DESCRIPTION
1 41C76 Belt cap and sprocket
2 41B4245 Line cord
3 41B4375-3 Terminal block with screws
4 41A6281 Wire harness kit
Complete with: Battery wires and
plug light socket wires and plug
RPM/passpoint wires with plug
5 41D794 Motor with travel module
6 41DB002-2 Receiver logic assembly
KEY PART
NO. NO. DESCRIPTION
7 41A6231 End panel with battery door and screw
8 41C190 Transformer and harness
9 41D504-4 Cover
10 108D79 Light lens
11 4A1344 Light socket
NOT SHOWN
485LMC Battery kit

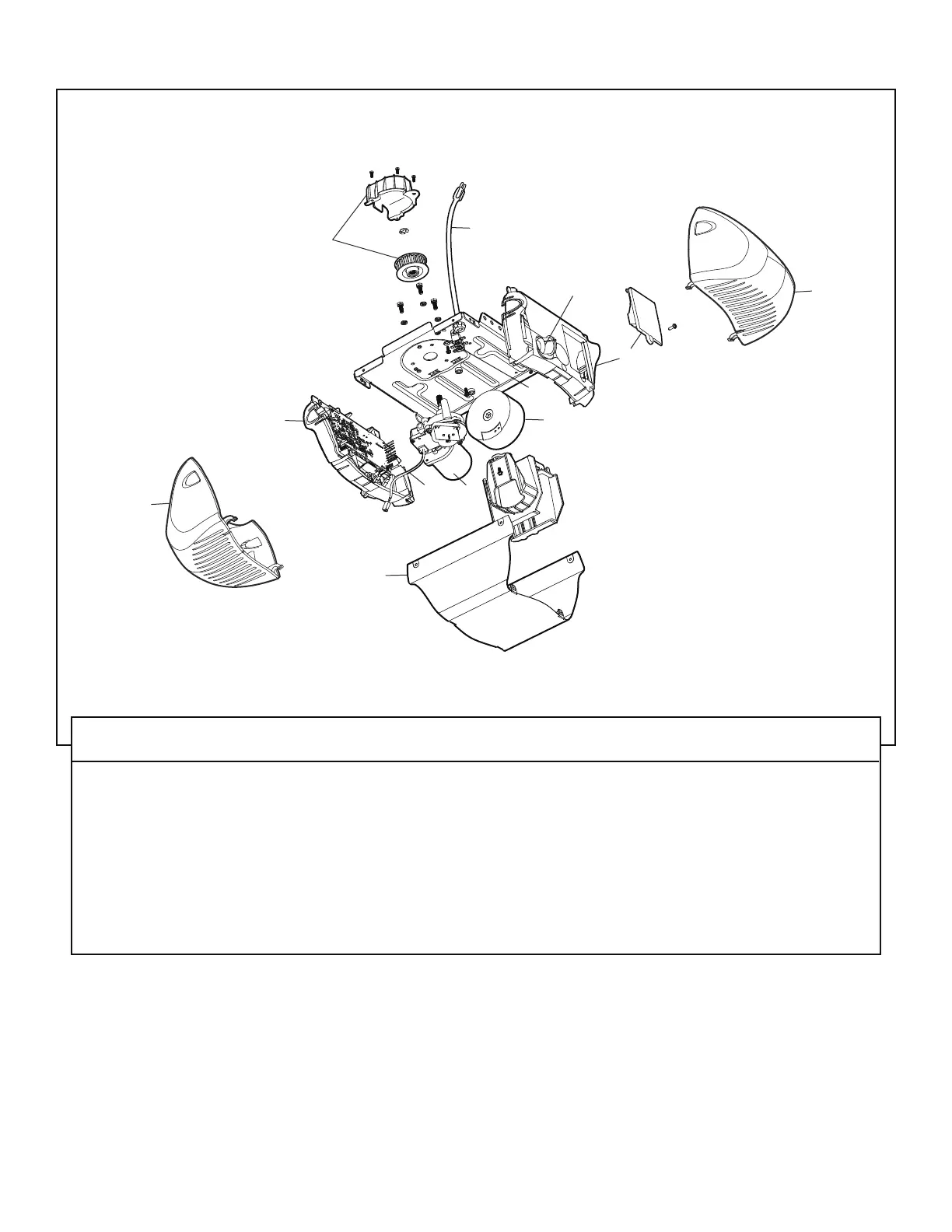

Motor Unit Assembly Parts
