Chamberlain T User Manual

10

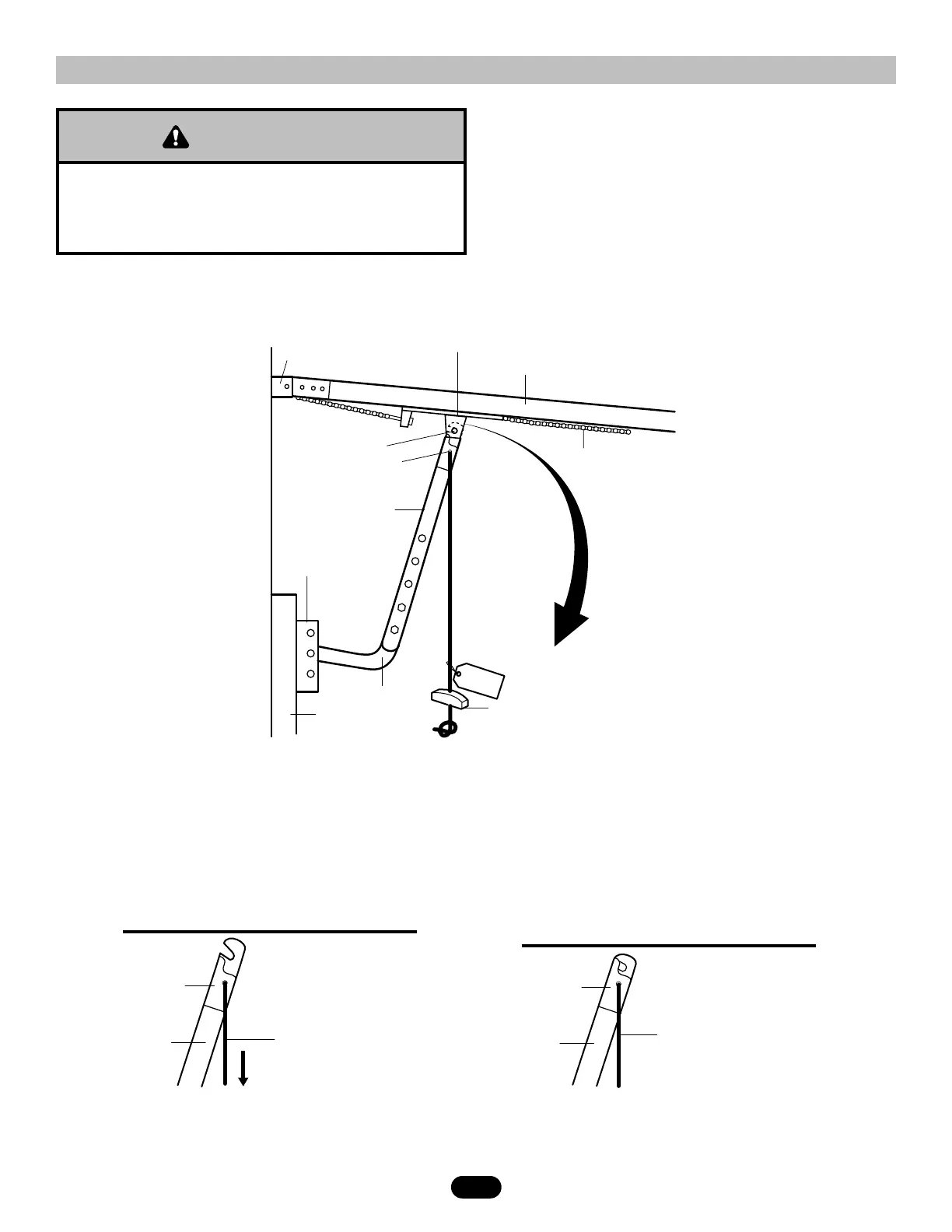

EMERGENCY DISCONNECT SYSTEM
Pull emergency
release handle
straight down.
Emergency disconnect
will open.
Emergency
Disconnect
Door Arm
TO DISCONNECT DOOR FROM OPENER
Door arm is released from trolley when emergency disconnect
opens.
To avoid being struck by door arm, do not stand under the
rope or door arm when pulling the emergency release.
WARNING
CAUTION
WARNING
WARNING
Header
Bracket
Straight
Door Arm
Assembly
Emergency
Release
Handle
Door
Bracket
Door
Chain
Clevis
Pin
Trolley
Emergency
Disconnect
Track
Curved
Door Arm
N
O
EC
I
T
Lift free end of
door arm to trolley.
Pull emergency handle
to allow arm to engage
roll pin. Release handle.
Emergency disconnect
will close.
Emergency
Disconnect
Door Arm
TO RECONNECT DOOR ARM TO TROLLEY
