9
3
2

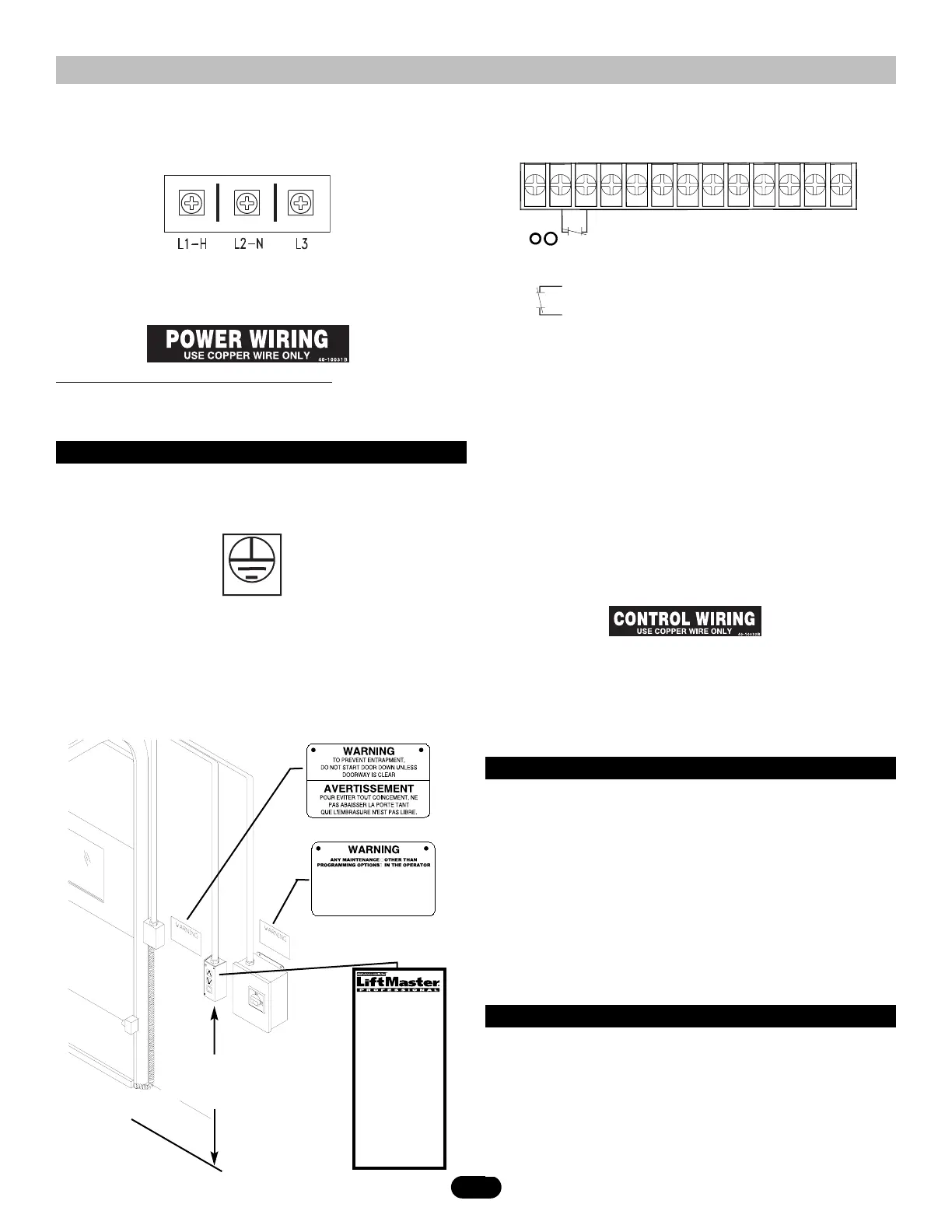

POWER WIRING CONNECTIONS
1. Connect power wires coming from the main to the
captive terminal block in the electrical box enclosure
marked with the label shown below.
2. Be sure to run all power wires through the conduit hole
in the electrical box enclosure marked with the label
shown below.
CONTROL WIRING CONNECTIONS
1. Connect control wires to the TB1 terminal block located
on the Printed Circuit Board (shown below).
1 SBC
2
3
4 CMN
5 STOP
6 CLOSE
7 OPEN
8 REV
9 IR
10 DIAG
11 CMN
12 24AC+
13 24AC-
ON THREE PHASE MACHINES ONLY:
Incorrect phasing of the power supply will cause the motor
to rotate in the wrong direction.
OR IN THE AREA NEAR THE OPERATOR MUST
NOT BE PERFORMED UNTIL DISCONNECTING
THE ELECTRICAL POWER AND LOCKING-OUT
THE POWER VIA, THE MAIN DISCONNECT
SWITCH. UPON COMPLETION OF
MAINTENANCE THE AREA MUST BE CLEARED
AND SECURED, AT THAT TIME THE UNIT MAY
BE RETURNED TO SERVICE.
4 Feet
Approximate
Control
Station
Optional
Controls
Maintenance Alert
System™
If light is Flashing
it is time for routine
Door and Opener
Maintenance.
If light is Steady On,
call for immediate
service.
Service every
_______ cycles.
1. Mount Control Stations no further than (12") from each
other.
2. Mount Control Stations (12") from the door enclosure.
3. Mount WARNING NOTICE beside or below the Control
Station.
4. Mount MAINTENANCE ALERT label to either side of
control station.
1. Connect earth ground to the chassis ground screw in
the electrical box enclosure marked with the label
shown below.
2. Use same conduit entry into the electrical box as the
power wiring.
IMPORTANT: THIS UNIT MUST BE PROPERLY
GROUNDED. FAILURE TO PROPERLY GROUND THIS
UNIT COULD RESULT IN ELECTRIC SHOCK AND
SERIOUS INJURY.
40-10033B
INSTALL POWER WIRING & CONTROL STATION (CONT’D)
1 SBC SINGLE BUTTON CONTROL
2INTERLOCK
3INTERLOCK
4CMN COMMON
5 STOP STOP
6 CLOSE CLOSE
7 OPEN OPEN
8REV REVERSE
9IR INFRARED PHOTO EYES
10 MAS MAINTENANCE ALERT SYSTEM
11 CMN COMMON
12 24AC+ 24 VOLT AC
13 24AC- 24 VOLT AC
On all models with B2 control wiring, a terminal bracket
marked R1 R2 R3 is located on the outside of the
electrical enclosure. Any commercial type LiftMaster
brand receiver may be mounted to this bracket. The
operator will then open a fully closed door, close a fully
open door, stop an opening door, and reverse a closing
door from the radio transmitter. In TS control wiring the
operator will only open the door or reset the timer to close.
However, for additional door control from a 3-button
transmitter, a commercial three-channel radio receiver
(with connections for OPEN/CLOSE/STOP) is
recommended.
2. Be sure to run all control wires through the conduit hole
in the electrical box enclosure marked with the label
shown below.
3. Apply power to the operator. Press OPEN push button
and observe direction of door travel and then Press the
STOP button.
If door did not move in the correct direction, check for
improper wiring at the control station or between operator
and control station.
MOUNTING INSTRUCTIONS
RADIO CONTROLS
GROUND WIRING
