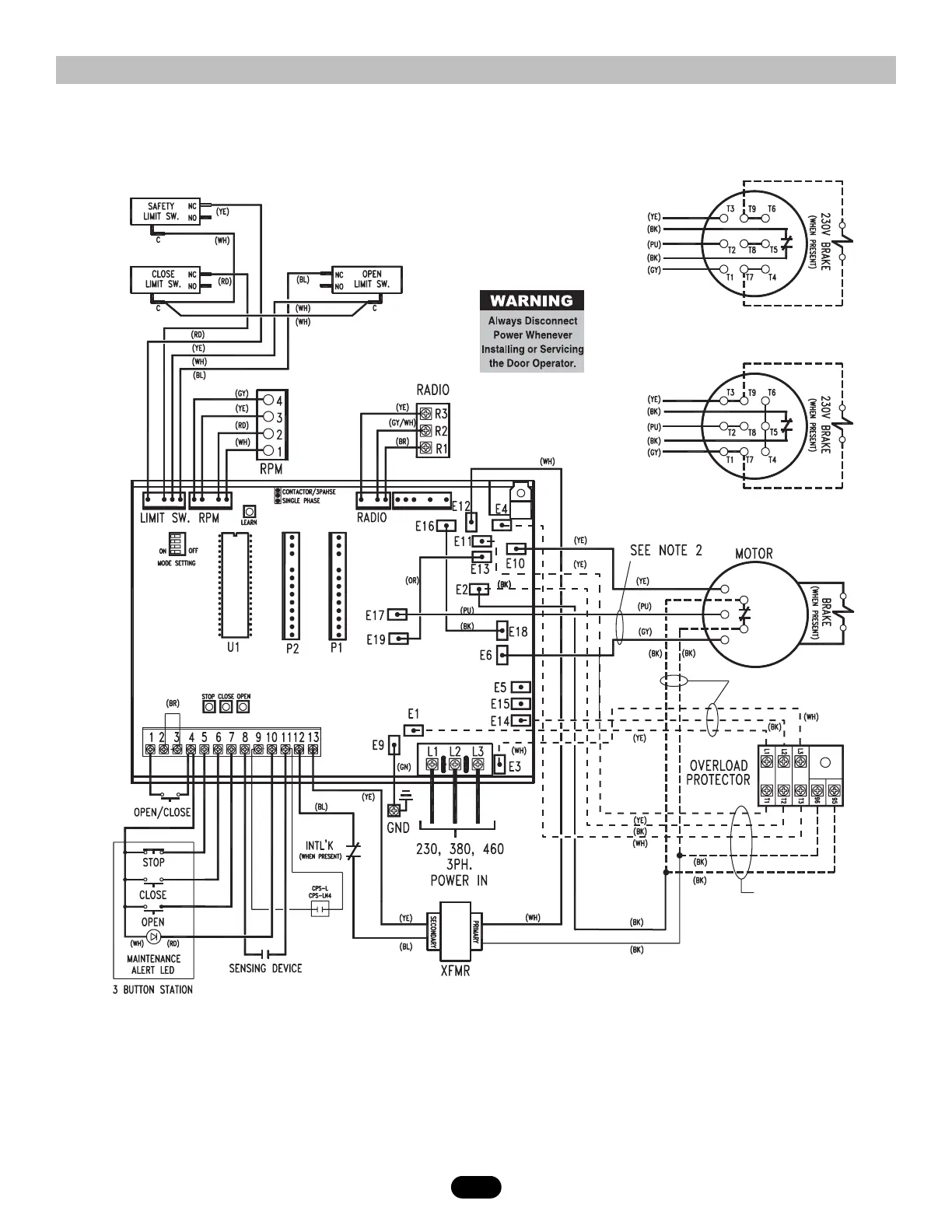

LOGIC CONTROL (VER. 2.0) 3 PHASE WIRING DIAGRAM

10120-3

230 VOLT MOTOR CONNECTION

380/460 VOLT MOTOR CONNECTION

NOTES:

1) SEE OWNER'S MANUAL FOR DIP SWITCH FUNCTIONS AND PROGRAMMING PROCEDURES.

2) TO REVERSE MOTOR DIRECTION: INTERCHANGE ANY 2 OF THE 3 POWER WIRES AT L1, L2 & L3,

OR EXCHANGE PURPLE (E17) & GREY (E16) WIRES AT LOGIC BOARD.

3) TRANSFORMER PRIMARY VOLTAGE SAME AS LINE VOLTAGE.

4) THREE PHASE UNITS MAY BE EQUIPPED WITH AN INTERNAL PILOT DUTY

THERMAL OVERLOAD DEVICE, OR AN EXTERNAL LINE MONITORING DEVICE.

(SEE NOTE 3)

(SEE

NOTE 4)

208/

MOTOR O/L LEAD

COLOR BROWN

EXTERNAL

(BL/BK)

(SEE NOTE 4)
