CLEANING
Cleaning
Turn the wash arm end plugs 1/4 turn and pull to remove, Fig. 66. Inspect the o-rings and
replace if damaged or missing. O-ring damage signicantly reduces wash performance.
2
Flush the spray arms with clean fresh water in a remote sink. Make sure the spray arm
nozzles are clear of debris, Fig.68.
Inspect the spray arm standpipe o-rings, Fig.67. Replace if damage or missing.
O-ring damage significantly reduces wash performance.
3
4
WASH AND PREWASH SPRAY ARMS (continued) —

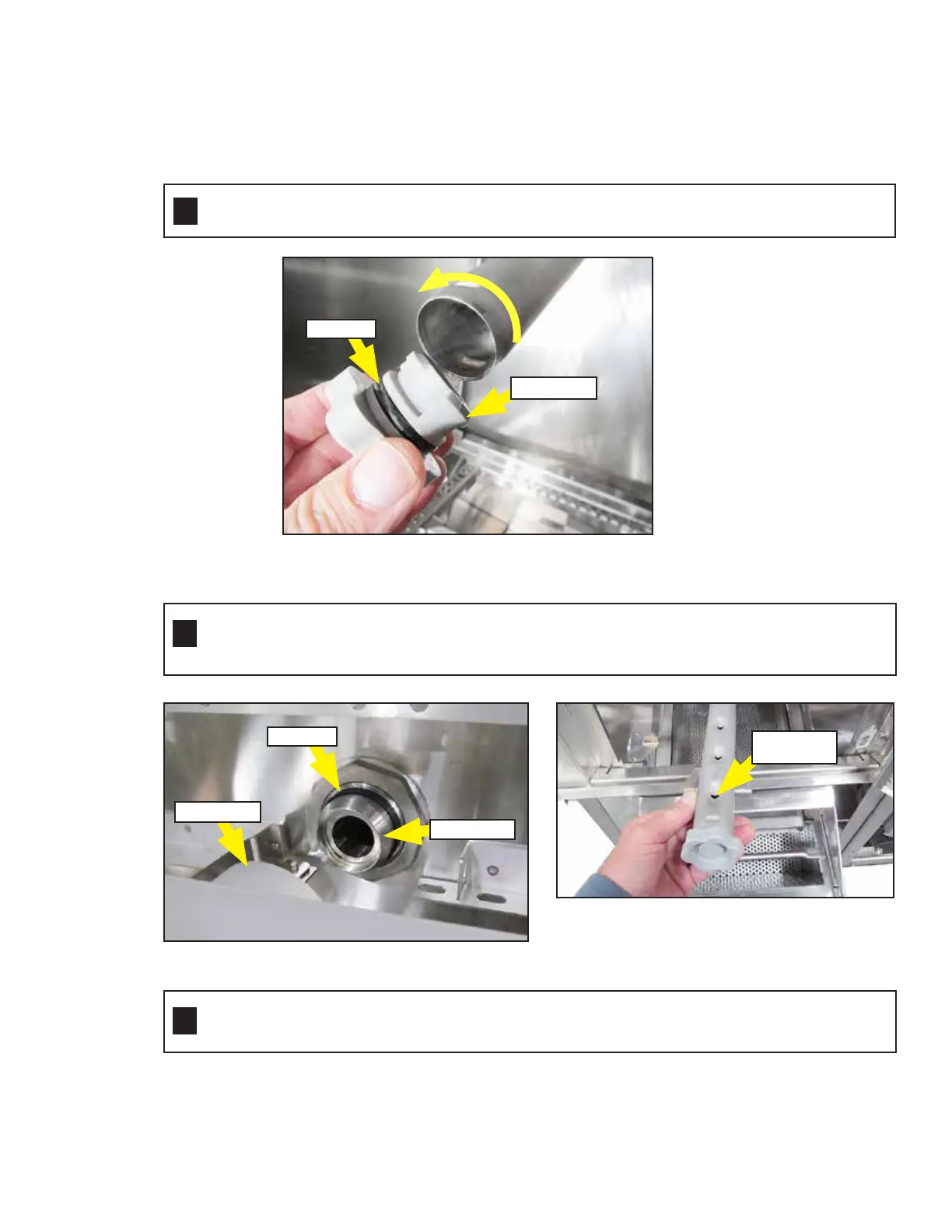

Fig. 66 -
Turn plugs 1/4 turn CCW and pull to remove. Check o-rings.
O-ring
O-ring
Spray arm
Manifold
Fig. 67 - Inspect O-rings..
Fig. 68 - Make sure spray arm nozzles are clear.
Spray arm
nozzle
End plug
