Champion 44 PRO - Page 41

33

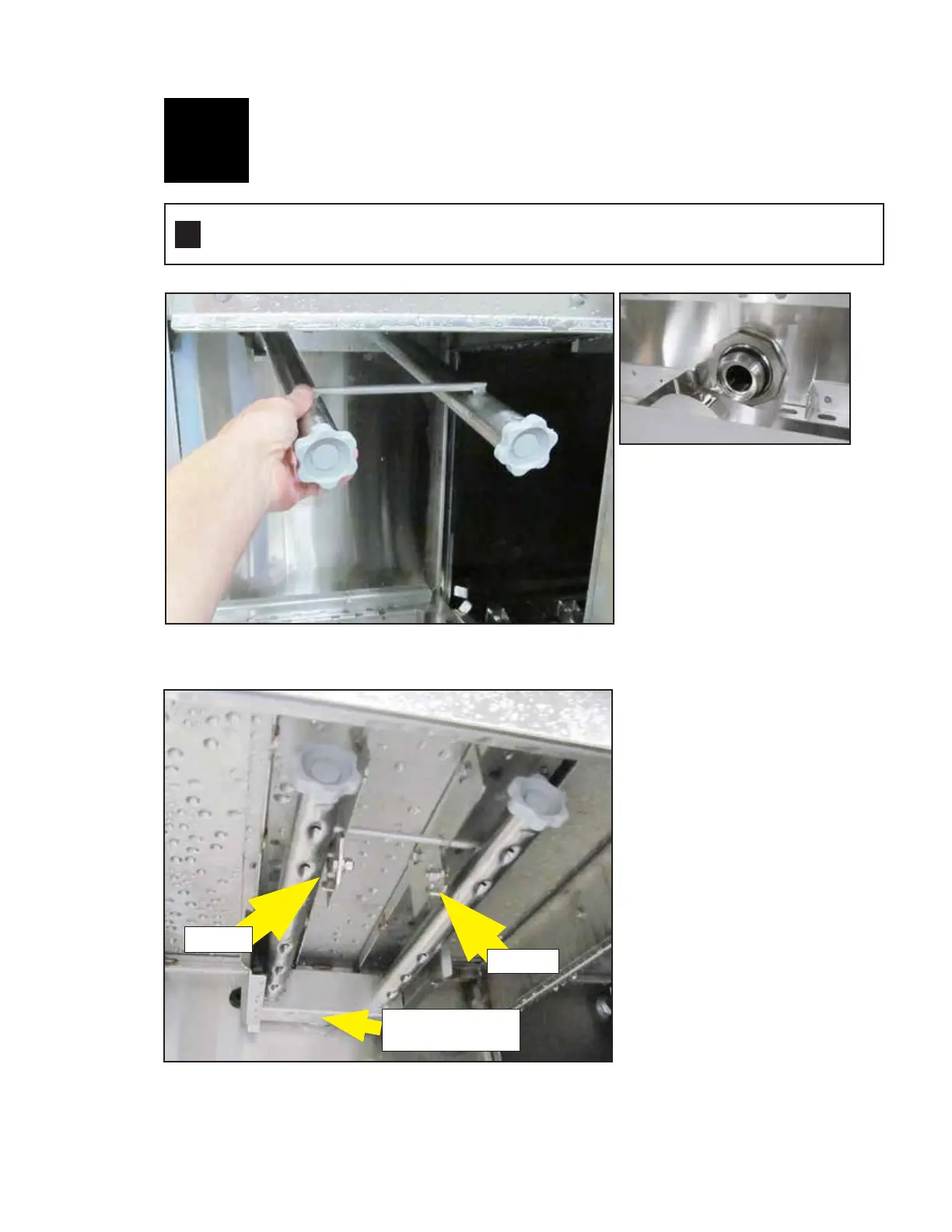

INSTALL UPPER SPRAY ARMS —
Slide upper spray arm on tracks until it seats in standpipe manifold. Push spray arm up
to latch in place, Figs. 80-82.
1
SET
UP
Fig. 80- Slide spray arm on tracks toward standpipe manifold.
Fig. 82 - Lift spray arm until it latches in place.
LATCH
LATCH
Optional Front Feed - Setup
Fig. 81- Standpipe manifold
SPRAY ARM
MANIFOLD
