ChargePoint Home 12: 16A Station

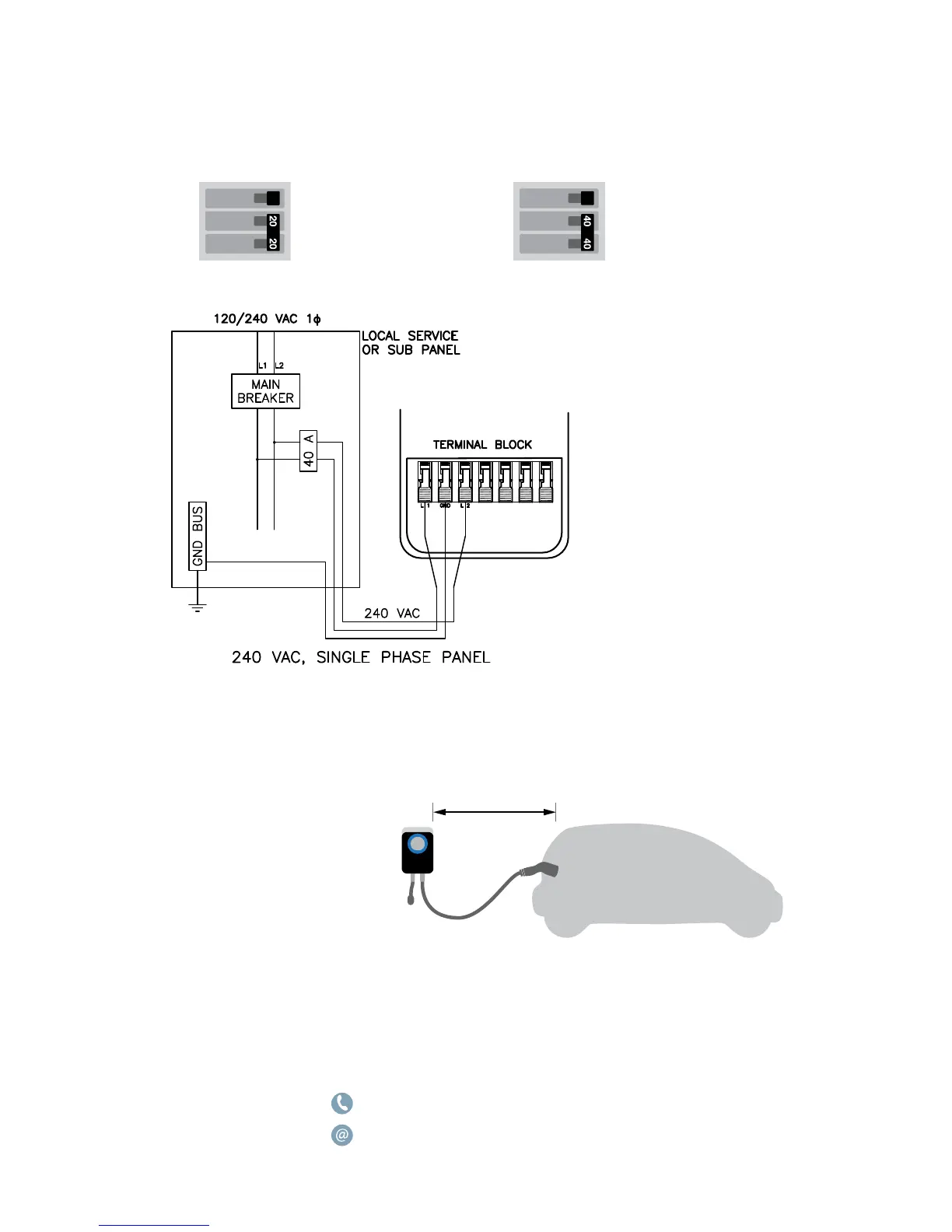

Panel needs 240V 20A service
ChargePoint Home 25: 32A Station
Panel needs 240V 40A service
CHARGER
Questions?
Call U.S. and Canada toll-free: +1.888.758.4389 (24 hours)
Email support@chargepoint.com
➜ Start Here for Hardwire Installation
➜ For Both Hardwire and Plug
❑❑ Use ¾" conduit
❑❑ Use appropriate fittings
for connection
❑❑ Strip wire ends to ½"
❑❑ Insert wires fully into
charger terminal block
Ensure the homeowner has
chosen an installation location
that allows the charging cord
to reach the car's charging port
while still providing slack.
Go to Step 4 on page 5 for station mounting instructions.
➜ Next Steps
Tip: Requires a new,
two-pole circuit breaker
Tip: Requires a new,
two-pole circuit breaker
