For Professional Electricians
Tips to install electrical service for ChargePoint Home
ChargePoint Home 12: 16A Station
+ Panel needs 240V 20A service
+ NEMA 6-20 outlet installed ground
facing up.

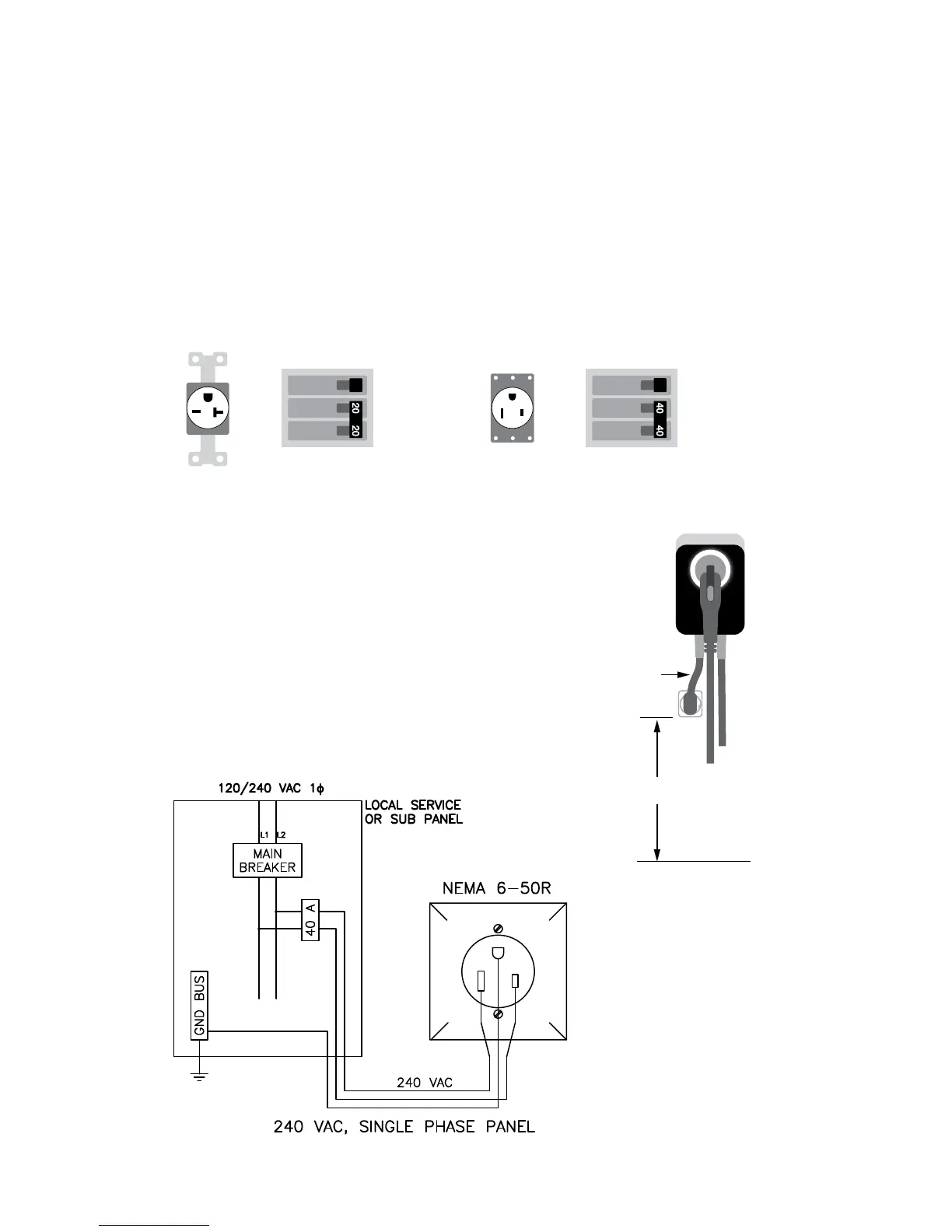

ChargePoint Home 25: 32A Station
+ Panel needs 240V 40A service.
+ NEMA 6-50 outlet installed ground
facing up.
The NEMA outlet should be located 20-26" from the ground. Refer
to the installation template to decide where to install the station.
The power cord will not bend and is only 12" long
(as per the National Electric Code for EV chargers),
so ensure the outlet is installed close enough for
the power cord to plug in.
CHARGER
➜ Start Here for Plug Installation
❑❑ Neutral is not required
at the outlet
❑❑ Install outlet with
ground facing up
Tip: Requires a new,
two-pole circuit breaker
Tip: Requires a new,
two-pole circuit breaker
