Chattanooga Intelect Advanced 2765CS - Reusable Carbon Electrode Lead Wire Connection; Conductive Medium for Reusable Electrodes; Securing Reusable Electrodes

PATIENT PREPARATION
38
Intelect® Advanced Therapy System

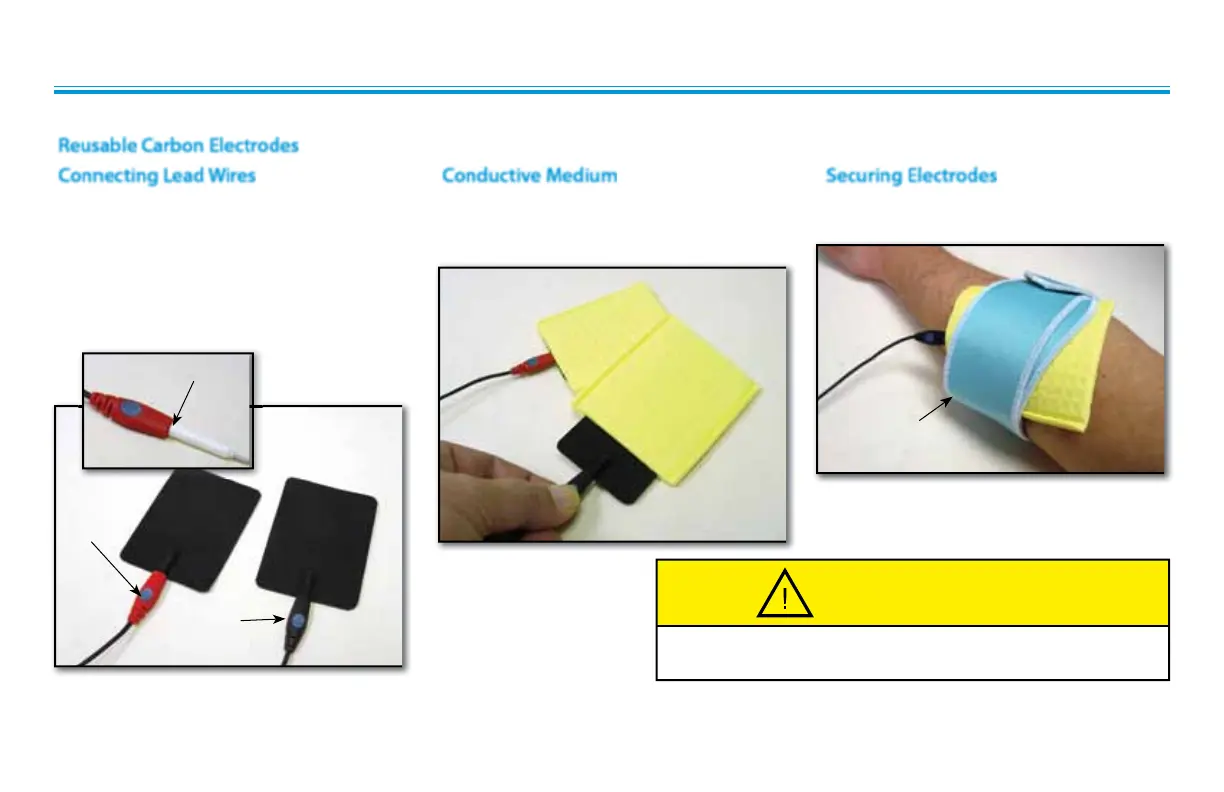

Securing Electrodes
Use wet sponges or liberally apply
Conductor™ Transmission Gel to electrode
prior to placement on patient.
Conductive Medium
Use the Nylatex
®
Wrap to secure each
electrode in position on the patient.
Connecting Lead Wires
Insert the lead with the Red (+) electrode
connector into electrode. Insert the lead
with the black (-) electrode connector into
the other electrode.
Make certain the lead wires are seated
completely into the electrodes.
RED (+)
LEAD WIRE
BLACK (-)
LEAD WIRE
ELECTROTHERAPY PATIENT PREPARATION (continued)
Reusable Carbon Electrodes
LEAD WIRE SEATED
SECURE WITH
NYLATEX
CAUTION
The Nylatex
®
Wraps contain dry natural rubber and may cause
allergic reactions in patients with allergies to latex.
