Intelect® Advanced Therapy System
66
OPERATION
PATIENT DATA CARD- SET UP OF NEW CARD (continued)
Press the Pain Map button to select
the body area of the associated pain as
described by the patient.

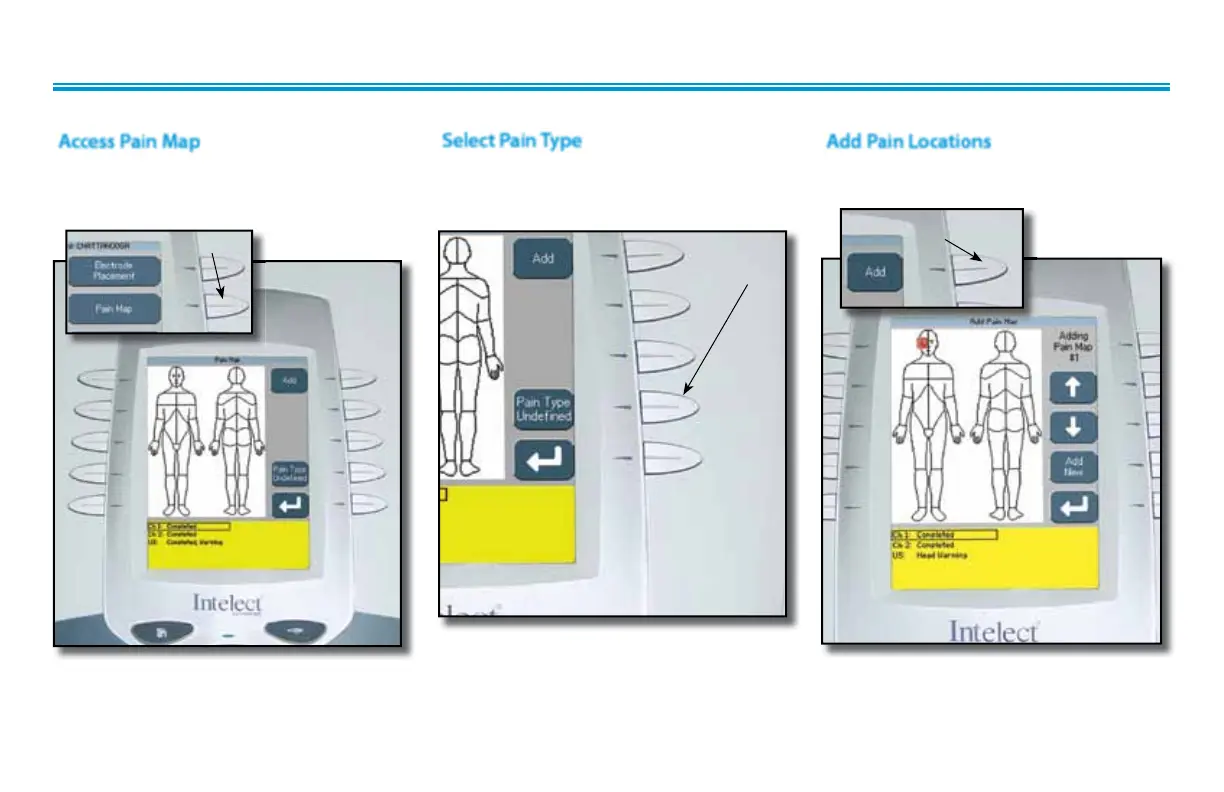

Access Pain Map
PAIN MAP BUTTON
Select Pain Type
Press the Pain Type button until the
desired description is displayed in the Pain
Type icon.
PAIN TYPE
BUTTON
Add Pain Locations
Press the Add button. The Add Pain Map
window will display.
ADD
BUTTON
