CHERUBINI TDS COMPACT - Operation in UP-DOWN Mode; Movement to First Middle Position (Switch)

To Next Page

To Previous Page

Pressing one of the two buttons and releasing,

the motor drives to the desired direction until it reaches

the limits.

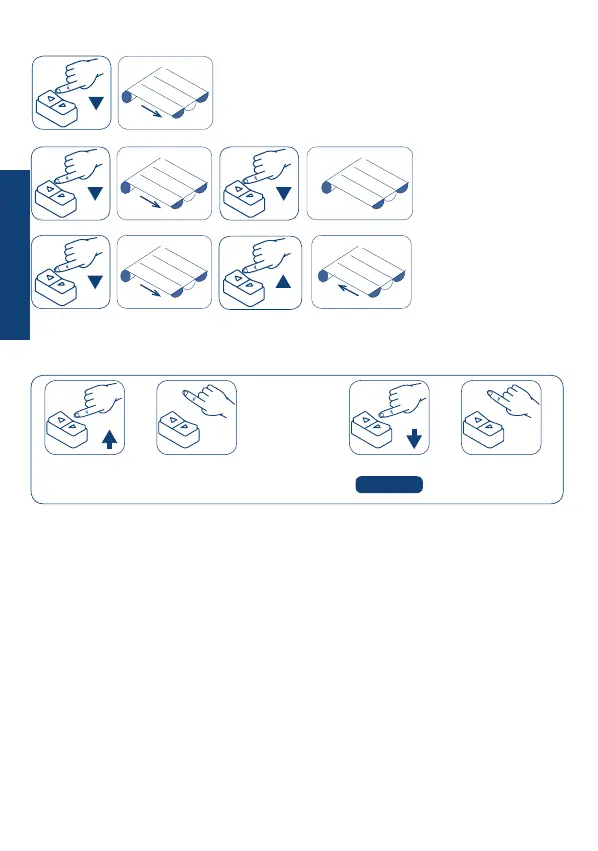

MOVEMENT TO THE FIRST MIDDLE POSITION

DOWN

press briey

< 1 sec

press briey

release release

< 1 sec

< 0,5 sec

.....

STOP

OPERATION IN UP-DOWN MODE (for 2 independent buttons)

To stop the motor

before reaching the

limits press again the

same button.

If during the movement

the other button is

pressed the motor

changes the direction.

In “DEAD MAN” mode it is not possible to move to the middle positions from the switch.

ENGLISH
