SAFETY INSTRUCTIONS
ELECTRICAL CONNECTIONS A510038
- Only professional technicians must perform installation, complying with all safety
instructions, especially those regarding electrical connections.
- To avoid short circuits, arrange an automatic bipolar switch with opening distance of the
contacts of at least 3 mm before the circuit.
- If not used, the white wire must be insulated. It is dangerous to touch the white wire
when the motor is powered.
SKIPPER Series GIRO Series
WINDTEC Ref. A520007
WINDTEC LUX Ref. A520008
MISTRAL Ref. A520012
RUGIADA Ref. A520016

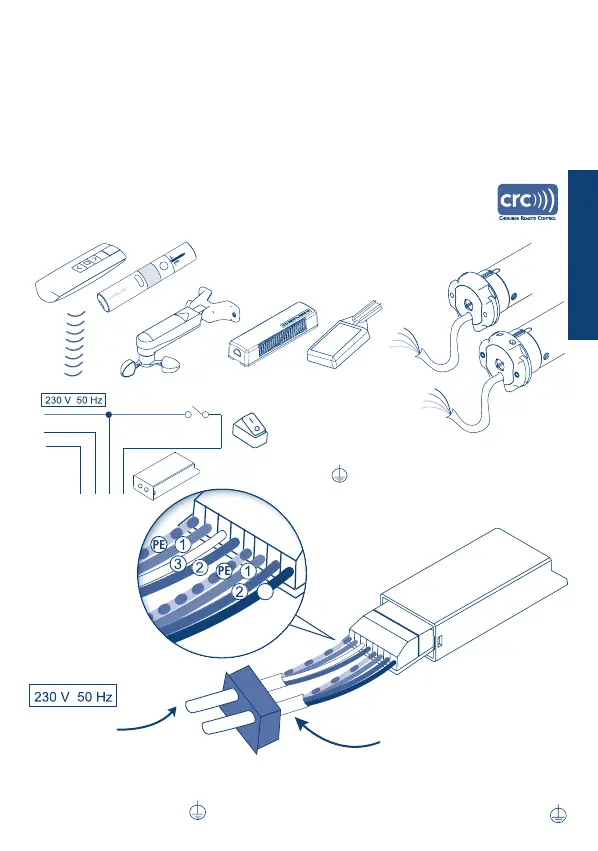

CONNECTION
POWER SUPPLY SIDE
1 - BLUE - NEUTRAL
2 - BROWN - PHASE
3 - WHITE - OPTIONAL WIRED SWITCH
PE - YELLOW/GREEN - EARTH
CONNECTION
MOTOR SIDE
1 - BLUE - COMMON
2 - BROWN - UP (OR DOWN)
4 - BLACK - DOWN (OR UP)
PE - YELLOW/GREEN - EARTH
PE
PE
PE
PE
4
EP 2 31
PE
N
L
1 - NEUTRAL
2 - PHASE
3 - WIRED SWITCH (WHITE)
PE - EARTH
Motor with
mechanical
limit switch
Motor with
electronic
limit switch
