Standard Controller (cont’d)

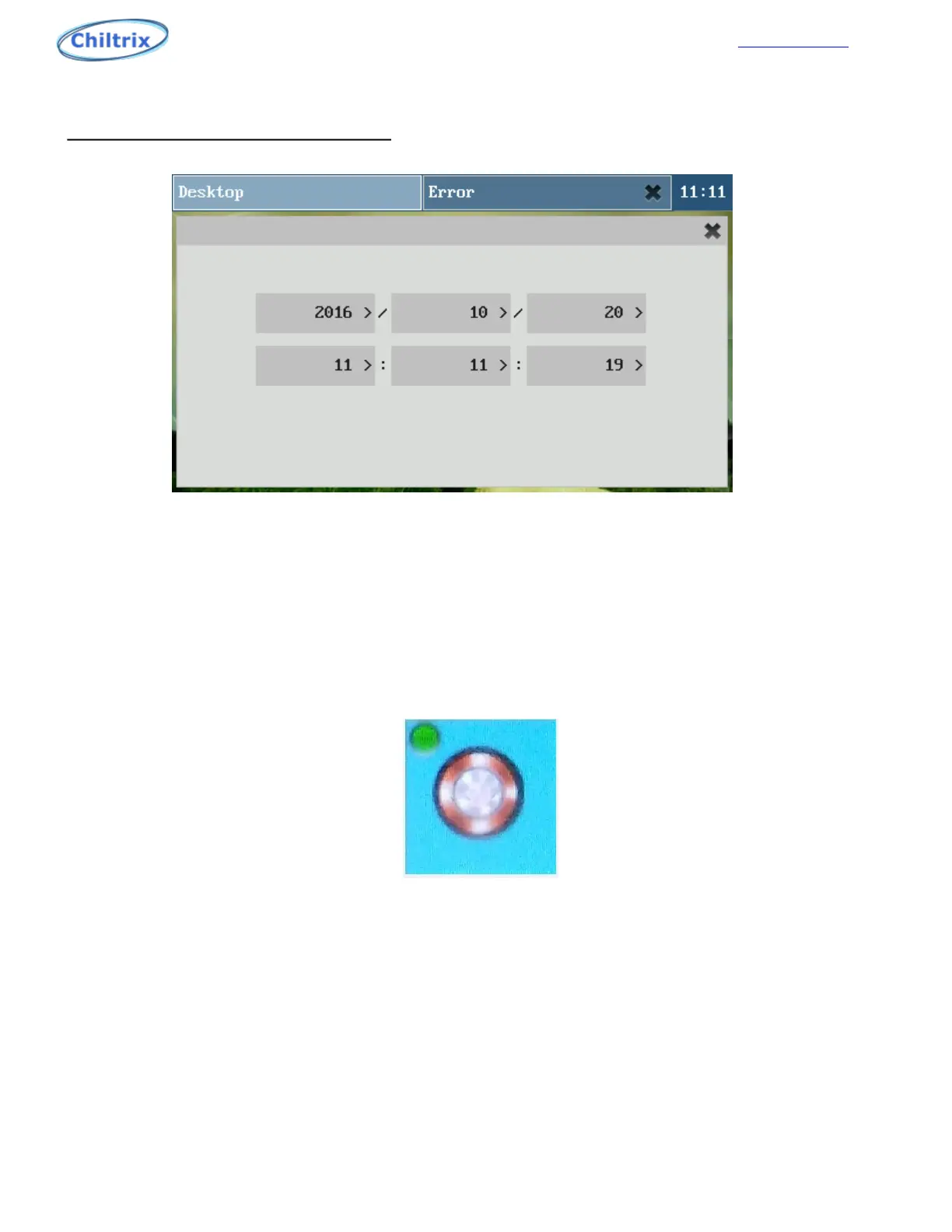

Figure 1-3
Figure 1-3
(16) Time: Used to display and set the current time. When clicked, a pop-up showing the date and time is
displayed, Figure 1-3. From left to right, and from top to bottom is the year, month, day, hour, minute,
and second. Clicking on each box will allow you to set its valve.
(17) DHW: If the hot water mode is enabled, this icon will be lit.
(18) Cooling: If the cooling mode is on in the user setting, this icon will be lit.
(19) Heating: If the heating model is on in the user setting, this icon will be lit.
Figure 1-4
(20) Boot button: Used to execute the boot command operating mode.
1. SETTING PASSWORDS (Optional and Not Recommended)
The application is used to set the user parameters, and set a password, as shown in Figure 1-5,
minimum of 6 characters, maximum of 127.
