Wound Component EST Scanner 19035/19035-M/19035-S
Quick Start Guide
HIPOT Analyzer

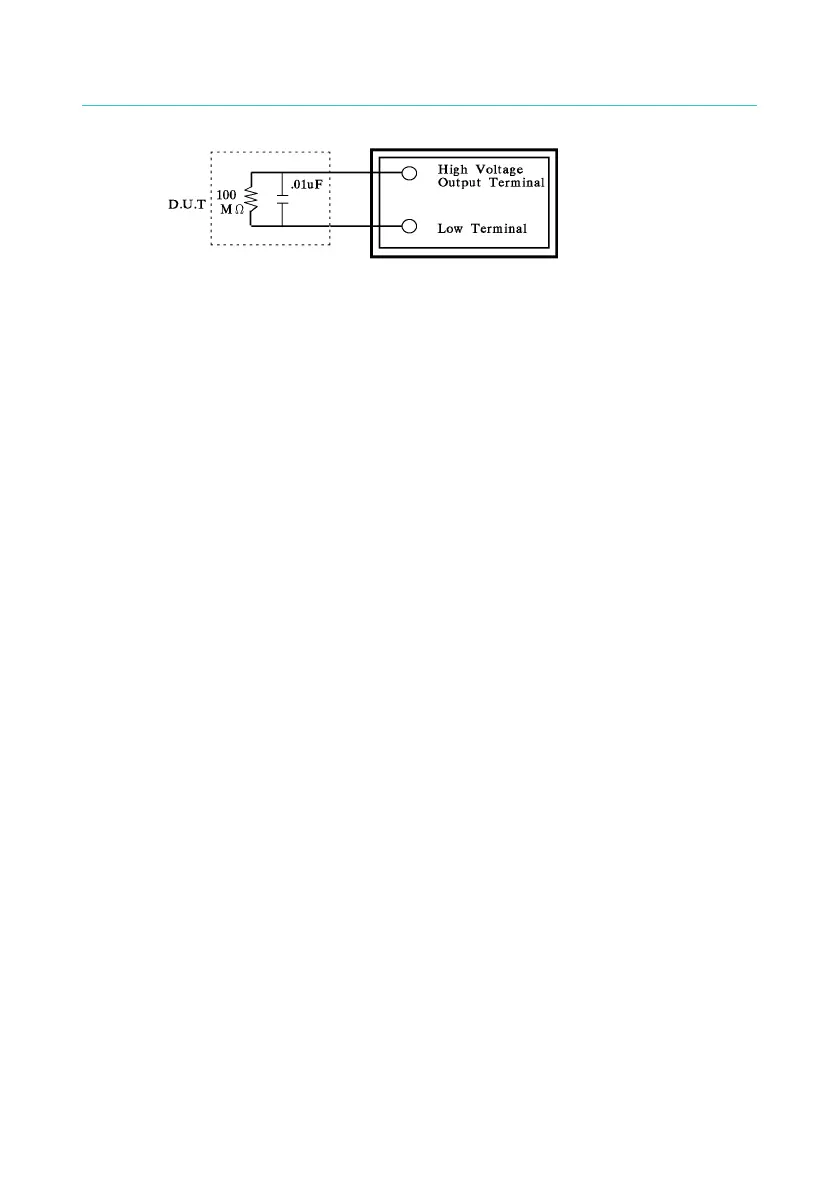

Figure 2-5
10. Remote controlling the Scanner
The EST Scanner can be remote controlled generally for high voltage
output via external control signal. When performing it, it is necessary
to follow the control guidelines for safety and precautions.
■ Do not allow any accidental high voltage output that may cause
hazard.
■ When there is high voltage output from the Scanner, do not allow
any operators or other persons to touch the DUT, test cable or
probe output and etc.
11. ** CAUTION! ** Turning on or off the power switch
Once the power switch is turned off, it needs to wait for a few seconds
to turn it on again. Do not power it on and off continuously to avoid
occurring errors. It is very dangerous to power it on and off
continuously when in high voltage output state in particular. When
turning on or off the power, the high voltage output terminal
cannot connect to any object to avoid the hazard caused by
abnormal high voltage output.
12. Other notices
Do not short-circuit the output line, grounding wire, communication
cable or other device’s grounding wire or AC power to avoid charging
the entire Scanner with dangerous voltage. To short-circuit the
terminals of high voltage output and RTN/LOW, it is necessary to
ground the Scanner chassis to earth properly.
<<< Emergency Case >>>
13. Process for emergency case
To avoid causing bigger hazard when in emergency situations like
electric shock, DUT or Scanner burnout, please perform the steps
below:
■ First cutoff the power switch.
■ Second unplug the power cord.
8
