General Information
1-3
(300V RANGE) with maximum current to linear load.
*2: Load regulation is tested with sinewave and remote sense.
*3: Efficiency is tested on input voltage 110V.
1.4 Names of Parts
1.4.1 Front Panel
1
2
3 4 5
67
8
9
10
11

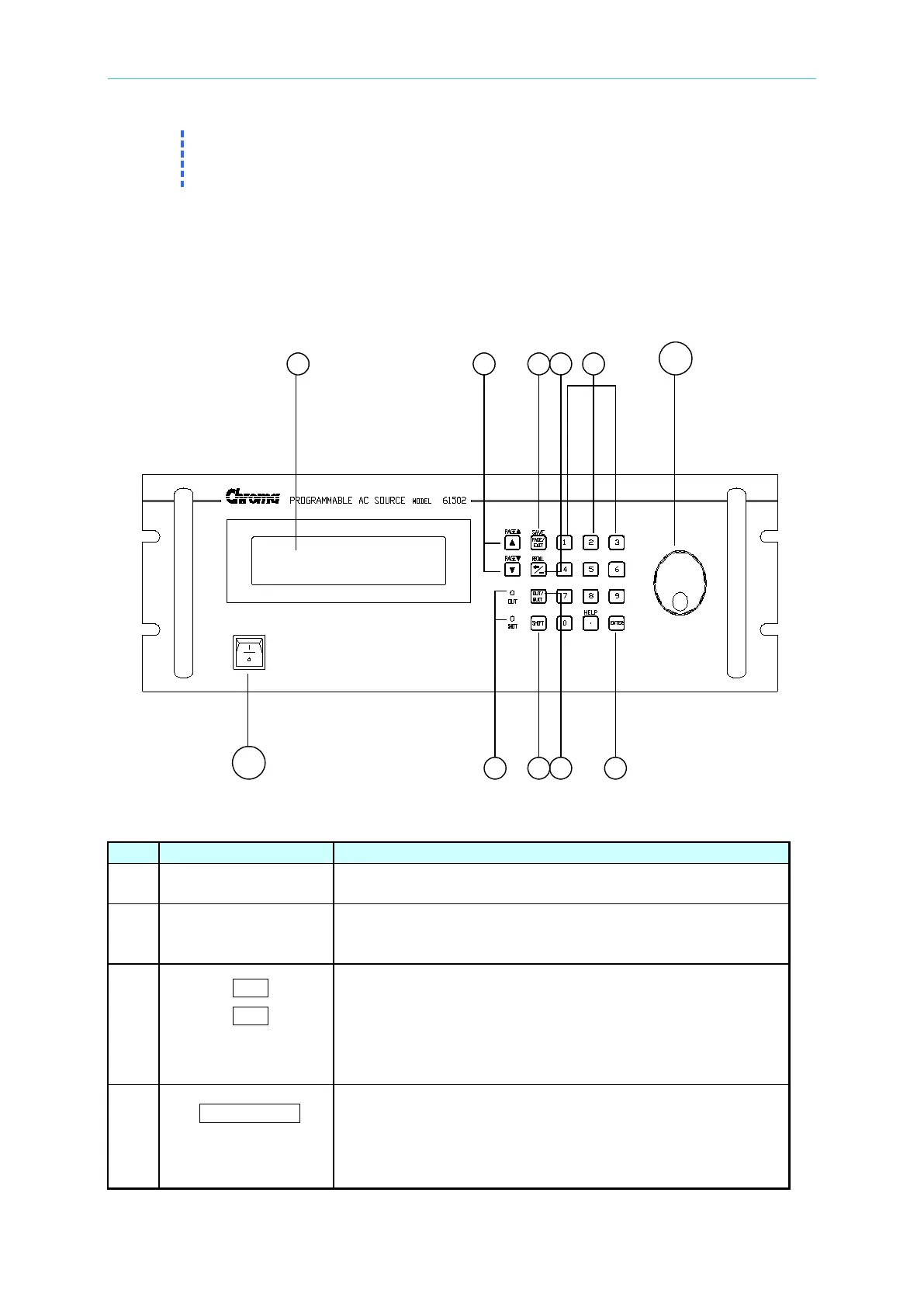

Figure 1-1 Front Panel
Table 1-1 Description of the Front Panel
Item
Symbol
Description
1
Display: The LCD is to display configuration, output setup,
and measurement results.
2
Indicator LED: "OUT" and "SHIFT", for showing activation
of output and shift mode, are available which are located on
the keypad area next to the corresponding keys.
3


---------or--------
PAGE 
PAGE 
Cursor moving keys: These two keys are to move the
cursor to different directions respectively. In normal mode,
pressing any of these two keys will change the place of the
cursor. Under shift mode, these keys enable the LCD
display to change to last page or next page if there are 
or

patterns in right-down side of display.
4
PAGE/EXIT
---------or---------
SAVE
PAGE or EXIT command key: Pressing this key will make
the LCD display switching between MAIN PAGE and
CHOICE PAGE. Or change to CHOICE PAGE in each
functional list. Under shift mode, pressing this key on
MAIN PAGE, the uses can save the output setting (see
