Programmable AC Source 61601/61602/61603/61604 User’s Manual
1-6
1.4.3 Rear Panel (with USB and Ethernet)

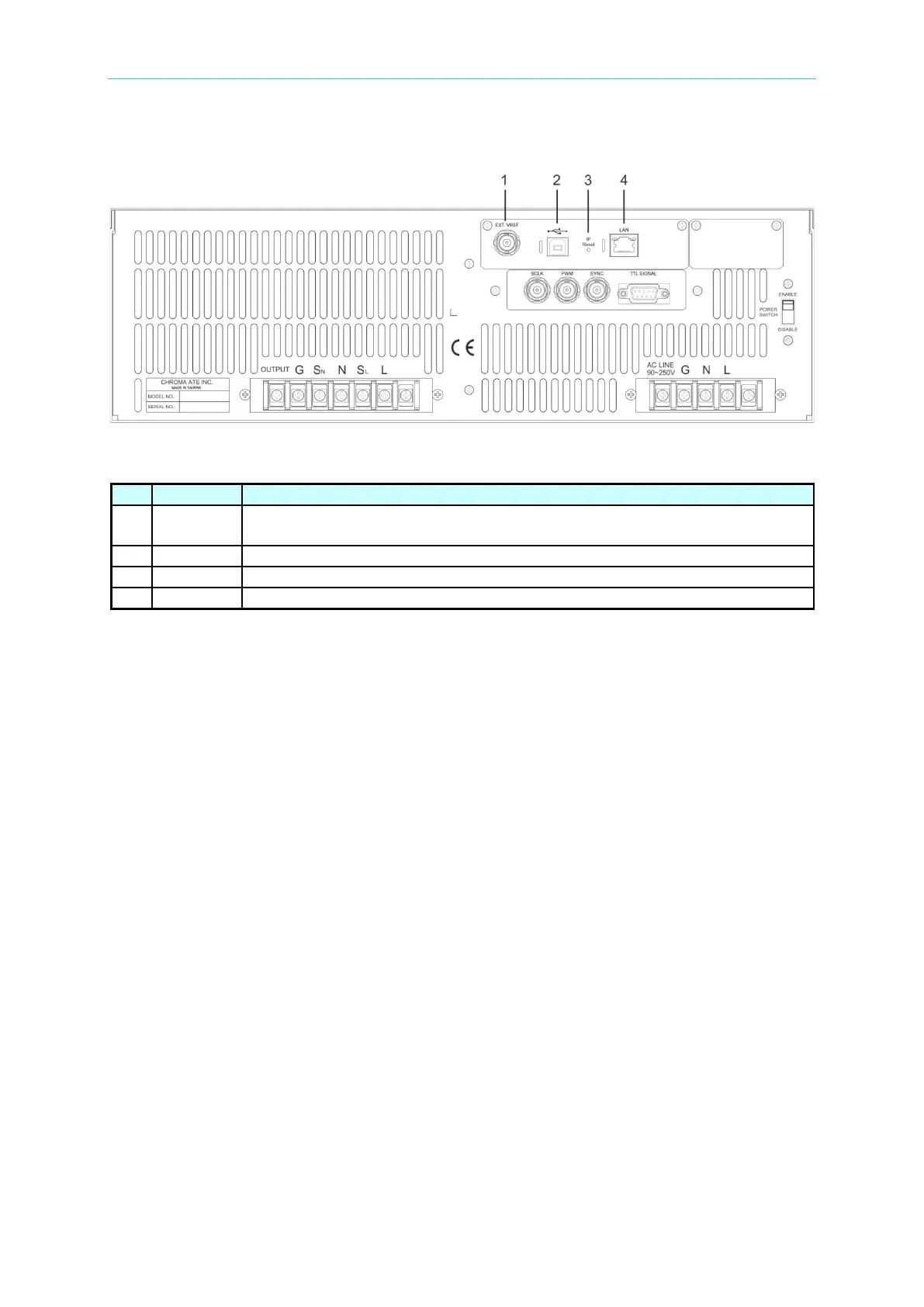

Figure 1-3 Rear Panel (With USB & Ethernet)
Table 1-3 Description of the Rear Panel
Item
Name
Description
1
Ext. Ref.
A BNC connector to control waveform amplitude via external analog
(simulated).
2
USB
Connecting AC source and PC for communication.
3
IP Reset
Reset the IP address.
4
LAN
Connecting AC source and PC for network communication.
