Program Sequence
RUN COUNT MIN MAX
TIMES 0 15000
Table 4-1
Ex. 4: Set RUN COUNT for a PROGRAM
Set PROG #1 to PROG CHAIN NO.=3, RUN COUNT=2.
PROG #3 to PROG CHAIN NO.=0, RUN COUNT=3.

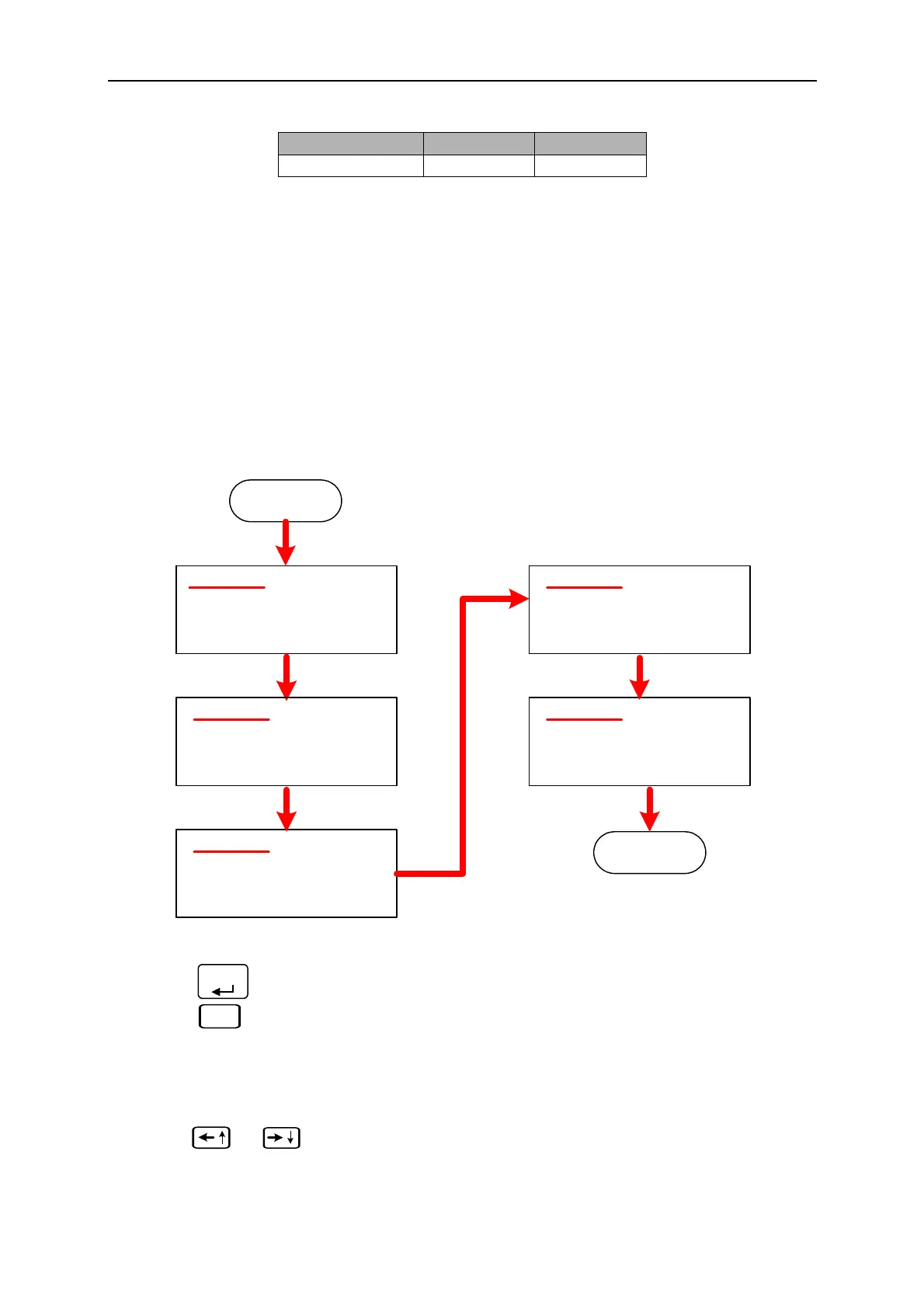

The program execution flow of RUN COUNT is listed as Figure 4-7 shows.
A4: Execution steps:
(1) When all PROG #1 SEQUENCES are done, return to PROG #1.
(2) Repeat step (1) twice and skip PROG #2 and return to PROG #3.
(3) When all PROG #3 SEQUENCES are done, return to PROG #3.
(4) Repeat step (3) for 3 times.
(5) End
PROG #1
PROG CHAIN NO = 3
RUN COUNT =2
SEQ 1_1 ~ SEQ 1_10
PROG #3
PROG CHAIN NO = 0
RUN COUNT=3
SEQ 3_1 ~ SEQ 3_10
START
PROG #1
PROG CHAIN NO = 3
RUN COUNT =2
SEQ 1_1 ~ SEQ 1_10
PROG #3
PROG CHAIN NO = 0
RUN COUNT=3
SEQ 3_1 ~ SEQ 3_10
PROG #3
PROG CHAIN NO = 0
RUN COUNT=3
SEQ 3_1 ~ SEQ 3_10
END
Figure 4-7
3. Press “
ENTER
” to confirm.
4. Press “
EXIT
” to return to MAIN PAGE.
4.1.1.4 Setting CLEAR SEQUENCE
1. Use “
”, “
” keys to move the cursor to the column to be set as Figure 4-3 (4)
shows.
4-7
