Chroma 69200-1 - Rear Panel

Charge/Discharge Controller 69200-1 User’s Manual
1-4

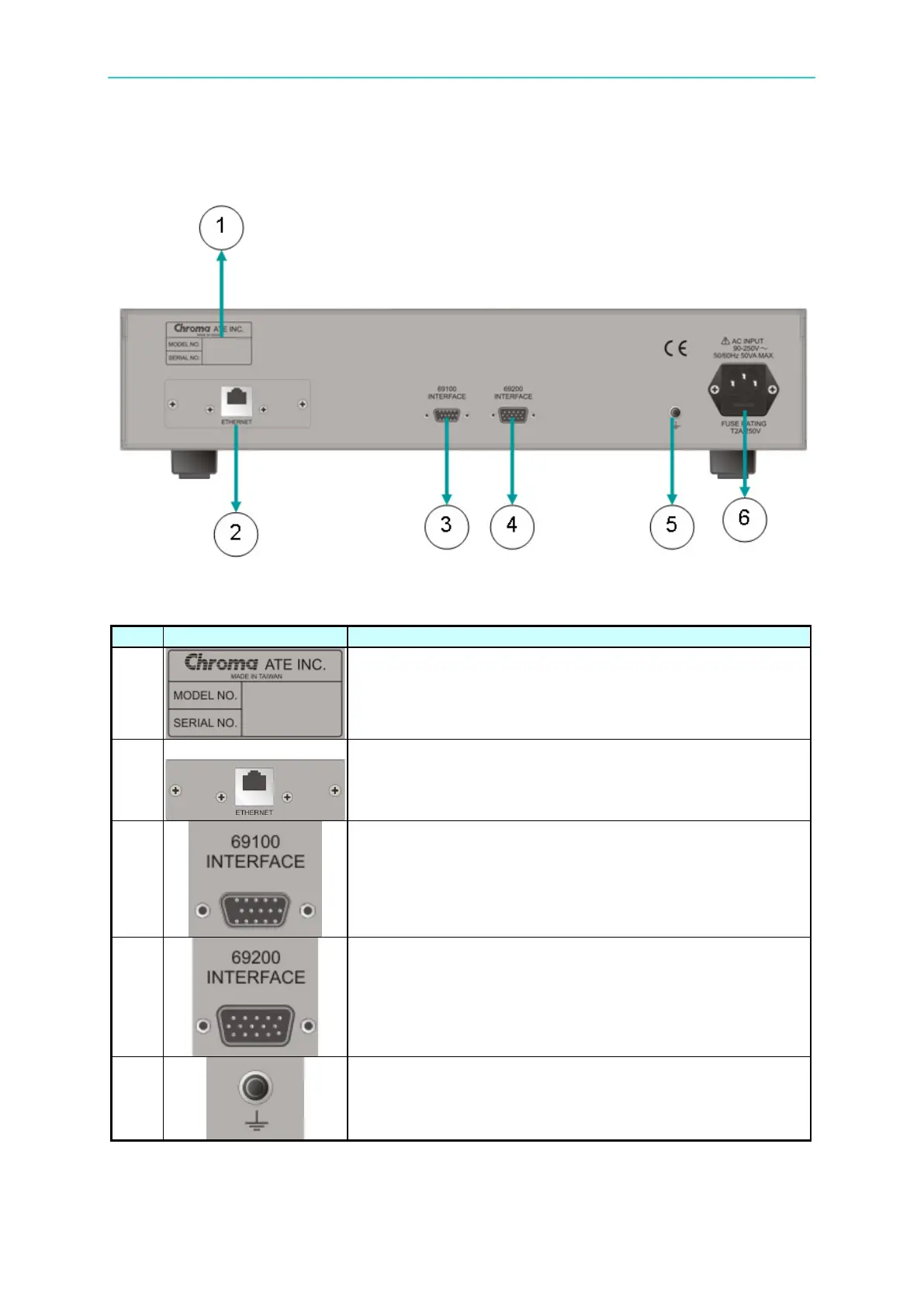

1.4.2 Rear Panel
Figure 1-2 Rear Panel
Table 1-2 Rear Panel Description
Item
Symbol
Description
1
Label:
The label contains model no. and serial no.
2
ETHERNET Connector:
The remote controller uses ETHERNET bus via this
connector to connect PC for remote operation.
3
Interface(69100):
The A69110 uses 15pin D-SUB
cable to connect it in order to
communicate with CSU.
4
Interface(69200):
The 69206-60-8 uses15pin D-SUB cable to connect it in
order to communicate with CSU.
5
Grounding:
This terminal allows the user to ground the device.
