Charge/Discharge Controller 69200-1 User’s Manual
2-2
2.3 Requirements for Input Power
2.3.1 Ratings
Input voltage range
:
AC INPUT 90-250 V
Input frequency
:
AC INPUT
：
50/60Hz
Maximum input current
:
2A
Maximum input power
:
50VA
It may cause the device to be damaged if exceeding the rated ranged.
2.3.2 Input Connection
The AC INPUT connector is located on the rear panel at right. The power cord temperature
should at least less than the rated temperature 85°C and the durable maximum current should
be larger than the actual current.
Be sure the AC INPUT is plugged in tightly.
To protect the operator, connect the metal wire to ground terminal
and earth. No matter in what circumstances, the device should not be
operated without proper grounding.
The installation of power cord should be installed by electrical
professional.

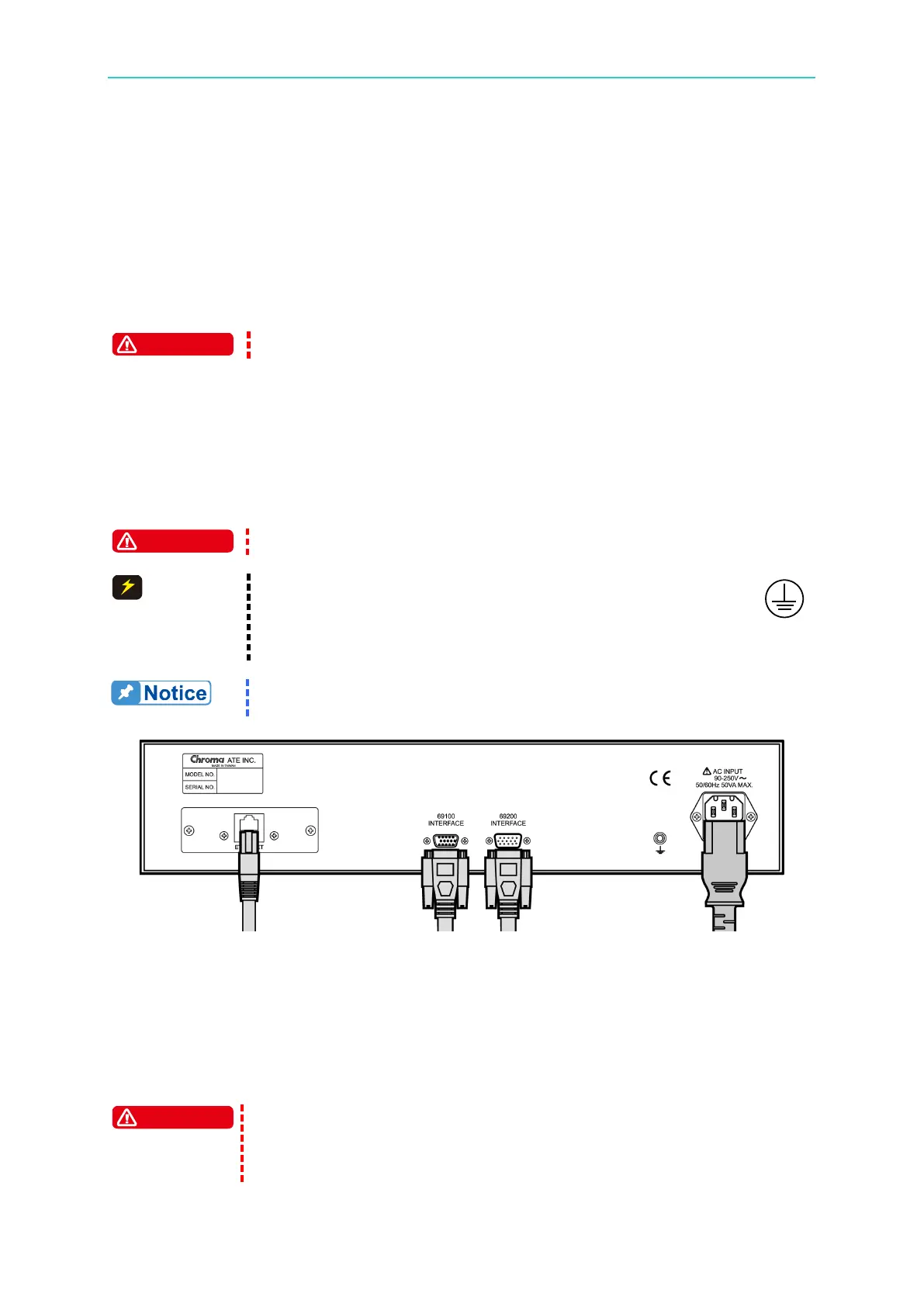

Figure 2-2
2.4 Output Connection
The output is D-SUB connection which requires connecting to 691xx-yy-zz and 692xx-yy-zz
respectively for communication.
1. The front and rear panel of the device should be at least 1 meter
away from the wall for well device ventilation, Do not place it
against the wall or other objects.
WARNING
WARNING
CAUTION
WARNING
