and 1 is reversed for easy identification. The connection for current sharing to parallel with
hardware, please see the user’s manual of 692xx-yy-zz.
The sequence for parallel can only be done in sequence order from small
to big. For example, it cannot parallel CHANNEL1, 3, 4 and skip
channel 2.
Press EXIT to return to main screen.

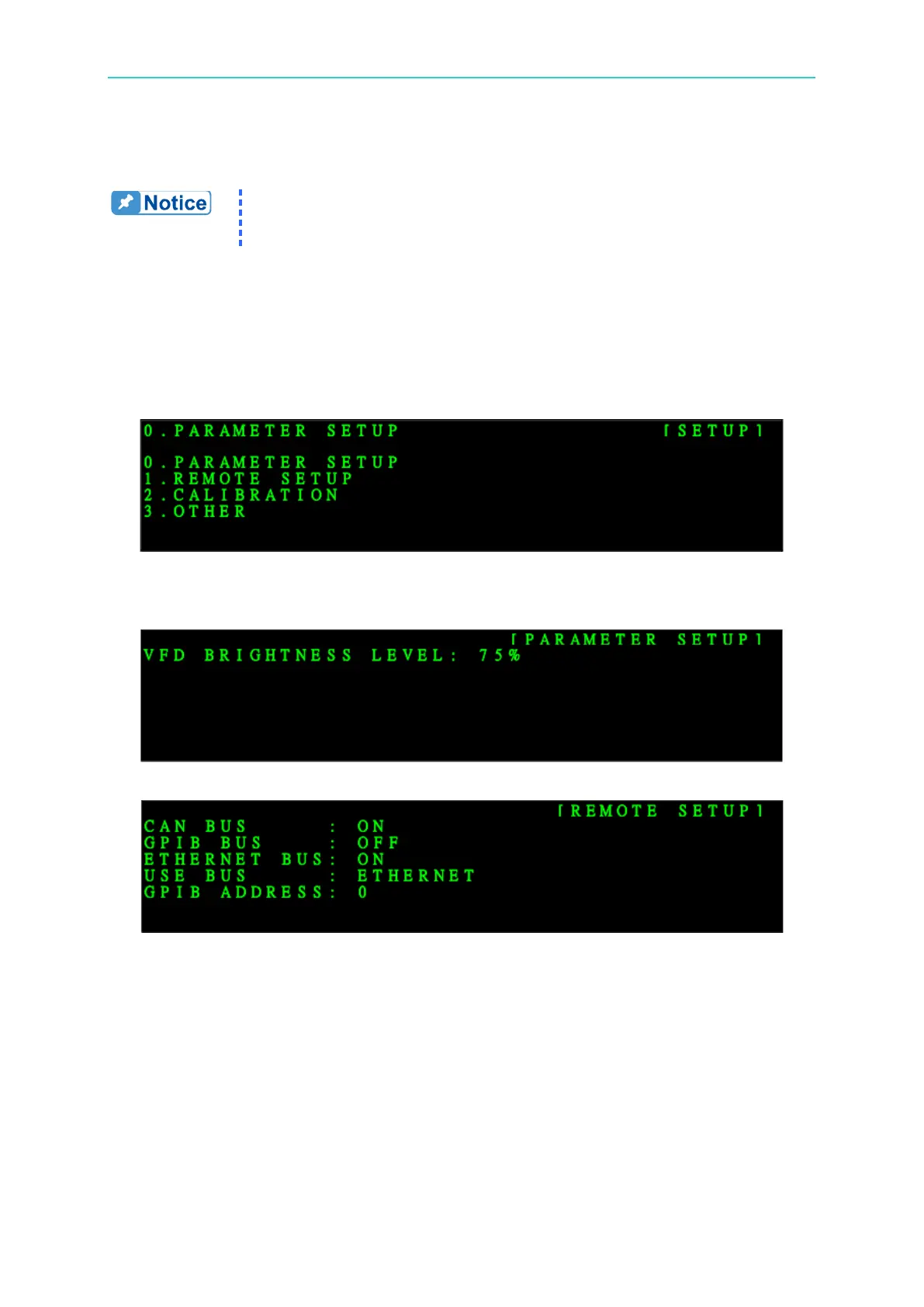

3.3.7 Operating of SETUP Key
Press SETUP.
Based on the selected channel for setting, and each channel is independent.
A. Parameter:
B. Remote:
C. CALIBRATION:
Chroma 69200-1 has 4 calibration functions:
(1) DC BUS VOLTAGE: It ensures the measurement accuracy of 69206-60-8 input
voltage.
(2) OUT VOLTAGE: It ensures the measurement accuracy of 69206-60-8 output
voltage.
(3) DISCHARGE CURRENT: It ensures the current accuracy of 69206-60-8 in
discharge mode.
(4) CHARGE CURRENT: It ensures the current accuracy of 69206-60-8 in discharge
mode.
