3. Local Operation
3.1 Introduction
The battery charge/discharge controller can be operated locally or remotely via ETHERNET.
The chapter describes the way of inputting test data in local mode using the rotary knob or
keyboard on the front panel.
If the specified operation mode is not saved before powering off, it will be
in local operation mode (system default) when the controller is powered
on next time.
3.2 Operating Interface

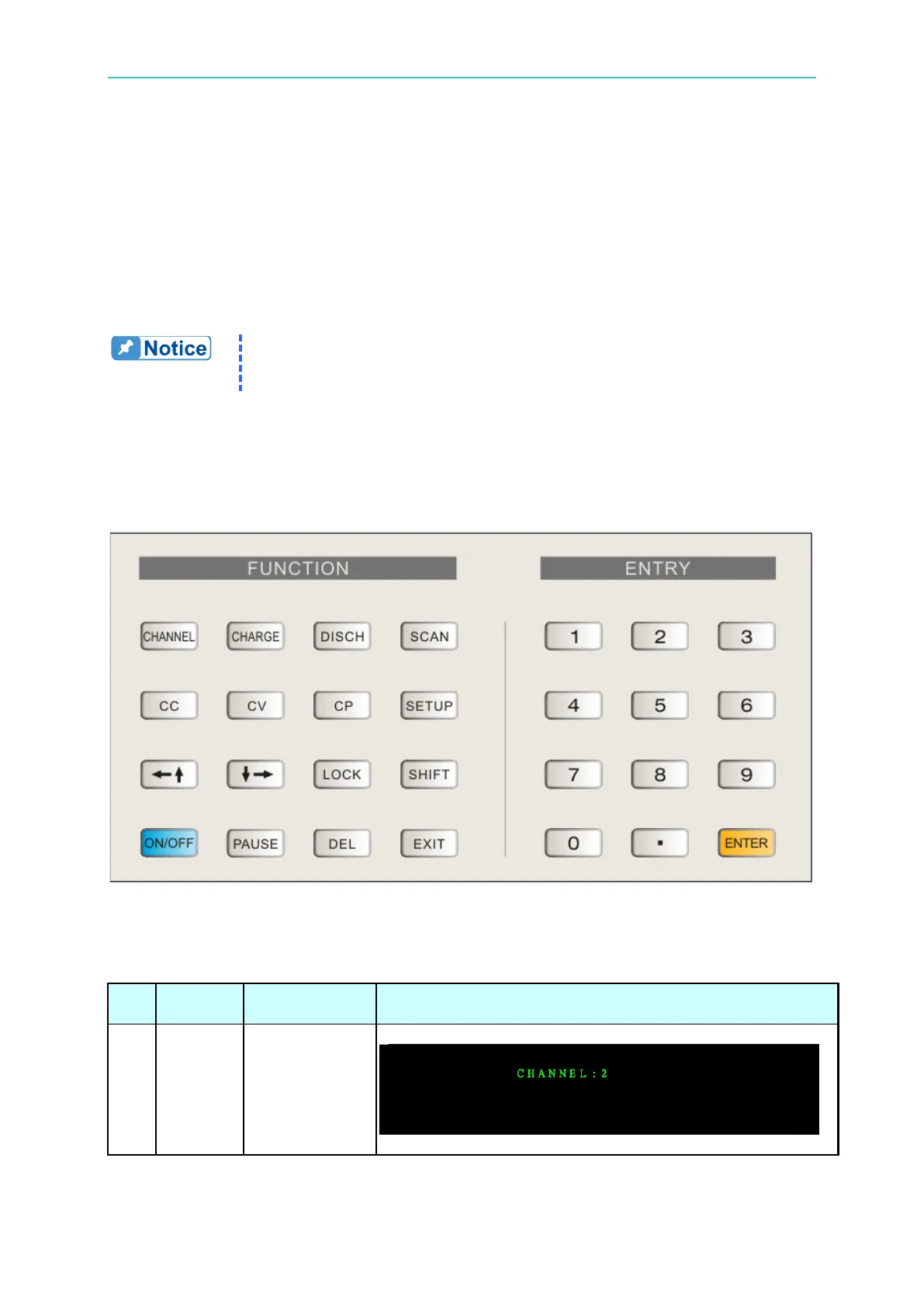

Diagram of operating interface:
Figure 3-1
Description of key function:
Table 3-1
Item
Input Data
Test or
Operation
Expected Output
Press
Test
CHANNEL
Only valid in
main screen.
CHANNEL screen
