During normal operation, when conditions meet the requirements of Section 5.2,
the following information will be displayed to the driver (Figure 25):
• Air Content (% by volume)
• Concrete temperature (°F or °C)
• Drum speed (RPM) and direction (positive rpm is charge direction;
negative rpm is discharge direction)
• Battery charge level (% remaining)
• Hydraulic Pressure if optionally equipped.
If conditions do not meet the requirements of Section 5.2, the display will show
the following (Figure 26):
• Number of drum revolutions remaining to complete SMARThatch
sensor initialization and begin air content measurement
• Drum speed and direction
• Battery charge level
• Hydraulic Pressure if optionally equipped.

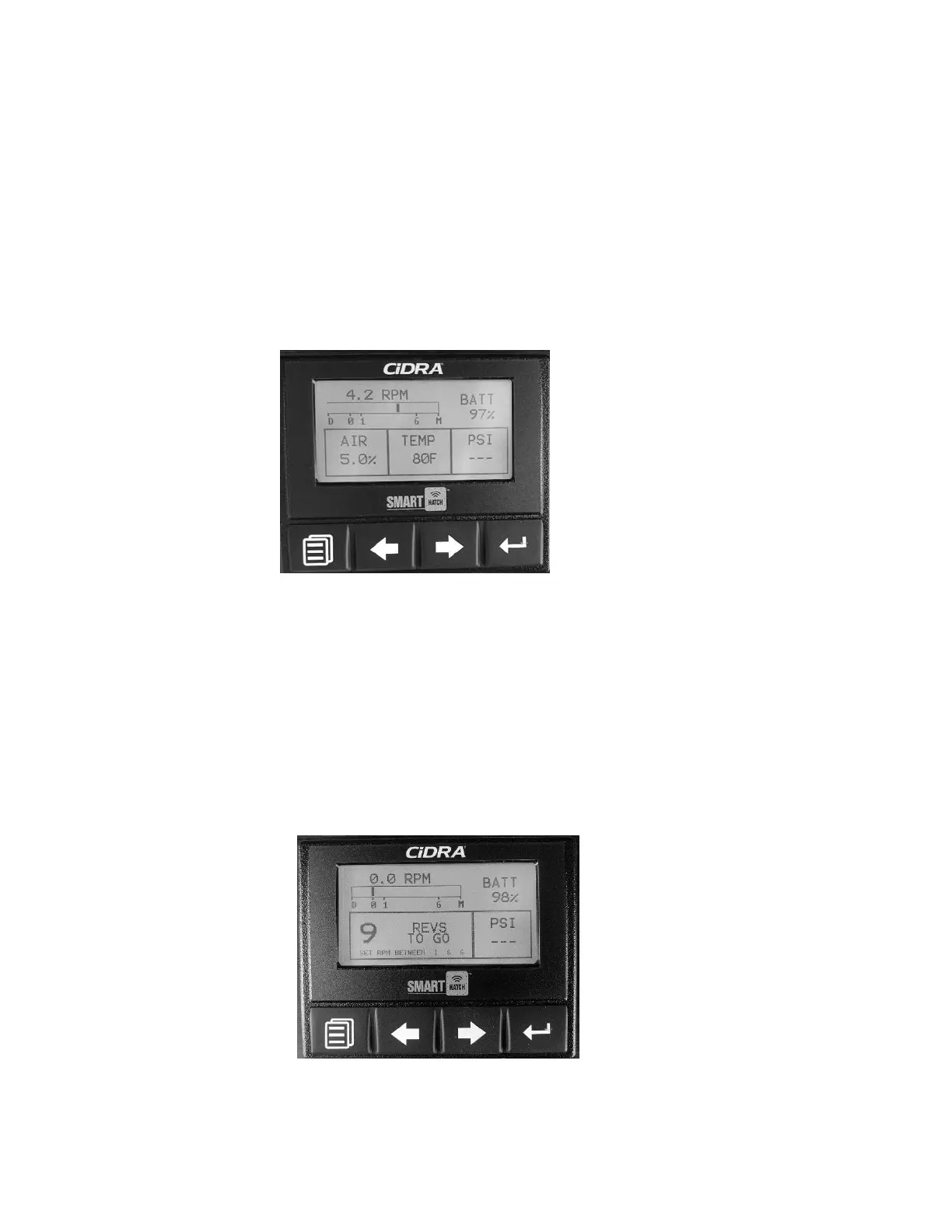

Figure 25: In-Cab Display (Measuring)
Figure 26: In-Cab Display (SMARThatch Sensor Initialization)
