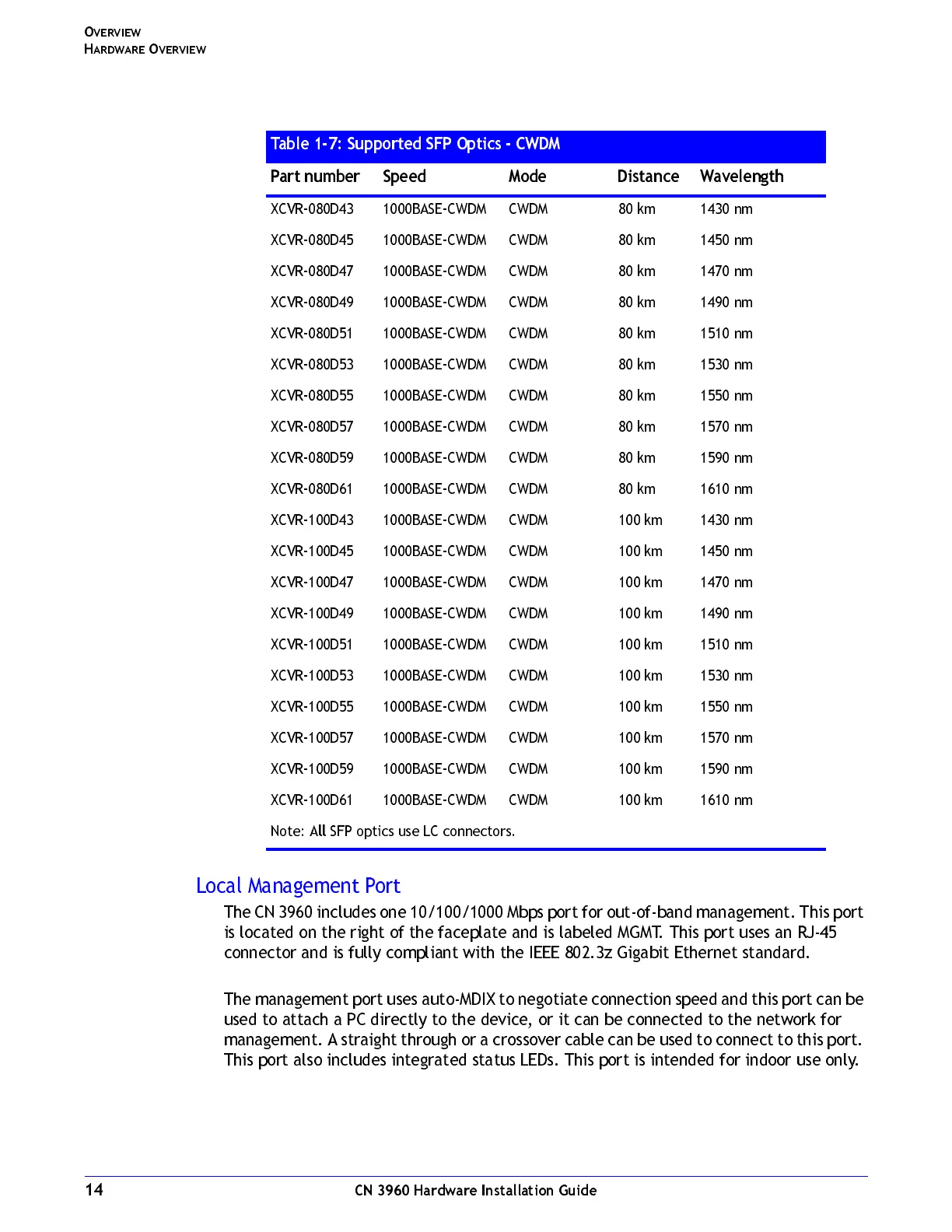

14 CN 3960 Hardware Installation Guide
O VERVIEW
H ARDWARE O VERVIEW
Local Management Port
The CN 3960 includes one 10/100/1000 Mbps port for out-of-band management. This port
is located on the right of the faceplate and is labeled MGMT. This port uses an RJ-45
connector and is fully compliant with the IEEE 802.3z Gigabit Ethernet standard.
The management port uses auto-MDIX to negotiate connection speed and this port can be
used to attach a PC directly to the device, or it can be connected to the network for
management. A straight through or a crossover cable can be used to connect to this port.
This port also includes integrated status LEDs. This port is intended for indoor use only.
Table 1-7: Supported SFP Optics - CWD M
Part number Speed Mode Distance Wavelength
XCVR-080D43 1000BASE-CWDM CWDM 80 km 1430 nm
XCVR-080D45 1000BASE-CWDM CWDM 80 km 1450 nm
XCVR-080D47 1000BASE-CWDM CWDM 80 km 1470 nm
XCVR-080D49 1000BASE-CWDM CWDM 80 km 1490 nm
XCVR-080D51 1000BASE-CWDM CWDM 80 km 1510 nm
XCVR-080D53 1000BASE-CWDM CWDM 80 km 1530 nm
XCVR-080D55 1000BASE-CWDM CWDM 80 km 1550 nm
XCVR-080D57 1000BASE-CWDM CWDM 80 km 1570 nm
XCVR-080D59 1000BASE-CWDM CWDM 80 km 1590 nm
XCVR-080D61 1000BASE-CWDM CWDM 80 km 1610 nm
XCVR-100D43 1000BASE-CWDM CWDM 100 km 1430 nm
XCVR-100D45 1000BASE-CWDM CWDM 100 km 1450 nm
XCVR-100D47 1000BASE-CWDM CWDM 100 km 1470 nm
XCVR-100D49 1000BASE-CWDM CWDM 100 km 1490 nm
XCVR-100D51 1000BASE-CWDM CWDM 100 km 1510 nm
XCVR-100D53 1000BASE-CWDM CWDM 100 km 1530 nm
XCVR-100D55 1000BASE-CWDM CWDM 100 km 1550 nm
XCVR-100D57 1000BASE-CWDM CWDM 100 km 1570 nm
XCVR-100D59 1000BASE-CWDM CWDM 100 km 1590 nm
XCVR-100D61 1000BASE-CWDM CWDM 100 km 1610 nm
Note: All SFP optics use LC connectors.
