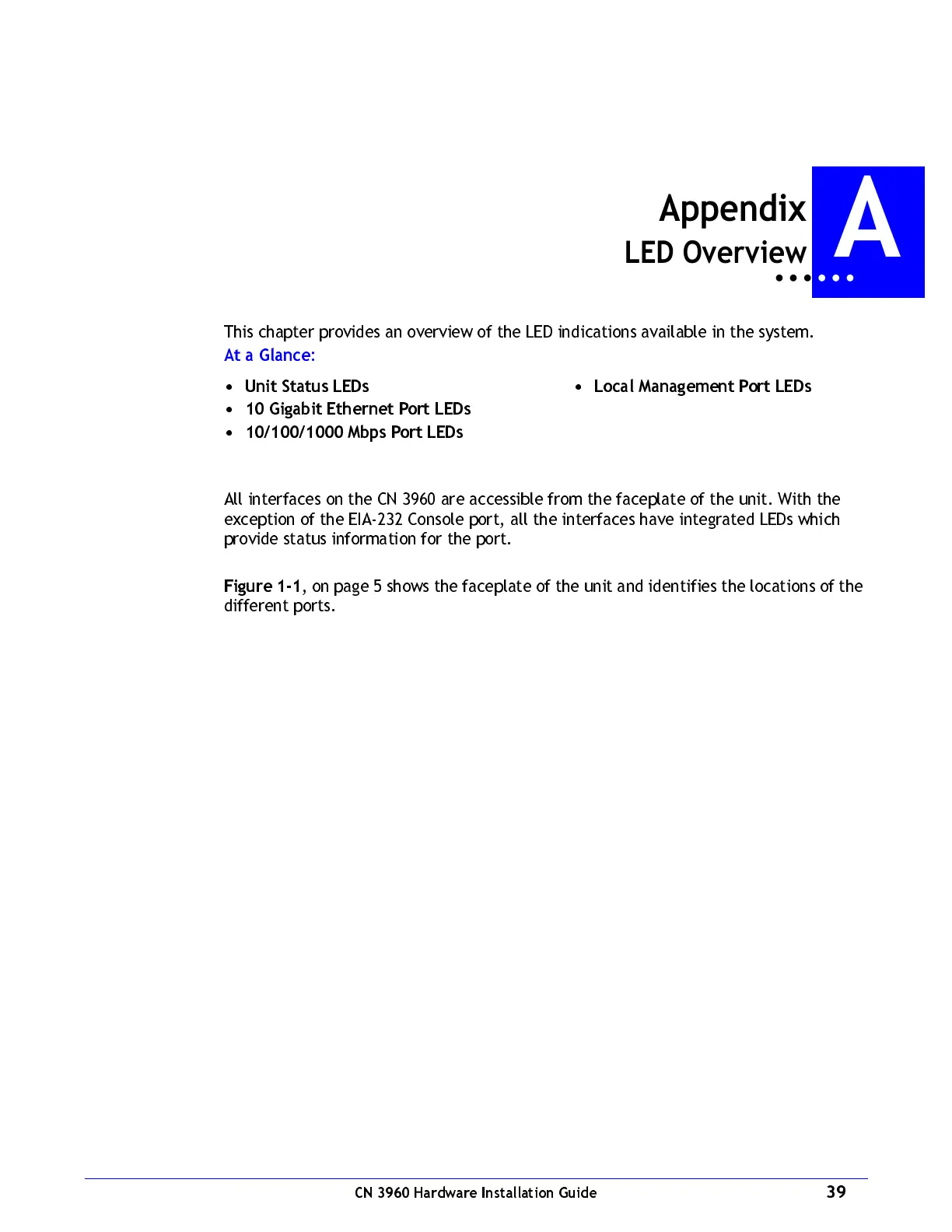

CN 3960 Hardware Installation Guide
39
A
Appendix
LED Overview
This chapter provides an overview of the LED indications available in the system.
At a Glance
:
All interfaces on the CN 3960 are accessible from the faceplate of the unit. With the
exception of the EIA-232 Console port, all the interfaces have integrated LEDs which
provide status information for the port.
Fig ure 1-1
, on page 5 shows the faceplate of the unit and identifies the locations of the
different ports.
• Un it St atu s LE D s
• 10 Gigabit Ethernet Port LEDs
• 10/100/1000 Mbps Port LEDs
• Local Management Port LEDs
