CN 3960 Hardware Installation Guide
3
1

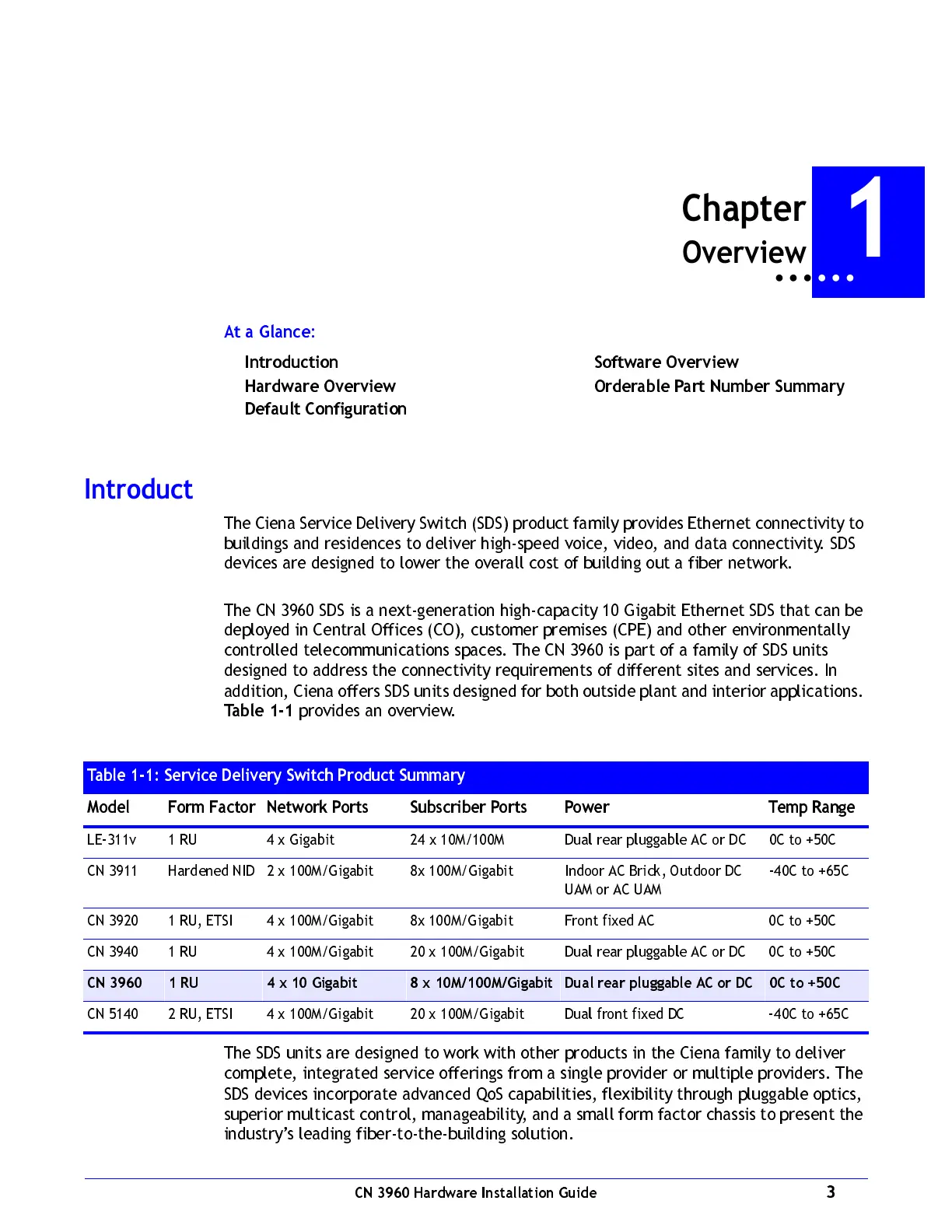

Chapter
Overview
At a Glance
:
Introduction
The Ciena Service Delivery Switch (SDS) product family provides Ethernet connectivity to
buildings and residences to deliver high-speed voice, video, and data connectivity. SDS
devices are designed to lower the overall cost of building out a fiber network.
The CN 3960 SDS is a next-generation high-capacity 10 Gigabit Ethernet SDS that can be
deployed in Central Offices (CO), customer premises (CPE) and other environmentally
controlled telecommunications spaces. The CN 3960 is part of a family of SDS units
designed to address the connectivity requirements of different sites and services. In
addition, Ciena offers SDS units designed for both outside plant and interior applications.
Table 1-1
provides an overview.
The SDS units are designed to work with other products in the Ciena family to deliver
complete, integrated service offerings from a single provider or multiple providers. The
SDS devices incorporate advanced QoS capabilities, flexibility through pluggable optics,
superior multicast control, manageability, and a small form factor chassis to present the
industry’s leading fiber-to-the-building solution.
•
Introduction
•
Hardw are O ve rview
•
Default Configuration
•
Software Overview
•
Or de rable Part Num be r Su m m ar y
Table 1-1: Service Delivery Switch Product Summ ary
Model Form Factor Netw ork P orts Subscriber P orts P ow er Temp Rang e
LE-311v 1 RU 4 x Gigabit 24 x 10M/100M Dual rear plug gable AC or DC 0C to +50C
CN 3911 Hardened NID 2 x 100M/Giga bit 8x 100M/Gigabit Indoor AC Brick, Outdoor DC
UAM or AC UAM
-40C to +65C
CN 3920 1 RU, ETSI 4 x 100M/Gigabit 8x 100M/Gigabit Front fixed AC 0C to +50C
CN 3940 1 RU 4 x 100M/Gigabit 20 x 100M/Gigabit Dual rear pluggable AC or DC 0C to +50C
CN 3960 1 RU 4 x 10 Gi gabit 8 x 10M/100M/Gigabit Dual rear pluggable AC or DC 0C to +50C
CN 5140 2 RU, ETSI 4 x 100M/Gigabit 20 x 100M/Gigabit Dual f ront fixed DC -40C to +65C
