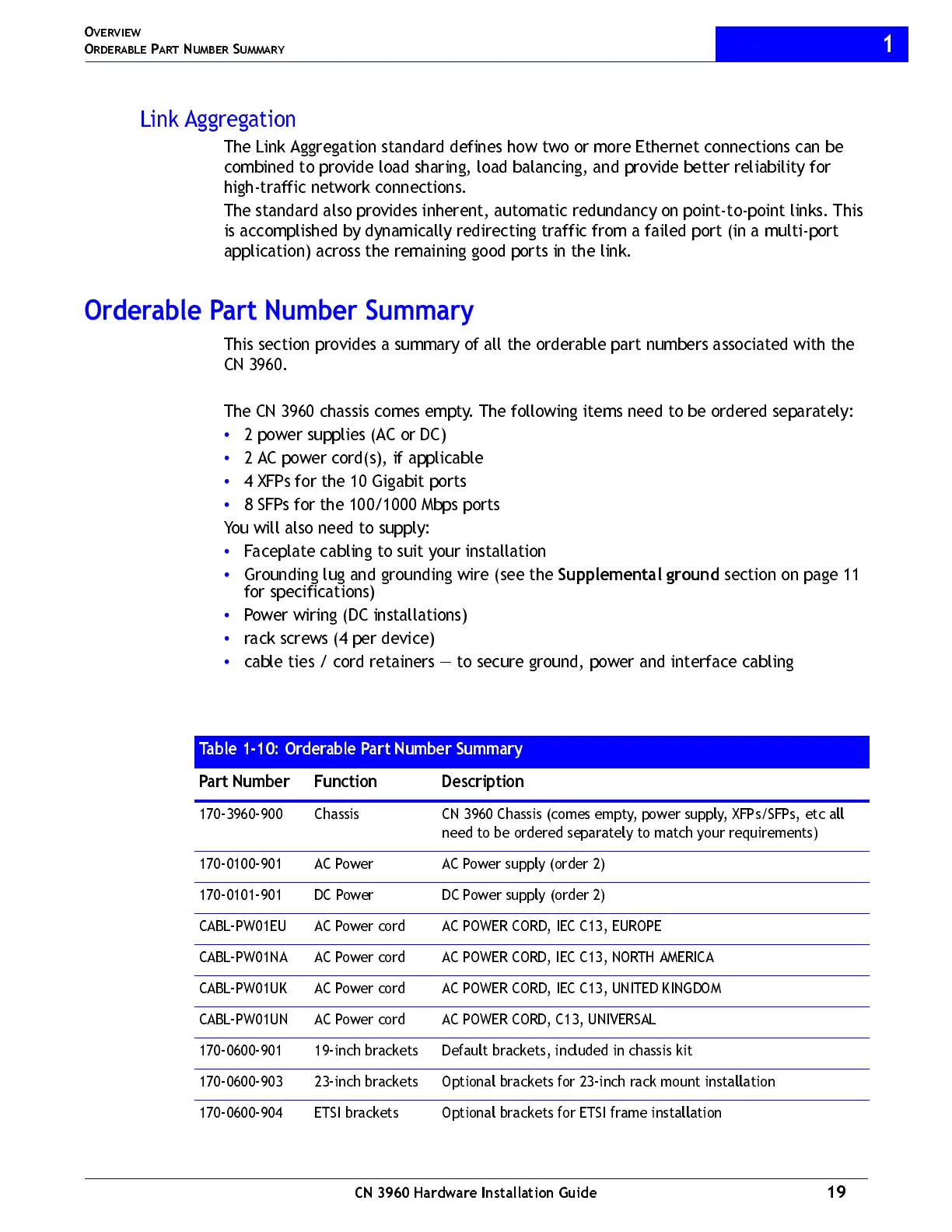

1
Link Aggreg at ion
The Link Aggregation standard defines how two or more Ethernet connections can be
combined to provide load sharing, load balancing, and provide better reliability for
high-traffic network connections.
The standard also provides inherent, automatic redundancy on point-to-point links. This
is accomplished by dynamically redirecting traffic from a failed port (in a multi-port
application) across the remaining good ports in the link.
Orderable Part Number Summary
This section provides a summary of all the orderable part numbers associated with the
CN 3960.
The CN 3960 chassis comes empty. The following items need to be ordered separately:
•
2 power supplies (AC or DC)
•
2 AC power cord(s), if applicable
•
4 XFPs for the 10 Gigabit ports
•
8 SFPs for the 100/1000 Mbps ports
You will also need to supply:
•
Faceplate cabling to suit your installation
•
Grounding lug and grounding wire (see the
Supplemental ground
section on page 11
fo r sp ec if ic at i o n s )
•
Power wiring (DC installations)
•
rack screws (4 per device)
•
cable ties / cord retainers — to secure ground, power and interface cabling
Table 1-10: Orderable Part Number Summary
P art Nu mb er Fu n ction Des cription
170-3960-900 Chassis CN 3960 Chassis (comes empty, power supply, XFPs/SFPs, et c all
need to be ordered sep arately to match your requirements)
170-0100-901 AC Power AC Power supply (order 2)
170-0101-901 DC Power DC Power supply (order 2)
CABL-PW01EU AC Power cord AC POWER CORD, IEC C13, EUROPE
CABL-PW01NA AC Power cord AC POWER CORD, IEC C13, NORTH AMERICA
CABL-PW01UK AC Power cord AC POWER CORD, IEC C13, UNITED KINGDOM
CABL-PW01UN AC Power cord AC POWER CORD, C13, UNIVERSAL
170-0600-901 19-inch bracket s Default br ackets, included in chassis kit
170-0600-903 23-inch brackets Optional brackets for 23-inch rack mount installation
170-0600-904 ETSI brackets Optional brackets for ET SI frame installation
