CN 3960 Hardware Installation Guide

Appendix

• • • • • •

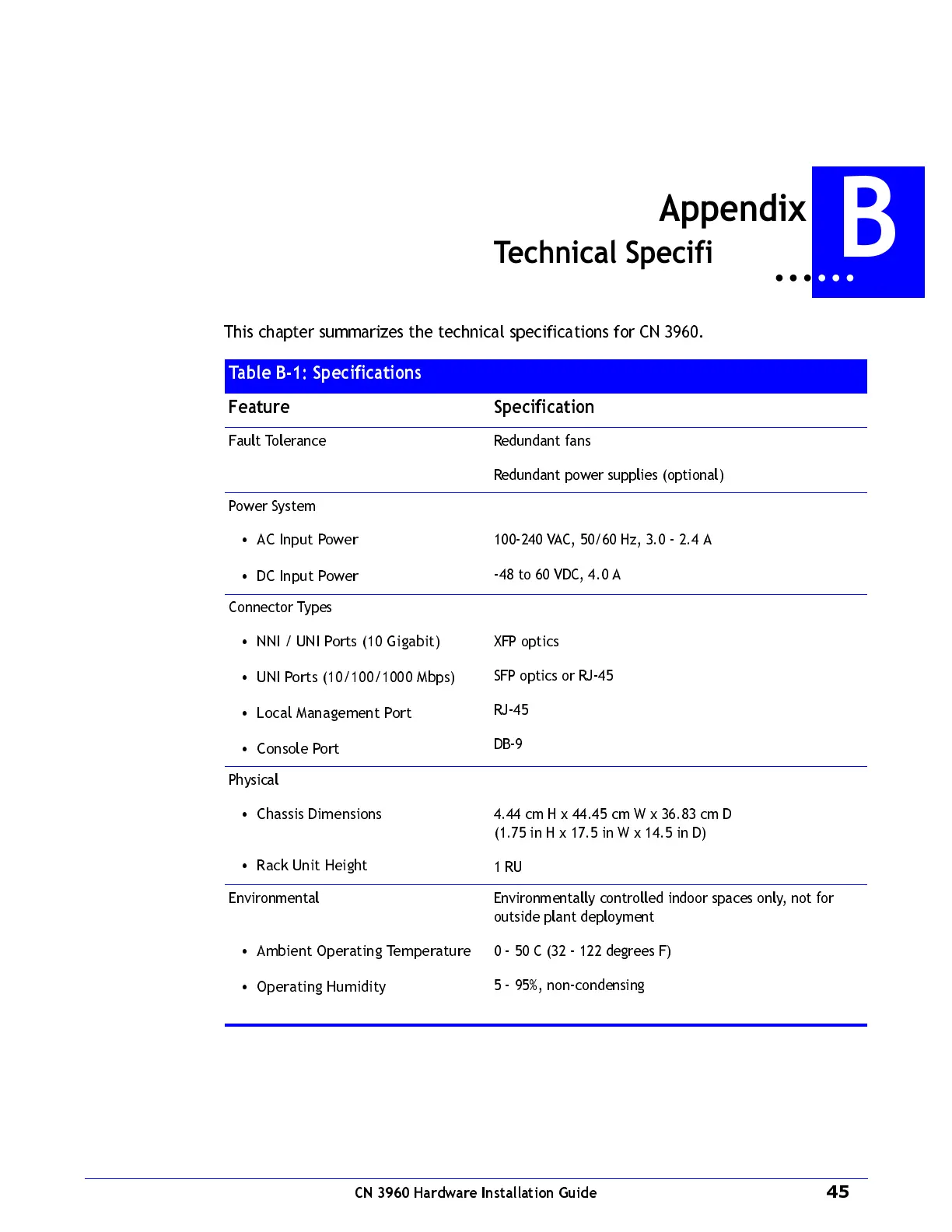

Technical Specifications

This chapter summarizes the technical specifications for CN 3960.

Table B-1: Specifications

Feature Specification

Fault Tolerance Redundant fans

Redundant power supplies (optional)

Power System

• AC Input P ower

• DC Input Power

100-240 VAC, 50/60 Hz, 3.0 - 2.4 A

-48 to 60 VDC, 4. 0 A

Connector Types

• NNI / UNI Ports (10 Gigabit)

• UNI Ports (10/100/1000 Mbps)

• Local Management Port

•Console Port

XFP optics

SFP optics or RJ-45

RJ-45

DB-9

Physical

• Chassis Dimensions

• Rack Unit Height

4.44 cm H x 44.45 cm W x 36.83 cm D

(1.75 in H x 17.5 in W x 14.5 in D)

1 RU

Environmental

• Ambient Operating Temperatur e

• Operating Humidity

Environmentally controlled indoor spaces only, not for

outside plant deployment

0 - 50 C (32 - 122 degrees F)

5 - 95%, non-condensing
