CE318-T Photometer
User Operation Manual
Revision V4.10 October 2021
9

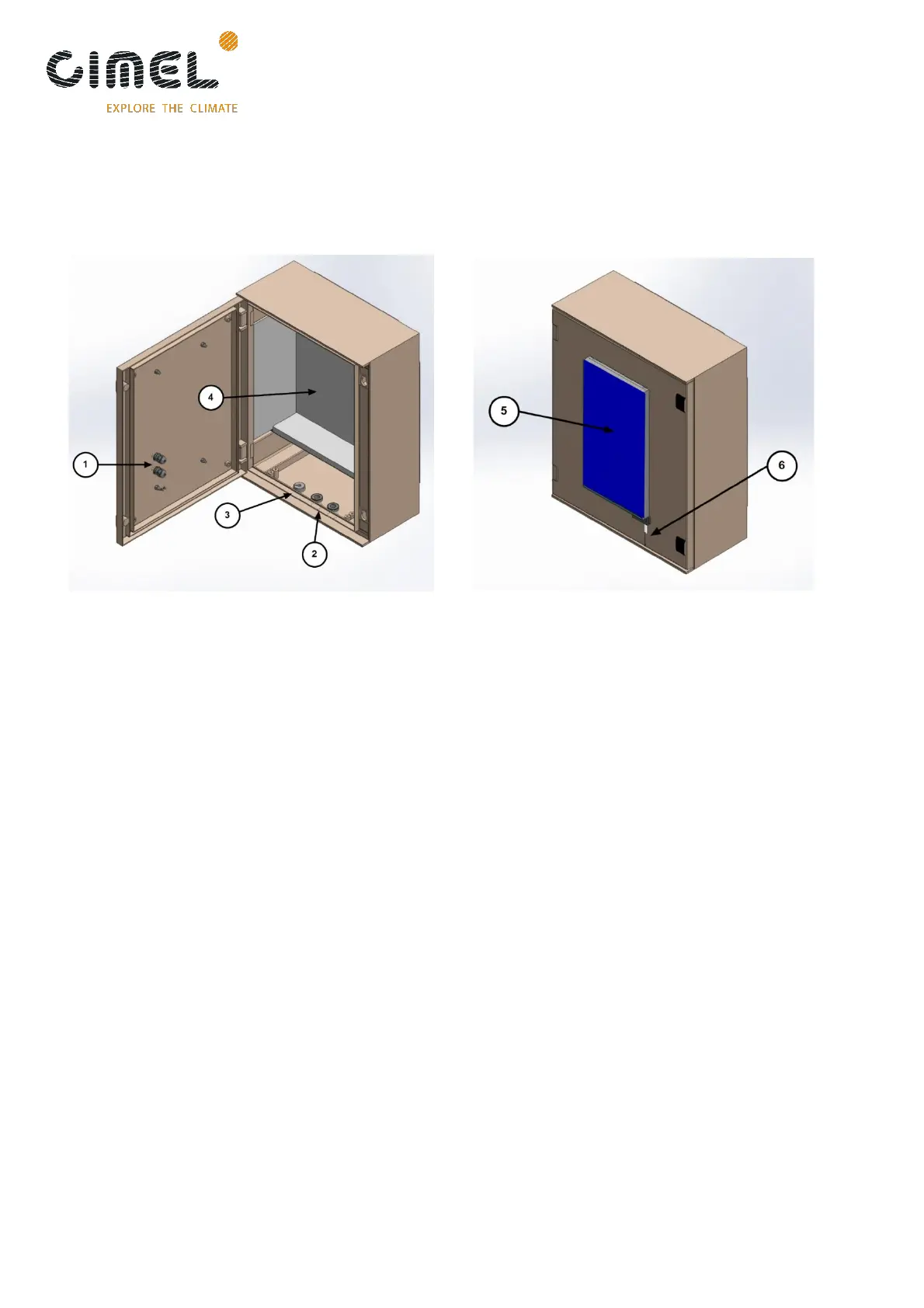

5. Protection case with solar panel
In order to isolate the CU and the batteries from external conditions they must be
placed inside the weatherproof case. The solar panel that powers the system is
incorporated in the case. The output plug of the solar panel is a RJ11 connector.
1: Cable gland. The wet sensor and solar panel wires will go through.
2: Cable gland. The robot and computer wires will go through
3: Cap. The sensor head cord will go through
4: Foam
5: Solar Panel
6: Wet sensor
