Satellite transmission installation and configuration
The satellite transmission of the data is done using a Satlink 2 logger and transmitter
model SL2-G312-1 and a YAGI antenna. The satellite which will receive and transmit
the data depends on the geographic location, it can be GOES, MSG… the satellite has
dedicated communication channel that can be attributed to the Satlink2.
First of all, to install properly the YAGI antenna, the azimuthal and polar angles
corresponding to the satellite the antenna will point to must be known.

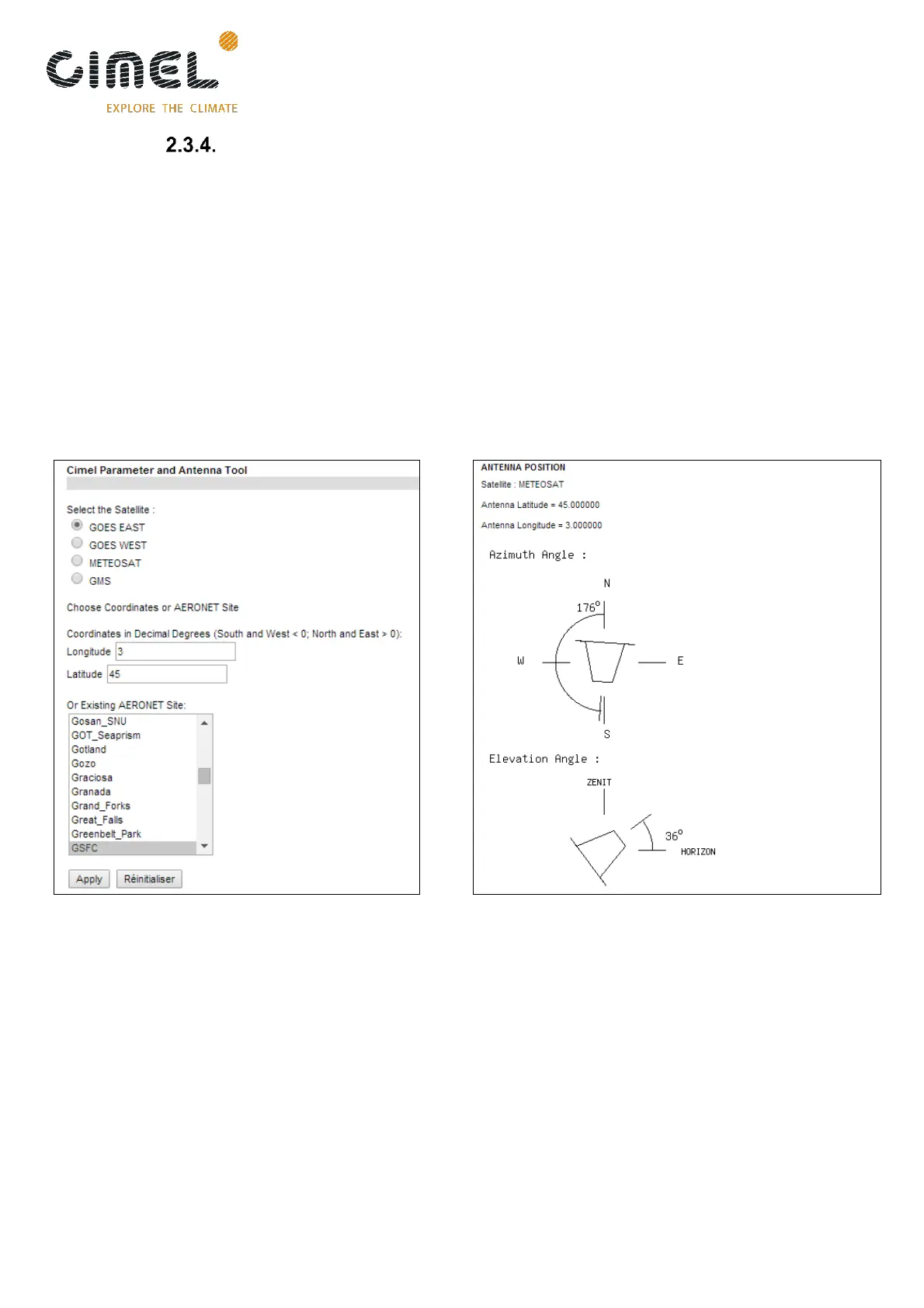

Choose the satellite the data will be sent to, the coordinates of the photometer’s
location and click apply. (Here is an example for longitude 3° and latitude 45°)
2.3.4.1. Transmitter and antenna installation
1. Attach the mast support in the ground.
2. Insert the mast into the mast support.
3. Tight the screws to fix properly the mast.
