CE318-T Photometer
User Operation Manual
Revision V4.10 October 2021
67

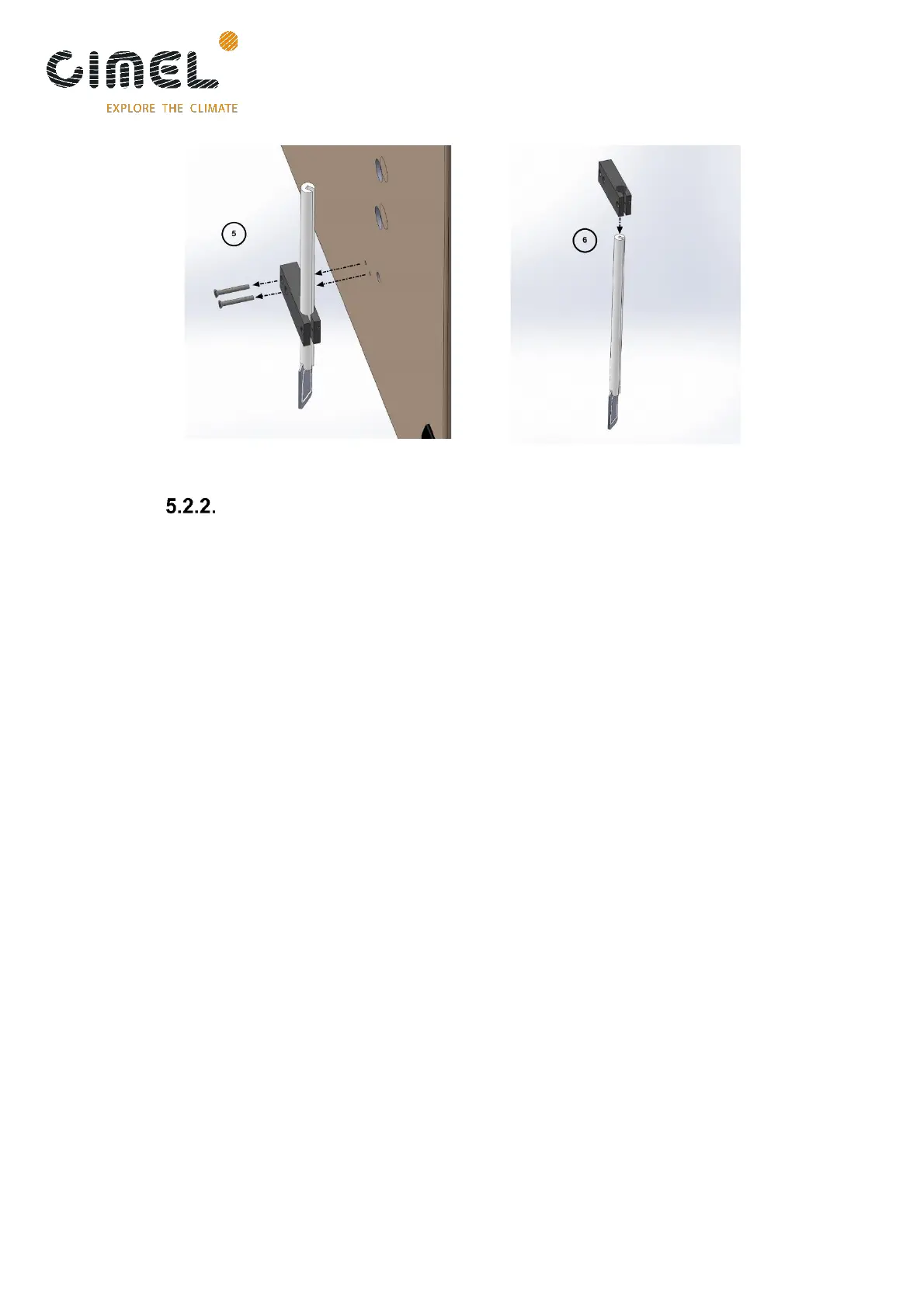

Robot levelling adjustment
After a PARK scenario, even if the spirit level is well-centered, it might happen that the
V-shape part of the robot is not perfectly horizontal. You can check with a leveler.
If the case happens:
1. Loosen the 2 hexagon socket screws.
2. Rotate the robot horizontal axis so that the V-shaped part is perfectly horizontal.
Check with the leveler.
3. Tighten the screws and check is the V-shape part is perfectly horizontal after
having launched a PARK scenario.
