CE318-T Photometer
User Operation Manual
Revision V4.10 October 2021
37

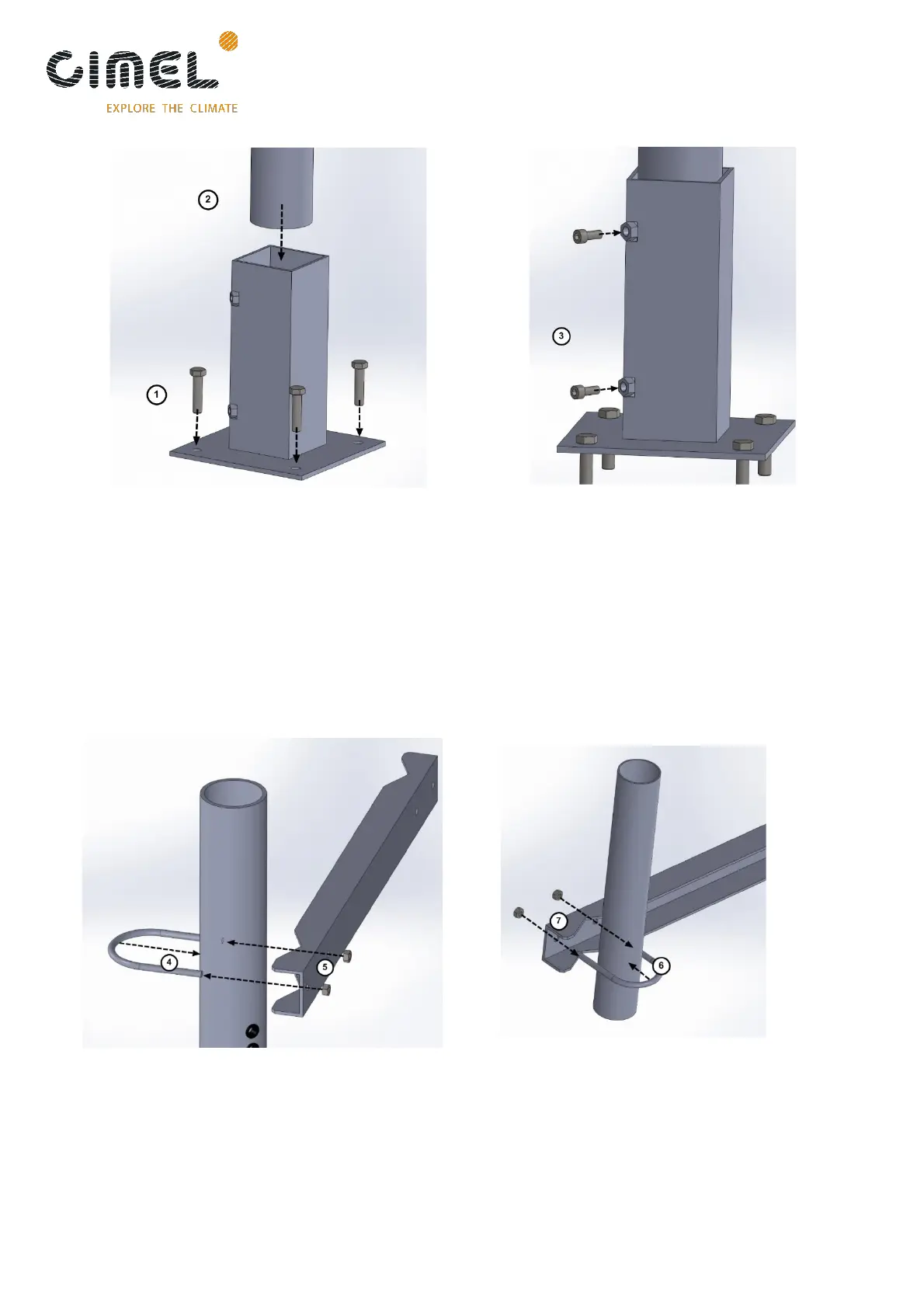

4. Slide the stirrup through the mast until it gets to the end position.
5. Insert the V-shaped part in the stirrup extremities with the mast in between
and tight strongly the nuts.
6. Insert the stirrup extremities in the V-shaped part with the tubular metallic
part in between to fix it.
7. Tight the 2 nuts.
8. Insert the YAGI antenna support in the
stirrups with the tubular metallic part in between. Orientate the support to the
right angle on the azimuthal plan.
