CE318-T Photometer
User Operation Manual
Revision V4.10 October
2021

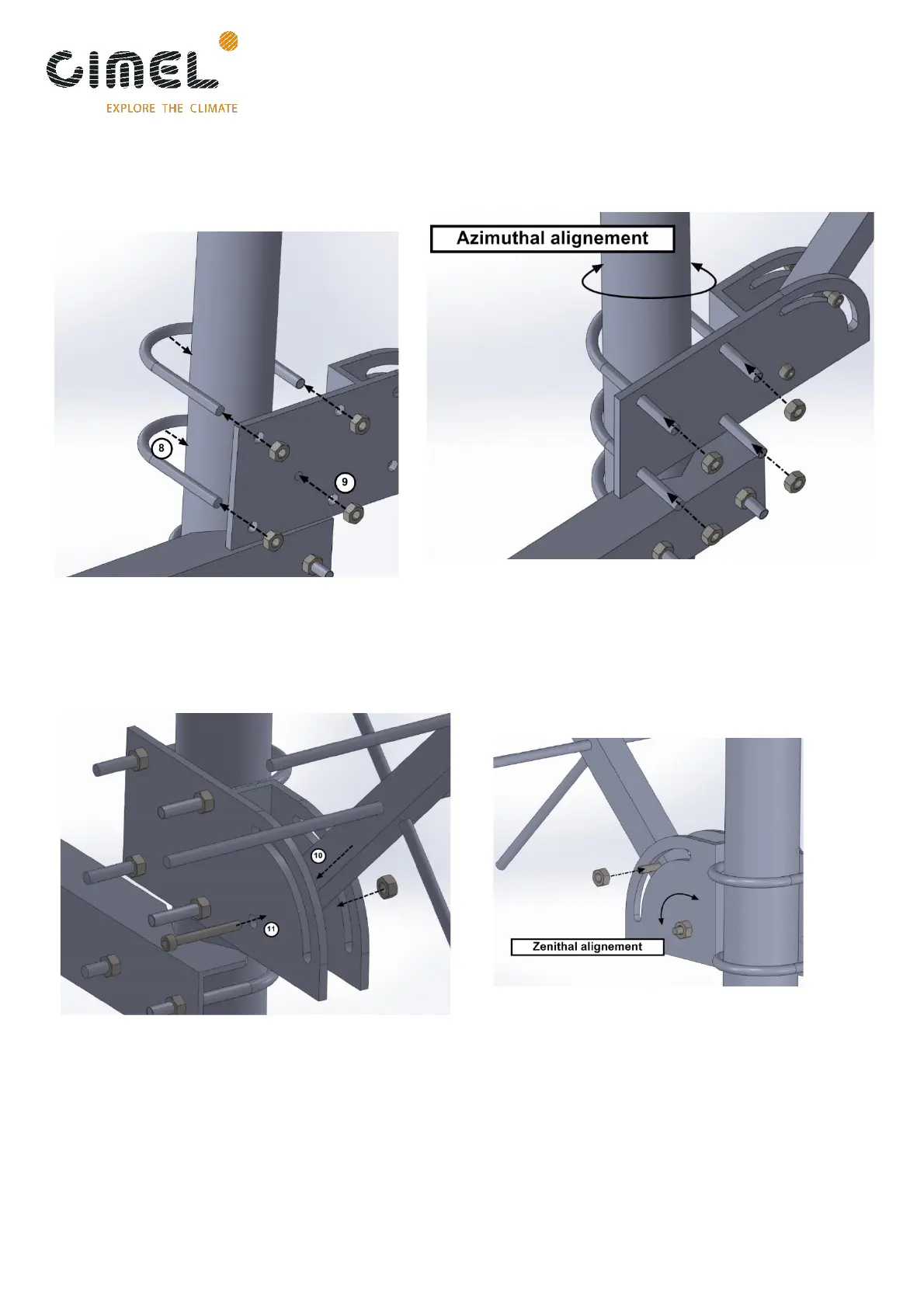

38
9.
Tight the 4 nuts.
10.
Insert
the
YAGI
an
tenna
into
its
support.
Orientate
the
antenna
to
the
right
polar angle.
11.
Insert
the
screw
in
both
the
YAGI
antenna
support
and
the
Antenna
and
tight
the nut to the opposite side.
12.
Insert the 2 white screws into the V-shaped part.
13.
Put the white screws around the mast.
38
40
Table of Contents
Table of Contents
3
Product Overview
5
Presentation
5
System Components Quick Description
6
Sensor Head Types
14
Data Transmission
16
Installation
16
Installation Site Recommendations
16
Hardware Installation and Setup
16
Needed Tools
17
Tripod Mounting
17
Case Mounting
19
Robot and Sensor Head Mounting
20
Optional Pyranometer Global Radiation Sensor
29
Communication Protocol Installation and Setup
30
RS232 Communication
30
USB Communication
31
Communication over GPRS
32
Satellite Transmission Installation and Configuration
37
Control Unit Firmware Update
43
Control Unit Navigation Menu
43
Capacitive Key Functions
43
Switch on / Switch off / Standby
43
Menu Description
44
Scenarios
44
Measures
46
Memory
46
Settings
47
Date
49
Cimel
49
Info
50
General Description of the Scenarios and Their Sequence
50
Scenario Description and Sequencing
50
Group of Measurement Scenarios
60
Day and Night Measurement Schedule in Auto Mode
61
Standard (CE318-TS9) and Polarized (CE318-TP9)
61
BRDF (CE318-TU9) and BRDF 12 Filters (CE318-TU12)
63
Seaprism (Ce318-Tv12)
63
Polarized (CE318-TP9)
63
Execution Time of Scenario
64
On-Site Maintenance
65
Weekly Check Preventive Maintenance
65
Corrective Maintenance
66
Solar Panel and Wet Sensor Replacement
66
Robot Levelling Adjustment
68
Flash Memory Formatting
69
Factory Calibration and Maintenance
70
Sensor Head Calibration and Maintenance
70
Calibration
70
Maintenance
70
Robot Maintenance
71
Troubleshooting
71
Communication and Data Transfer Is down
71
Using Serial Port Transfer Protocol
71
Using Satellite Transmitter
72
Robot Errors
72
Battery Low
73
GPRS - Communication Errors
73
GPRS Errors
74
FTP Communication Errors
75
HTTP(S) Communication Errors
75
Frequently Asked Questions (FAQ)
75
Technical Specifications
77
General
77
Dimensional Drawings
78
10 After-Sales Service and Customer Relations
86
11 Annexes
87
Packing List
87
AERONET Network (FAQ)
89
What Is the AERONET Network
89
How to Enter It
89
What to Do When There Is a "Bad Sun Tracking
89
What to Do When There Is a "Ingaas / Silicon Discrepancy
90
What to Do When There Is a "High Dark Current
90
What to Do When There Is Constant Humidity
91
What to Do with a Dissymmetric Almucantar
91
