CE318-T Photometer
User Operation Manual
Revision V4.10 October 2021
7
b. Collimator
The collimator is a component that enables the light to be guided correctly to the
sensor head outside lenses. The collimator helps to reduce the stray light.

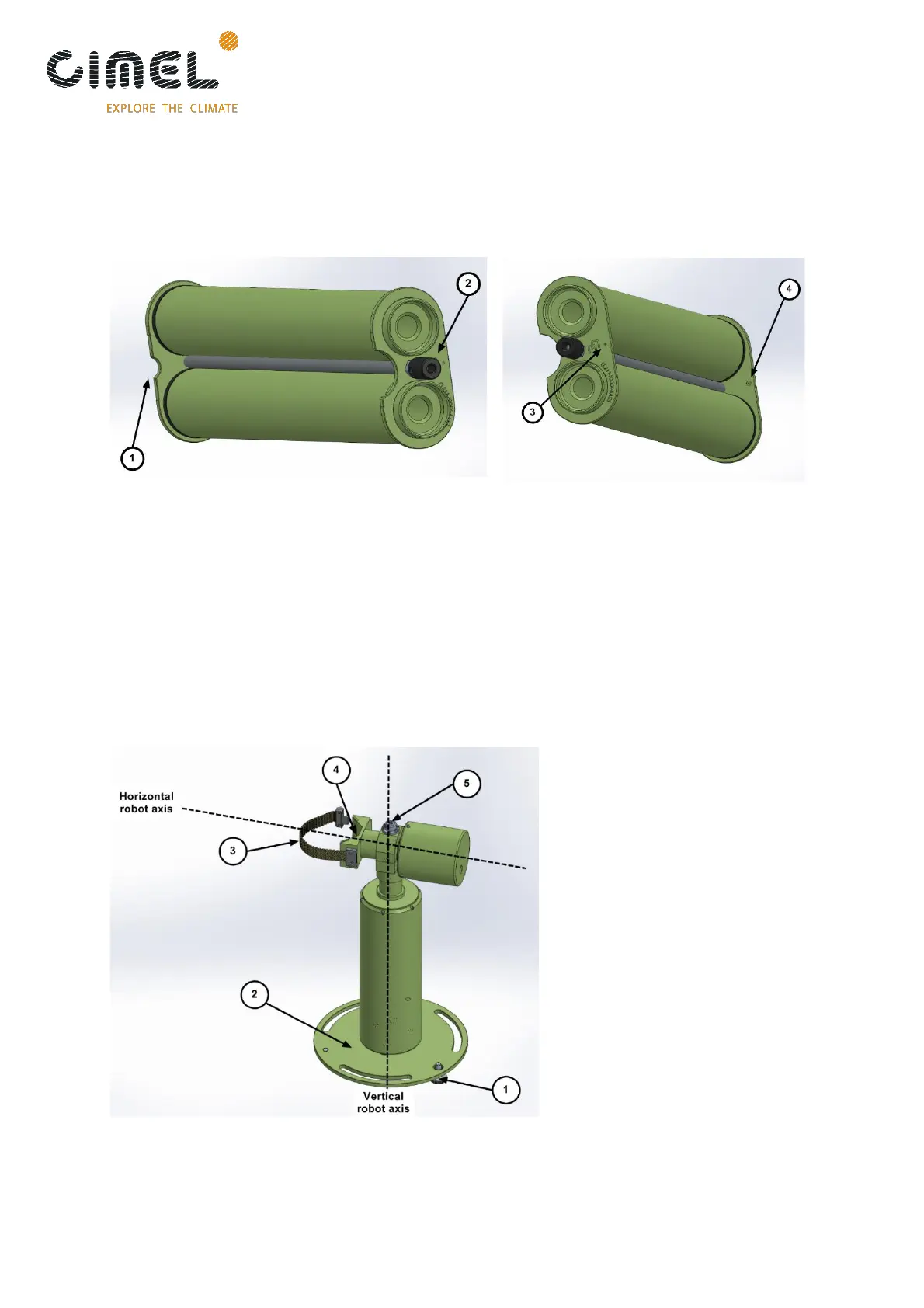

1: notch 2: tightening screw 3: alignment hole 4: spot
3. Robot
The robot is the component on which the sensor head is attached. Its mechanical
design enables it to point on whole directions of the sky on the azimuthal and polar
(zenith) angles with a very high accuracy.
It is controlled through 2 cables (with RJ11 connectors), one for each axis.
1: adjustment wheel (X2)
2: robot base
3: strap
4: V-shaped part and
positioning notches
5: spirit level
