22

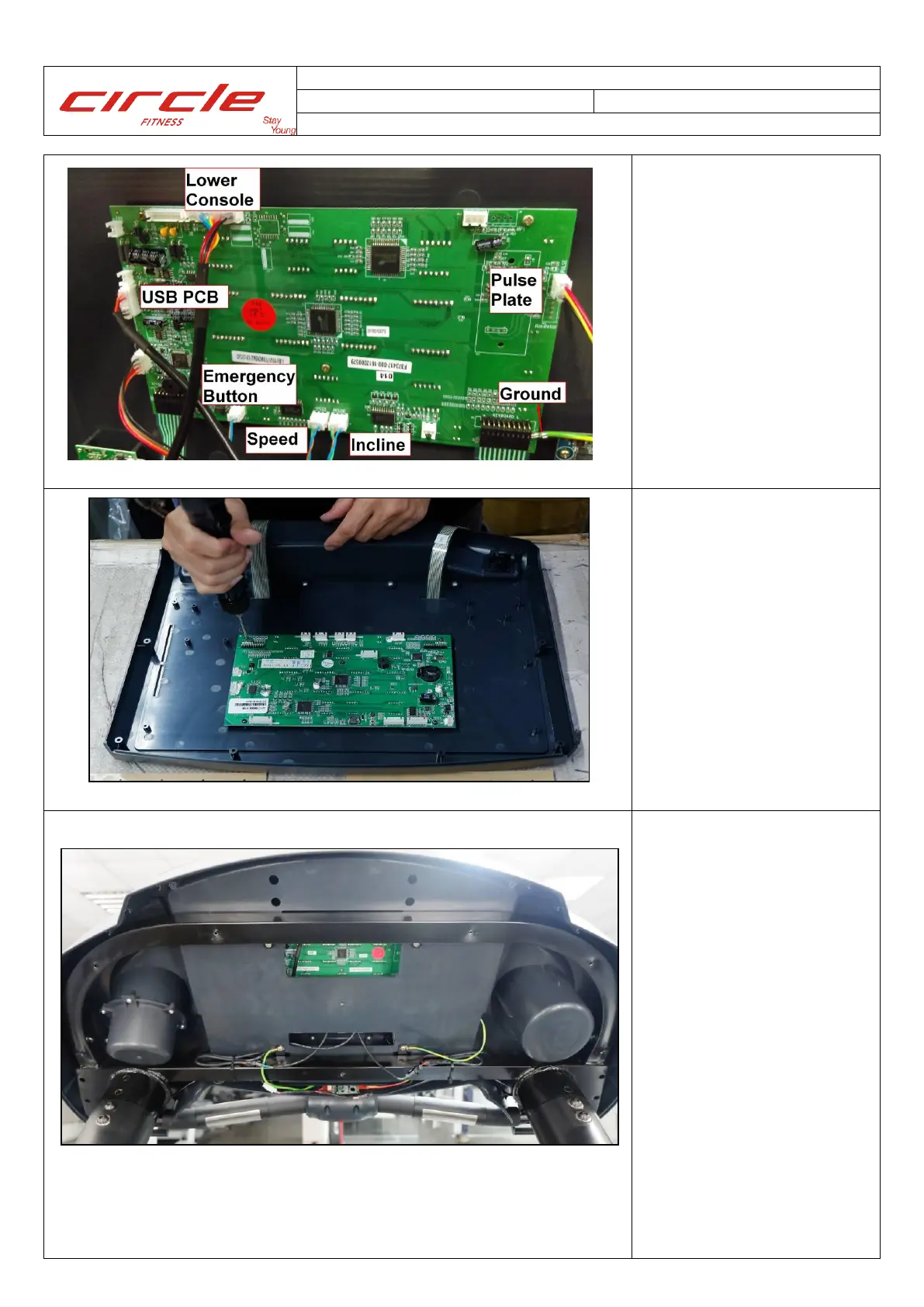

STEP 4:
Unplug the cables,
wires, and flexible flat
cable of membrane on
PCB of Console.
STEP 5:
Remove the mounting
screws on PCB and
replace the New PCB
on right position.
Secure the mounting
screws on PCB and
plug the Flexible flat
cable back on PCB
STEP 6:
Plug the cables and
wires on PCB of
Console and put the
Upper Console Cover
back.
Secure the 6 mounting
screws under the Upper
Console Cover to
assemble.
Put the Lower Console
Cover back and secure
the 9 screws for
complete.
