4. INVERTER INFORMATION AND EXTERNAL CONTROL
4.1. External control Key Pad usage:

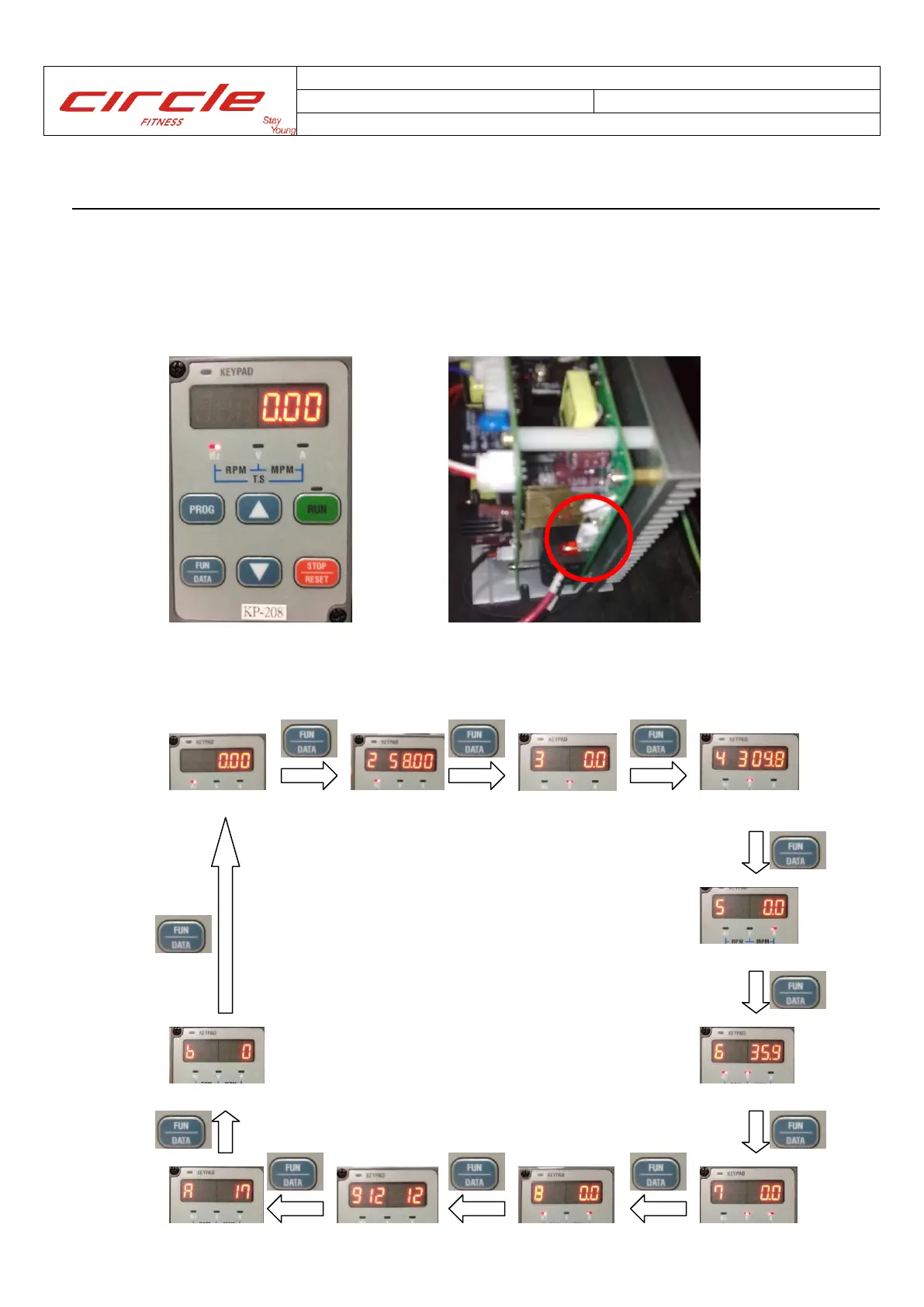

4.1.1. External control Key Pad appearance (KP-208) and connection.
4.1.2. Monitor mode and operation:
Output frequency
Frequency setting
Output voltage
PN Voltage
Output current
void
void
void
Incline setting
void
void
