CIRCLE M7 - Console PCB

Document: Service Manual
Description: Treadmill
Model: M7 LED
Page: 5 of 60
5

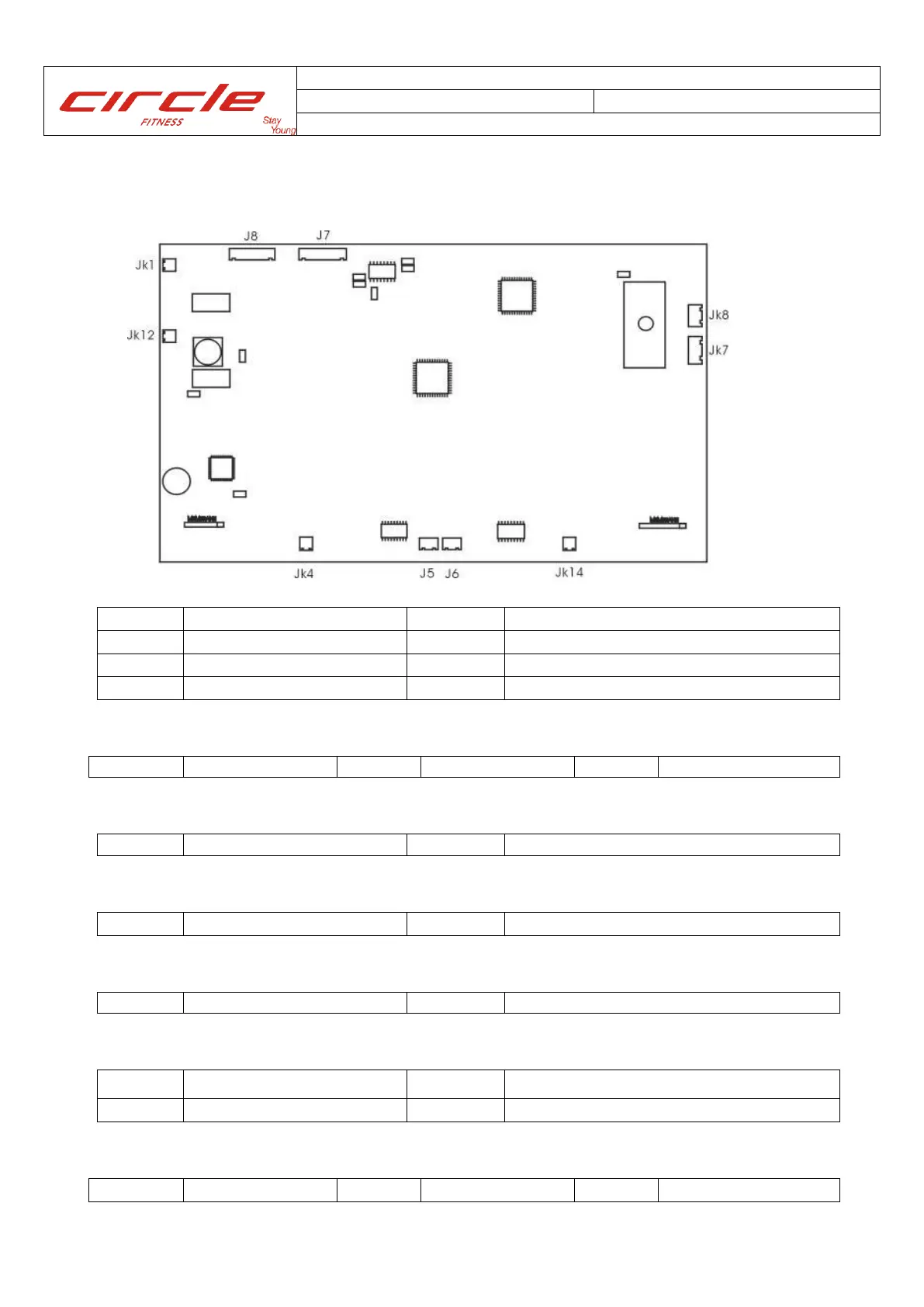

1.2 Console PCB
Console communication wire (J7)
P1
(RS485)DX+ / TXD(RS232)
P5
12V
P2
(RS485)DX- / RXD(RS232)
P6
G12(GND)
P3
EXG
P7
SAFETY KEY
P4
WK_UP
Wireless receiver (Jk8)
P1
sensor input
P2
VCC
P3
GND
SAFE KEY (Jk4)
P1
Driver EN
P2
VDD
STOP key (Jk14)
P1
KeyBoard (S5)
P2
KeyBoard (D2)
FAN (Jk1)
P1
PWM 0~12V
P2
VDD
Hand Pulse (Jk7)
P1
Left reference electrode
P3
Right signal electrode
P2
Left signal electrode
P4
Right reference electrode
Quick shift - SPEED (J5)
P1
SPD +
P2
COM
P3
SPD -
