CIRCLE M7 - Inverter

Document: Service Manual
Description: Treadmill
Model: M7 LED
Page: 6 of 60
6
Quick shift - INCLINE (J6)
P1
INC+
P2
COM
P3
INC-
MEMBRANE (KEYBOARD L)
Left (10P)
1(S1)
2(S2)
3(S3)
4(S4)
5(S5)
6(D1)
Target
Strength
1
6
Reset/Clear
7(D2)
Rolling
Interval
2
7
X
8(D3)
Valley
Random
3
8
X
9(D4)
Fat Burn
Fitness Test
4
9
X
10(D5)
Ramp
H.R.C
5
0
Enter
MEMBRANE (KEYBOARD R)
Right (8P)
1(S6)
2(S7)
3(S8)
4(S9)
5(D6)
Inc 8
Spd 4
Cool Down
Inc Up
6(D7)
Inc 6
Spd 6
Fan
Inc Down
7(D8)
Inc 4
Spd 8
Stop
Spd -
8(D9)
Inc 2
Spd 10
Start
Spd +

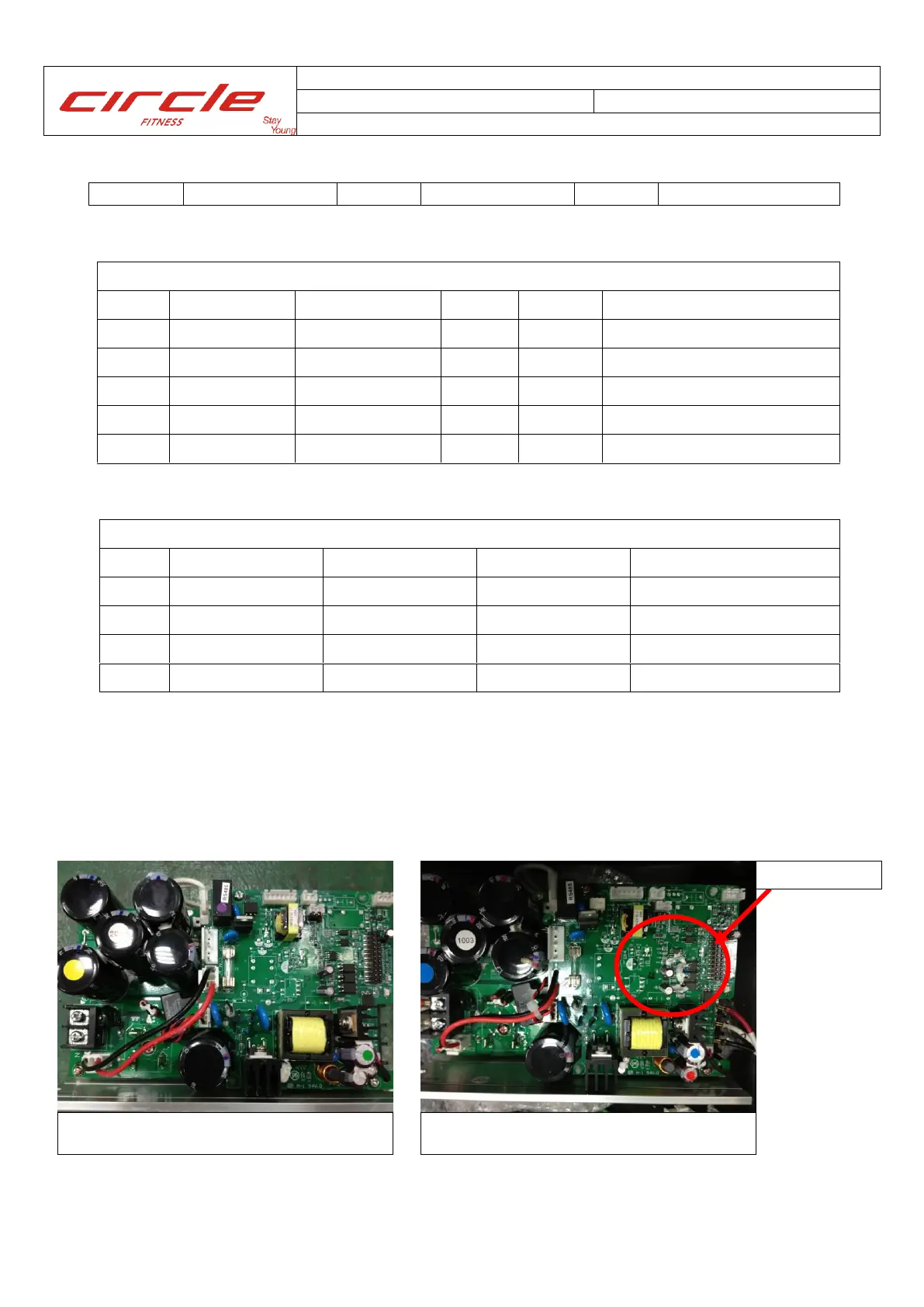

1.3 Inverter
※ Please replace to new version inverter if it is a old version one.
Old version inverter
New version inverter
With resistors
