CIRCLE M7 - Running Belt Replacement

Document: Service Manual
Description: Treadmill
Model: M7 LED
Page: 28 of 60
28
5.5. Running Belt Replacement

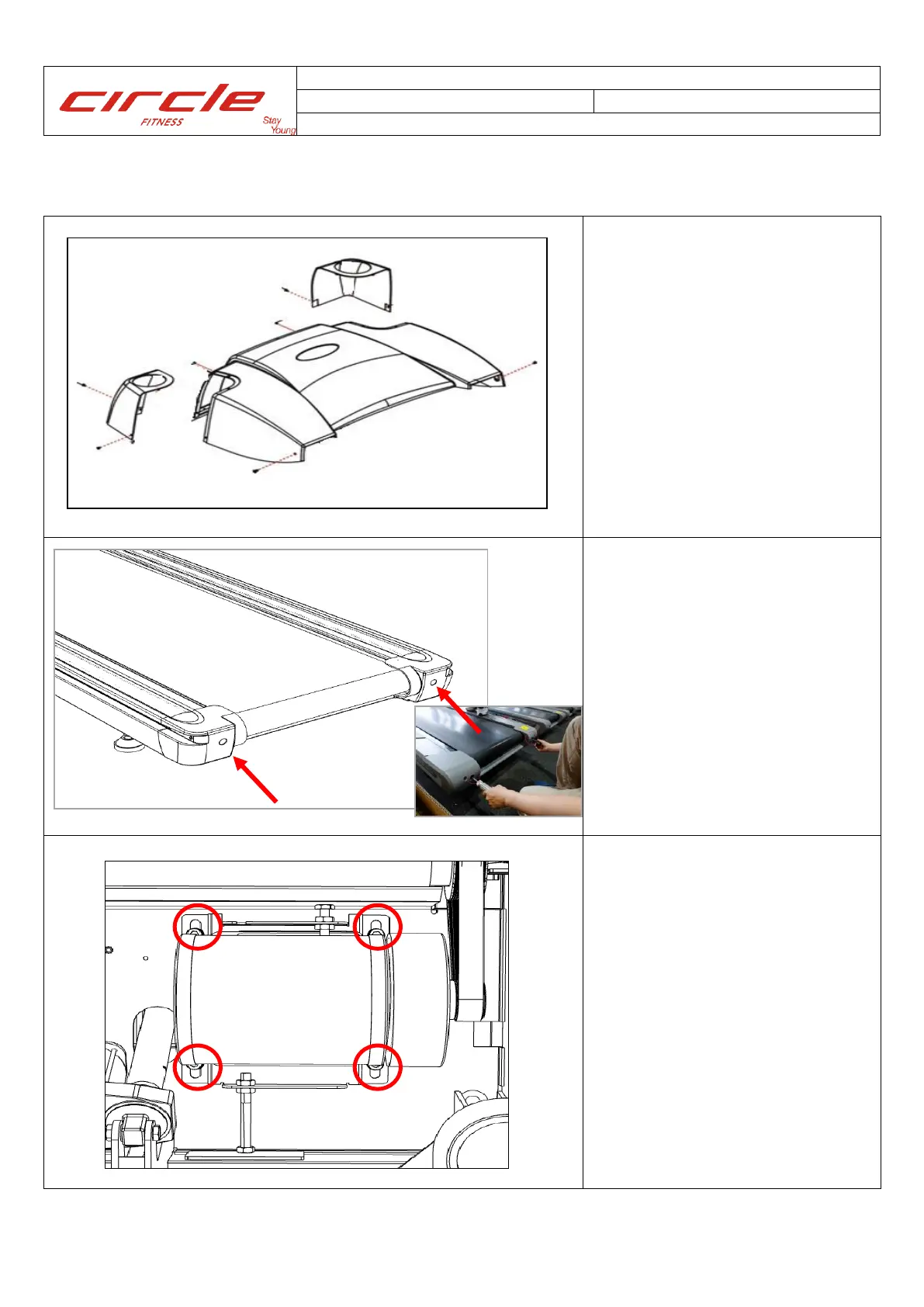

STEP 1:
Remove the Motor Covers by
loosing 4 screws.
Remove the 4 screws on
Right & Left console mast
via screwdriver.
STEP 2:
Loosen 2 Tension screws on
the rear roller via Allen
wrench.
Caution: Don’t remove the
Tension Screws from
Treadmill.
STEP 3:
Release 4 motor mounting
screws on motor plate via
M8 wrench.
